Initial Inspection and Diagnostic Overview

- Measure voltage between each terminal and terminal (8) by following "Shift Lock Control Module Inspection Table".

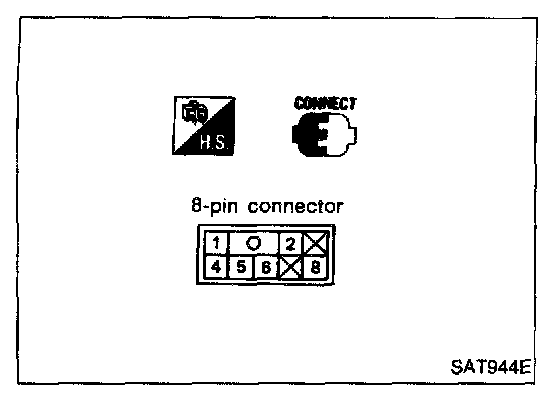

- Pin connector terminal layout.

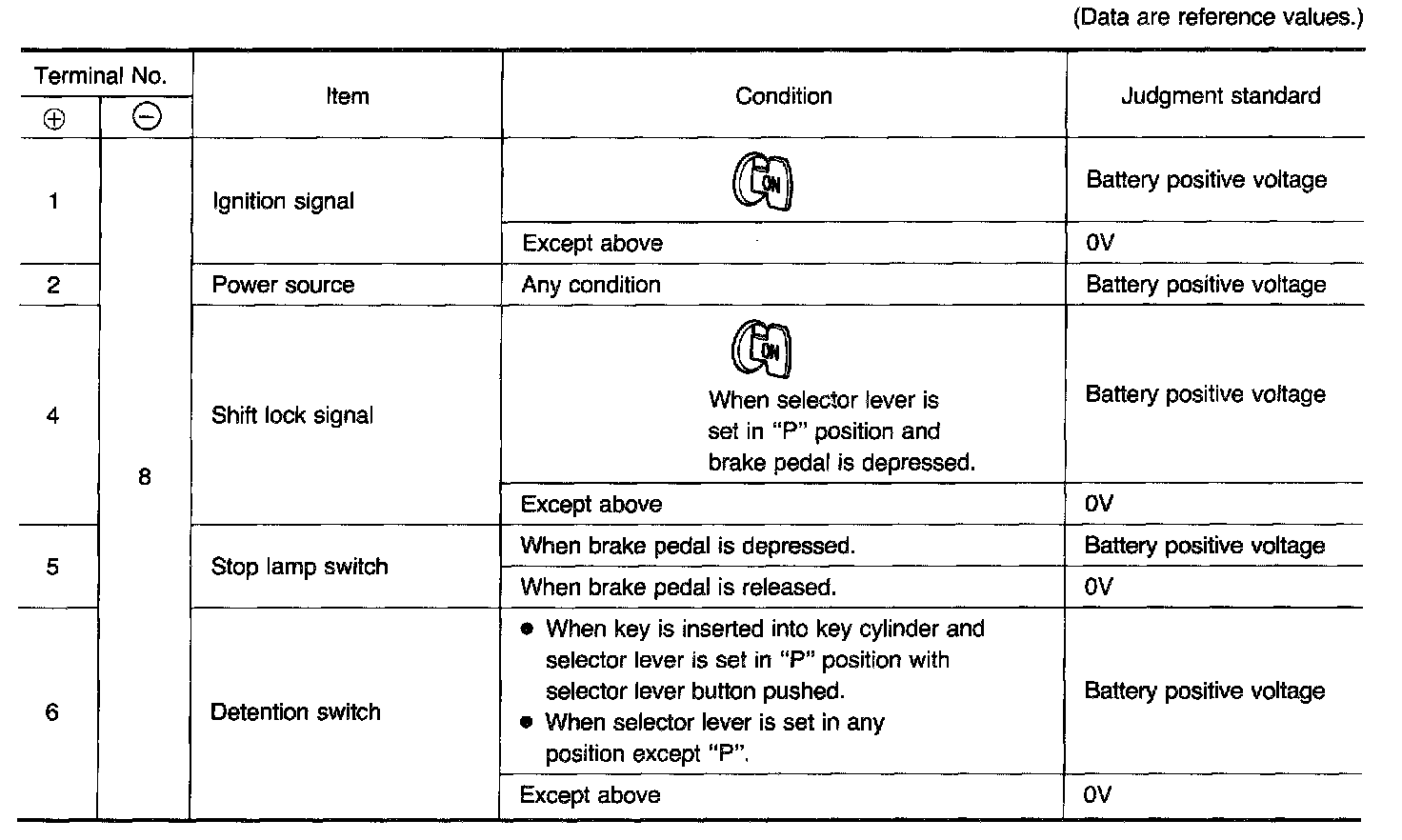

Shift Lock Control Module Inspection Table

Shift Lock Control Module Inspection Table:
