Control Valve Assembly and Accumulator

Control Valve Assembly and Accumulator

REMOVAL




1. Drain ATF from transaxle.
2. Remove oil pan and gasket.

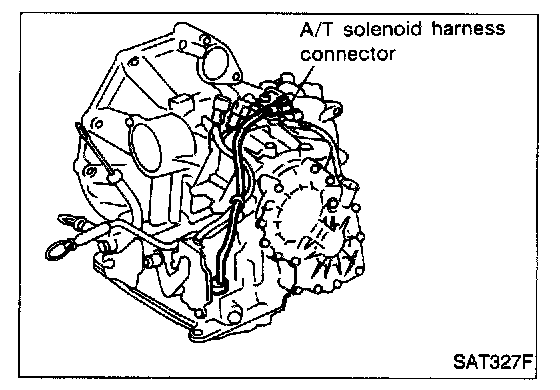

3. Disconnect A/T solenoid harness connector.

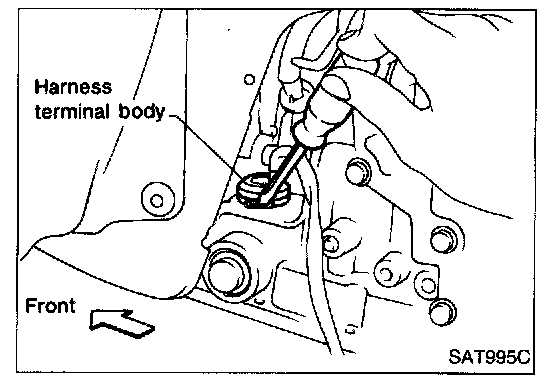

4. Remove stopper ring from A/T solenoid harness terminal body.
5. Remove A/T solenoid harness from transmission case by pushing on terminal body.




6. Remove control valve assembly by removing fixing bolts.

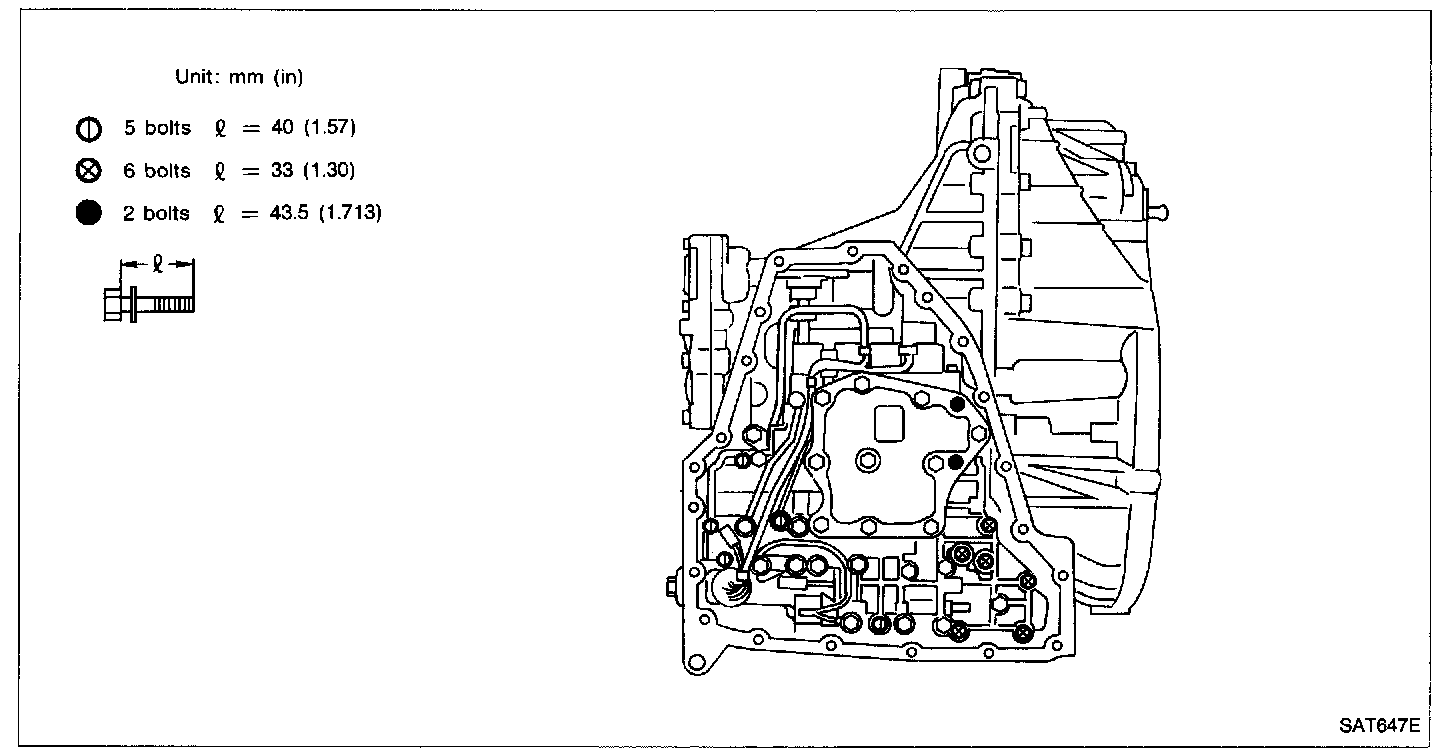

Bolt length, number and location are shown in the illustration.
Be careful not to drop manual valve and 3-R accumulator return spring.
7. Disassemble and inspect control valve assembly if necessary.




8. Remove 3-R and N-D accumulators by applying compressed air if necessary.
- Hold each piston with a rag.

INSTALLATION

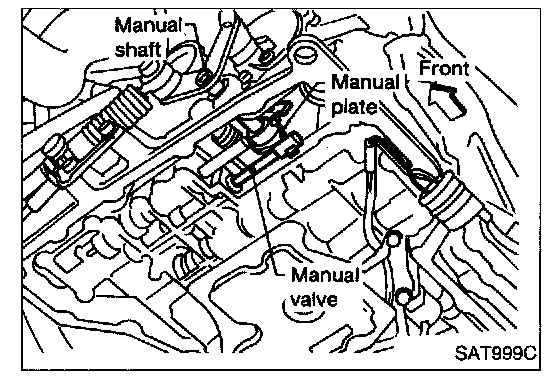

- Set manual shaft in Neutral, then align manual plate with groove in manual valve.
- After installing control valve on to transmission case, make sure that selector lever can be moved to all positions.
