Reduction Gear
Turning torqueTurning torque of reduction gear 0.05 - 0.39 N.m (0.5 - 4.0, 0.43 - 3.47 kg-cm, in-lb)

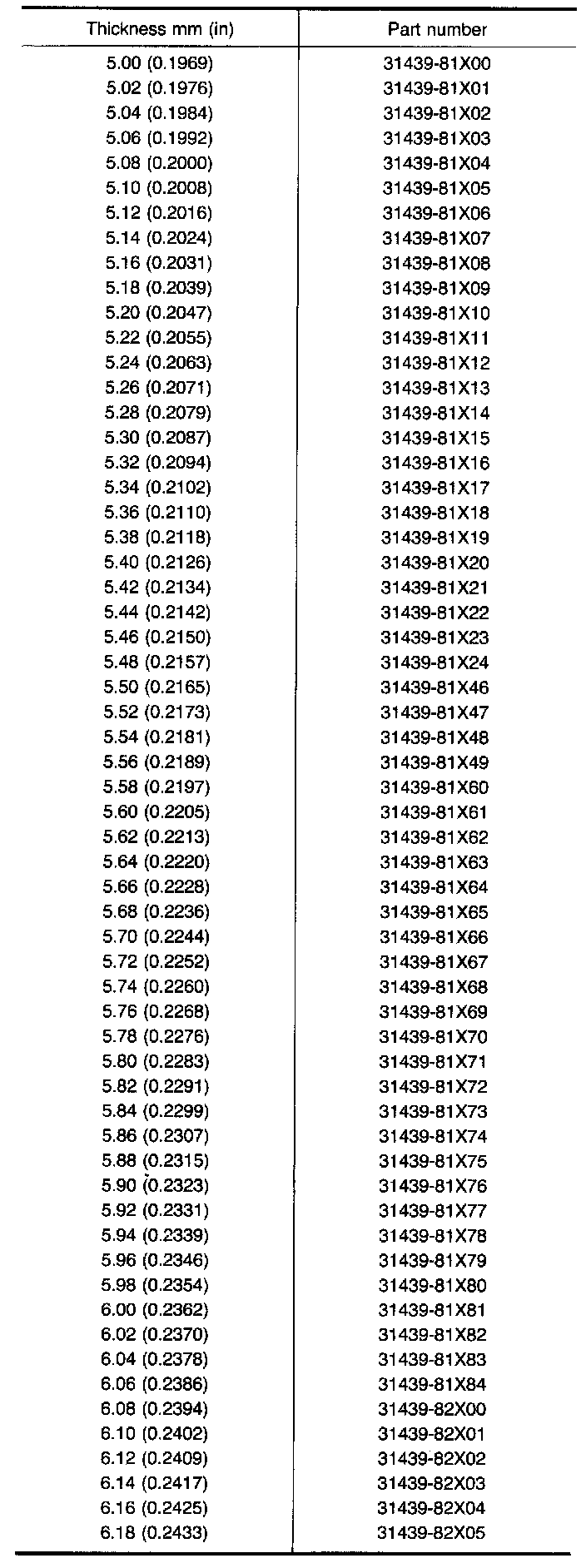

Reduction Gear Bearing Adjusting Shims Part 1:
Reduction Gear Bearing Adjusting Shims Part 2:
Reduction gear bearing adjusting shims
Turning torque of reduction gear 0.05 - 0.39 N.m (0.5 - 4.0, 0.43 - 3.47 kg-cm, in-lb)
Reduction gear bearing adjusting shims
