SRS COLLISION INSPECTION PROCEDURES:

On vehicles which have experienced an air bag system deployment, certain SRS components must be replaced. To determine which components require replacement check the SRS components using the table shown.

- If any SRS components are showing any visible damage such as dents, cracks of deformation, replace them with new ones.


To repair the SRS "AIR BAG", perform the following steps.

(1) Check the control module (diagnostic module).

- Connect CONSULT and then erase the memory. (However, the memory may not be cleared.)

OR

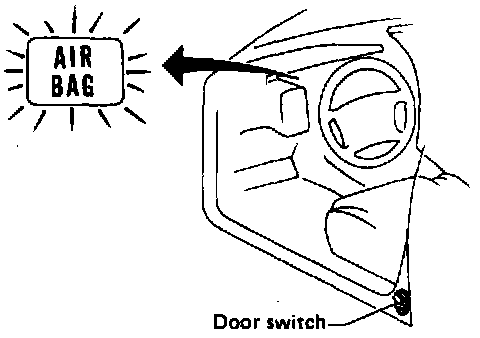

- Check "AIR BAG" warning lamp and perform the following twice: turn driver's door switch ON and OFF 5 times within 7 seconds after ignition switch turned "ON".

If "AIR BAG" warning lamp comes on continuously.

Replace the control module.

(2) Remove the deployed air bag module.

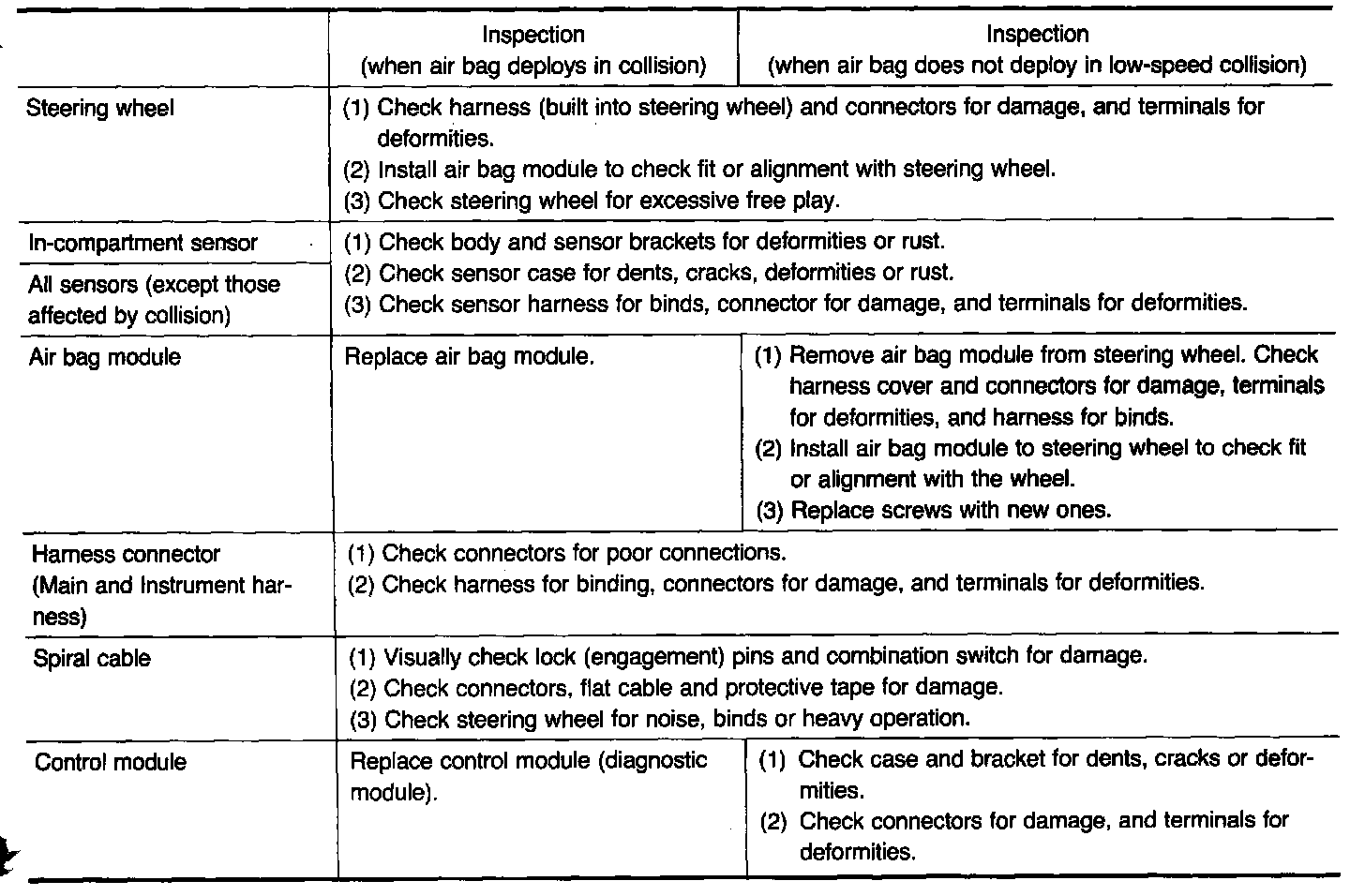

(3) Check SRS components using the table shown above:


(4) Conduct self-diagnosis using CONSULT or "AIR BAG" warning lamp to ensure entire SRS operates properly except open circuit of air bag module.

(5) Install new air bag module.
