Neutral Start Relay (Inhibitor Relay)
>>
Testing and Inspection
>>
Without Cruise Control
Without Cruise Control

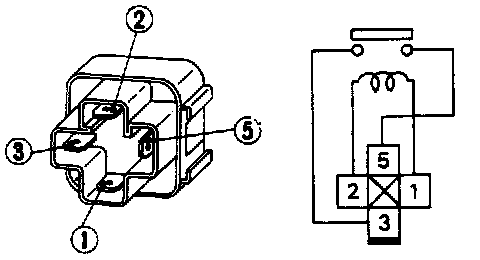

Relay Testing:
Check for continuity between terminals 3 and 5:
^
12VDC applied to terminals 1 and 2: Continuity
^
NO current applied: No Continuity
Replace the relay if it fails the above test.
