Neutral Start Relay (Inhibitor Relay)
>>
Testing and Inspection
>>
With Cruise Control
With Cruise Control

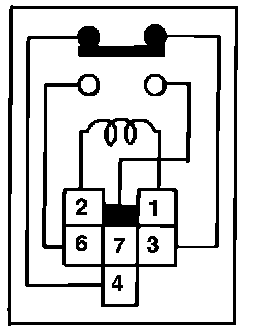

Inhibitor Relay Test:
Check continuity between terminals 6 and 7:
^
12VDC supplied to terminals 1 and 2: Continuity
^
No current supplied: No Continuity
Replace the relay if it fails the above test.
