Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams - A/T
Wiring Diagrams - A/T

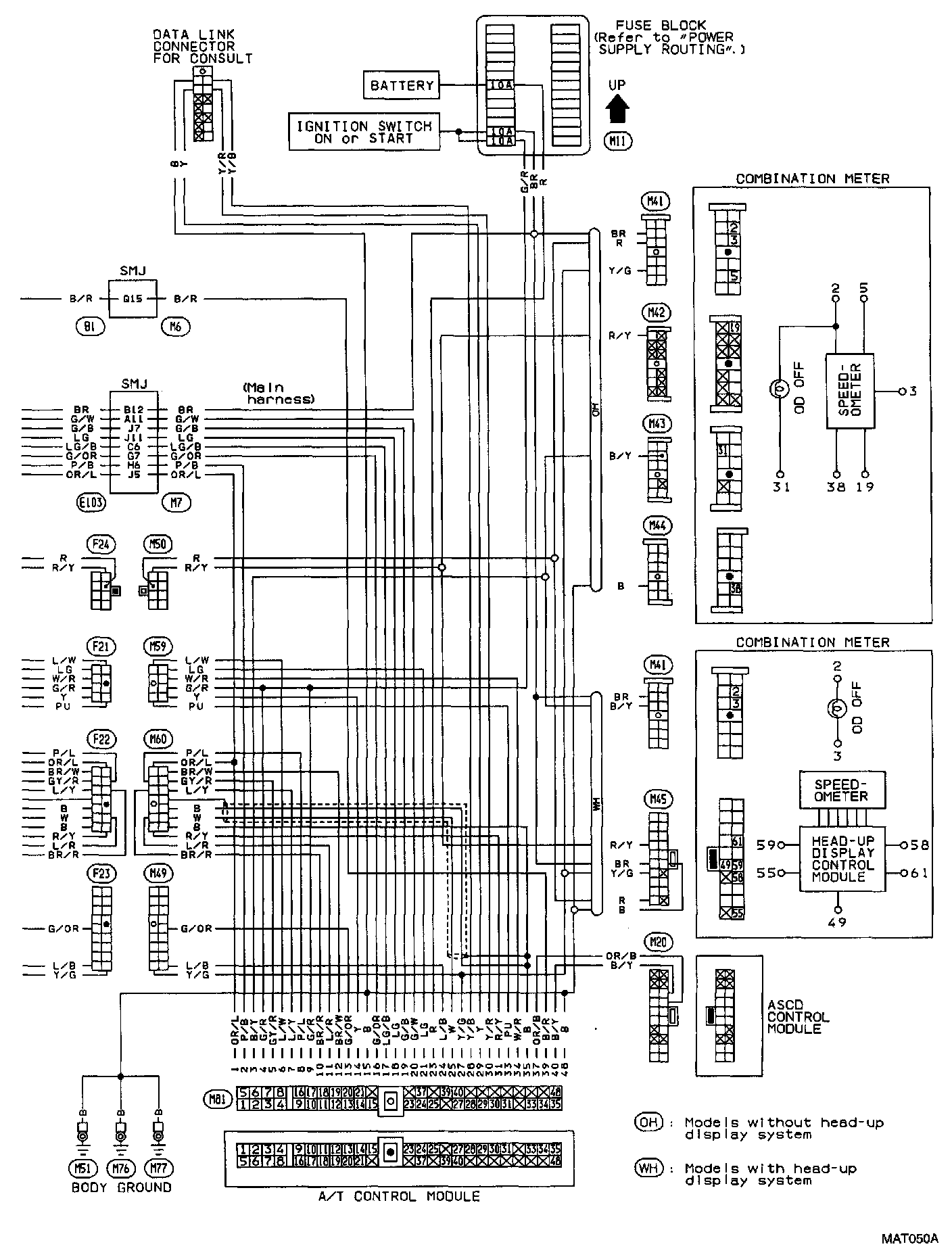

Wiring Diagram Part 1:

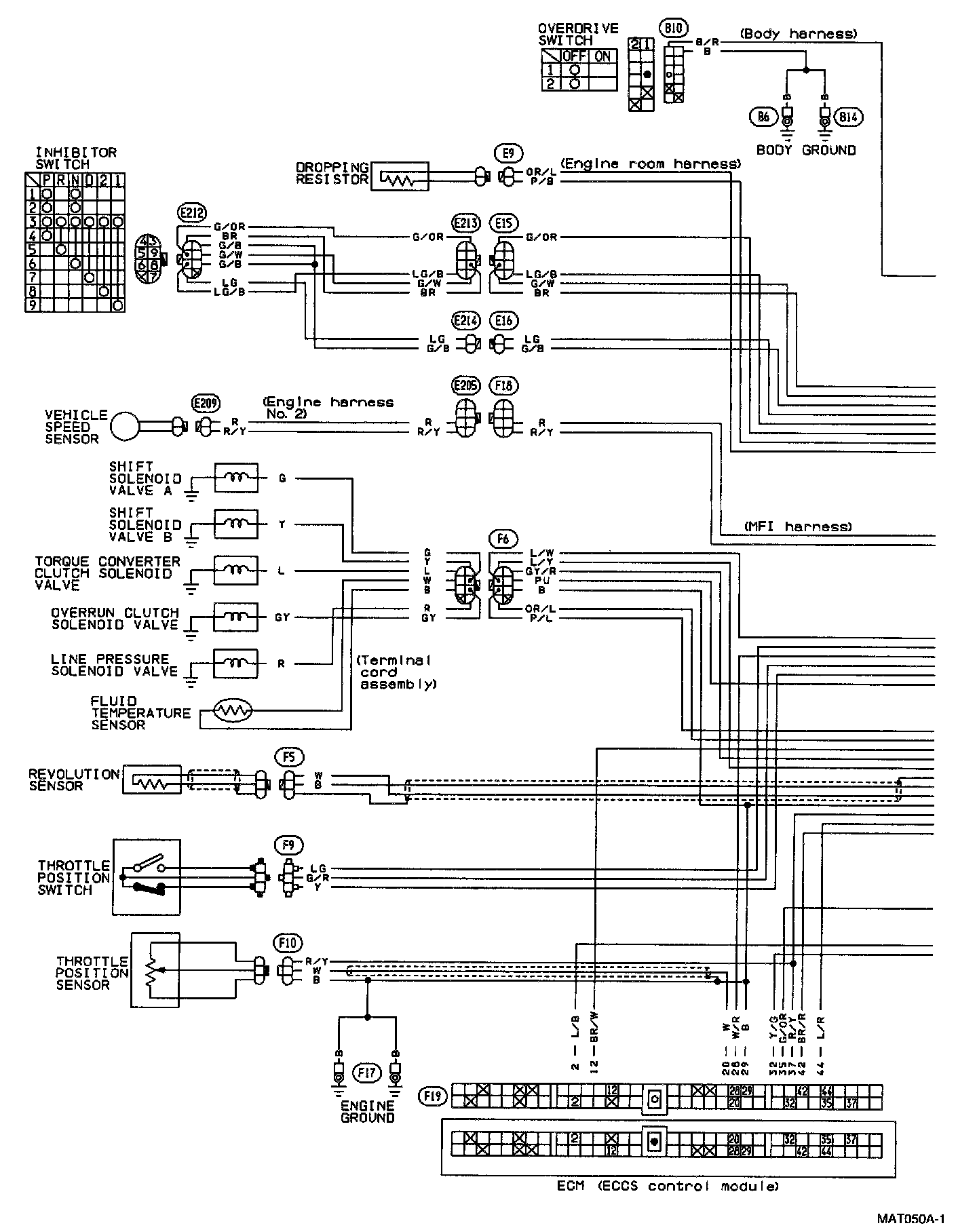

Wiring Diagram Part 2:
