DTC 21 - Ignition Signal

The ECU did not detect the ignition primary signal during starting or running.

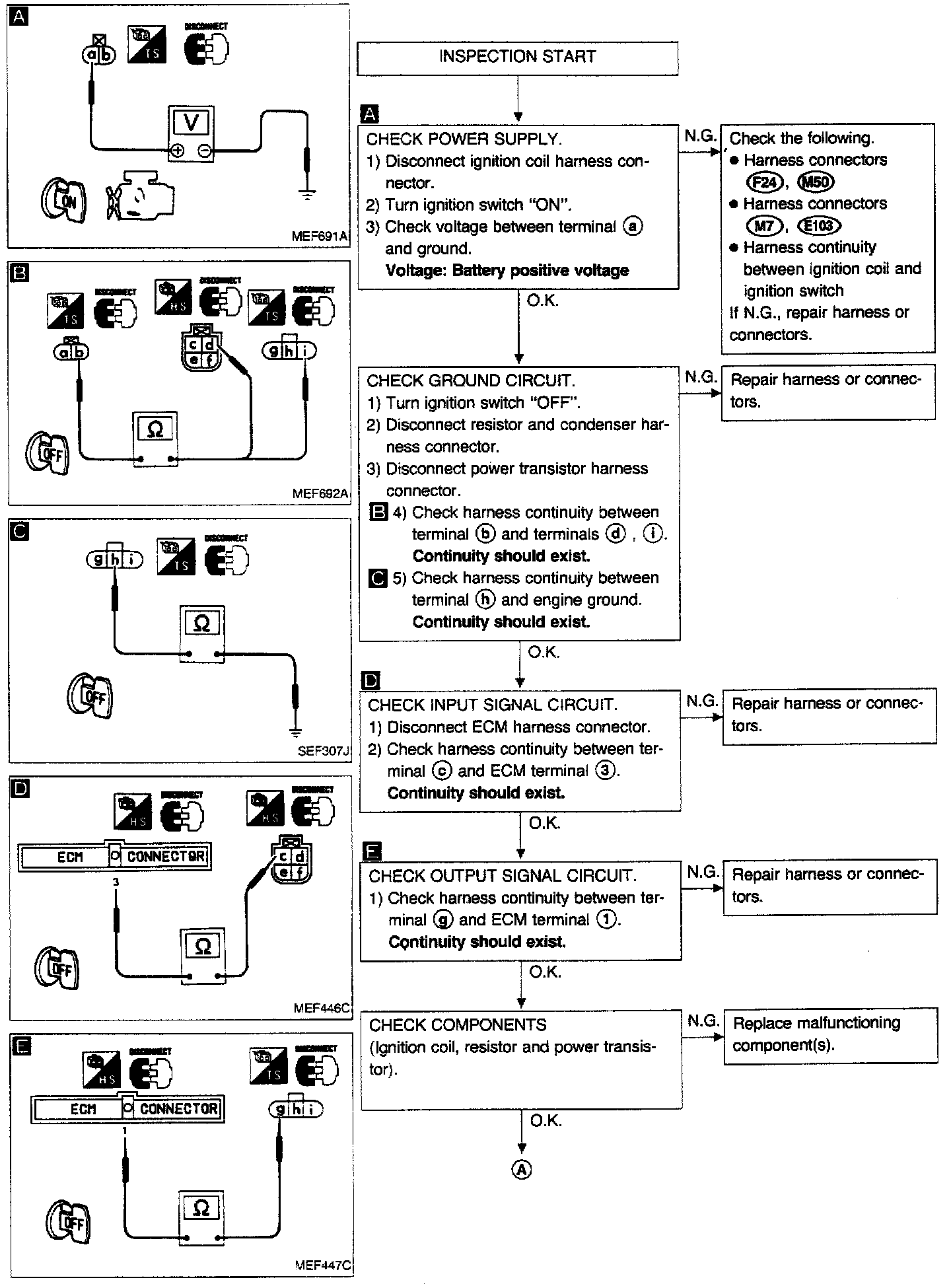

DTC 21 Ignition Signal Diagnostic Chart:

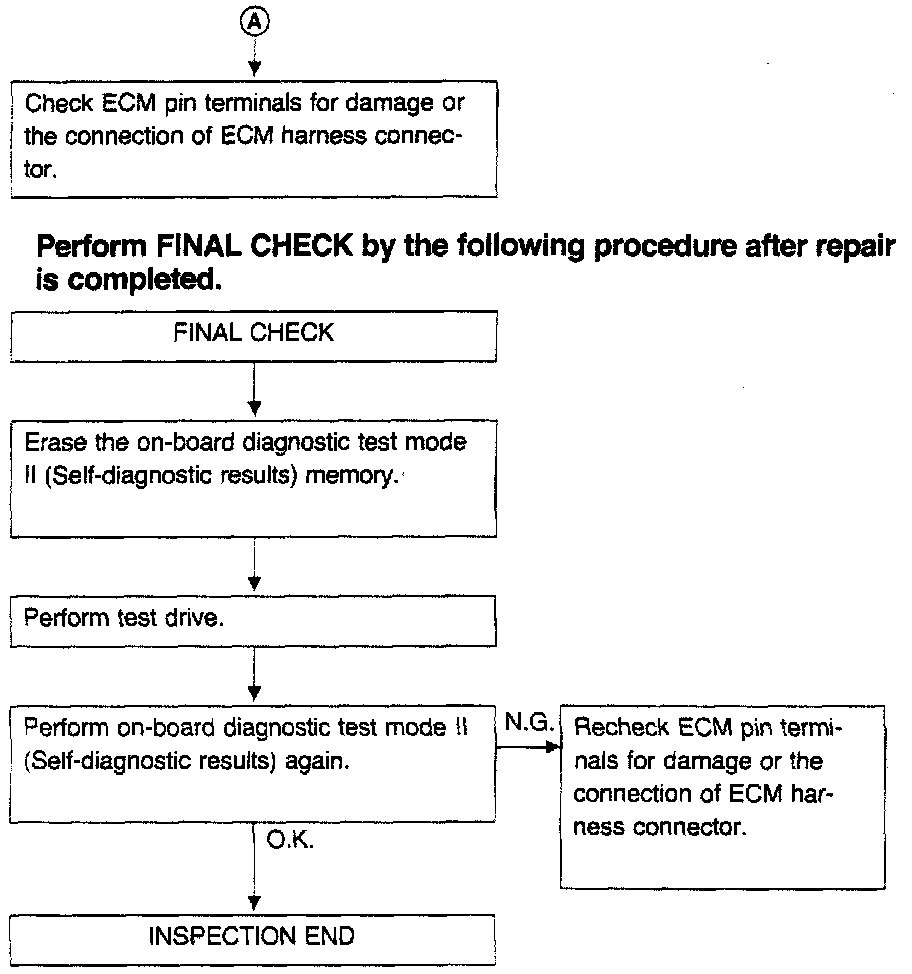

DTC 21 Ignition Signal Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Ignition Signal Circuit (Power Transistor):

CIRCUIT DIAGRAM IMAGE

Power Transistor Connector Location:

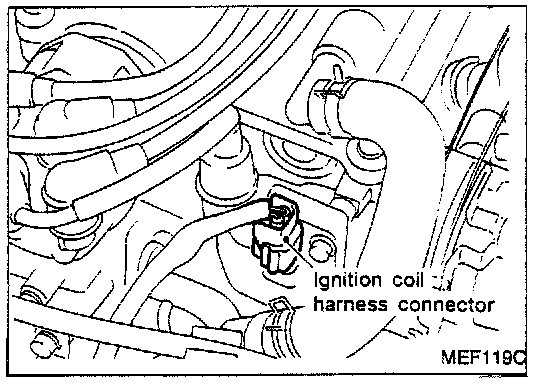

Ignition Coil Connector Location:

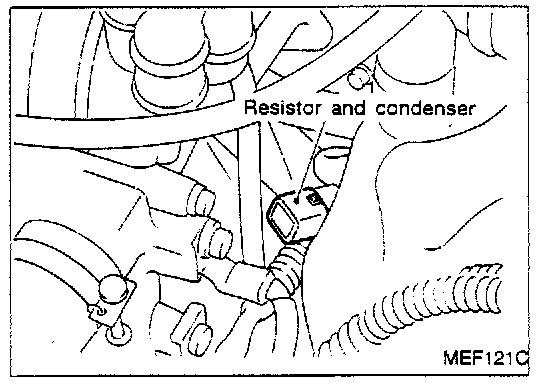

Resistor And Condenser Connector Location:

ELECTRICAL CONNECTOR IMAGES
