Start Signal
Start Signal

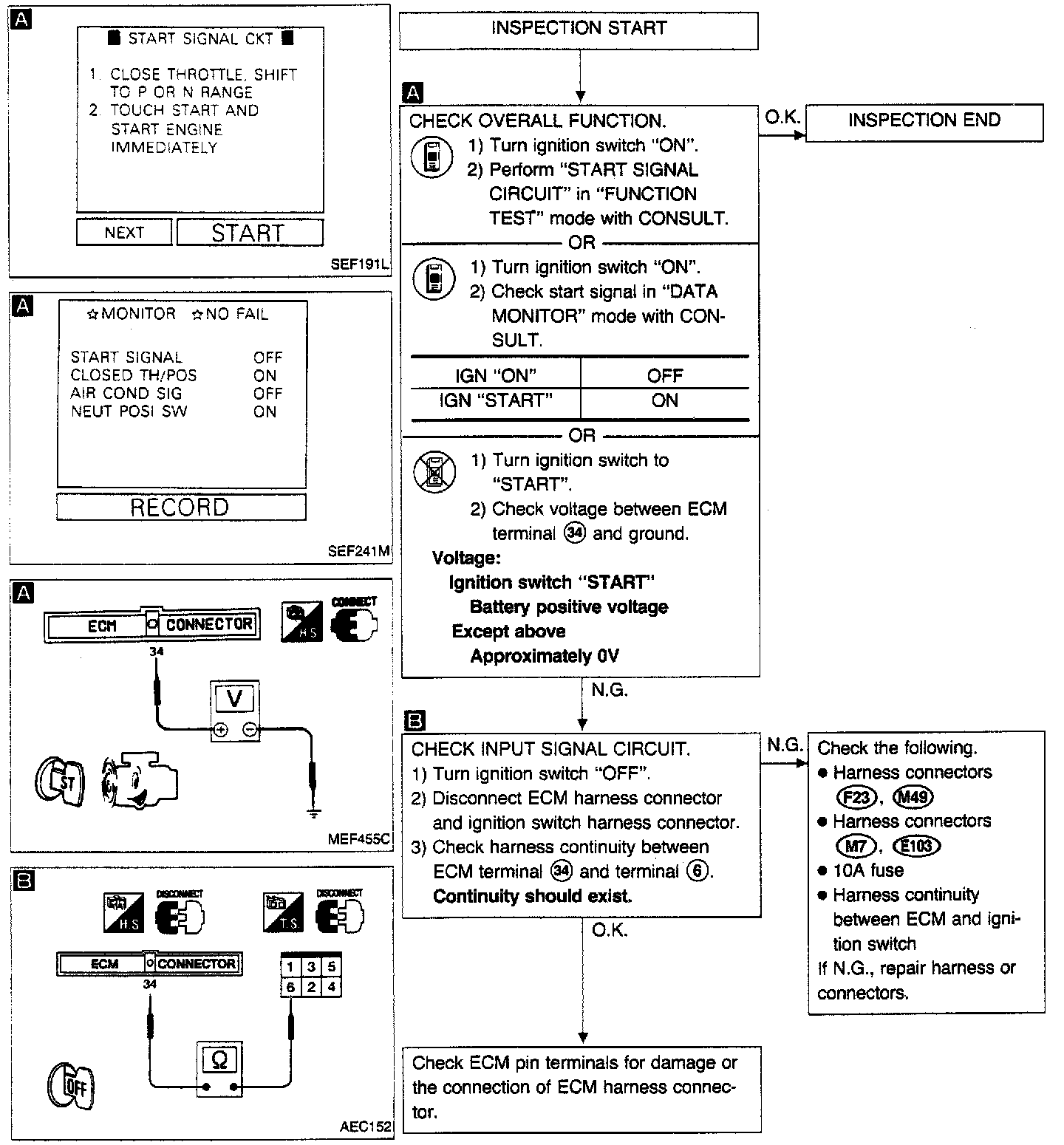

Start Signal Diagnostic Chart:
CIRCUIT TEST IMAGE
Start Signal Circuit:
CIRCUIT DIAGRAM IMAGE
