Home >> Nissan-Datsun >> 1993 >> Altima L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams >> Electrical Diagrams

Electrical Diagrams

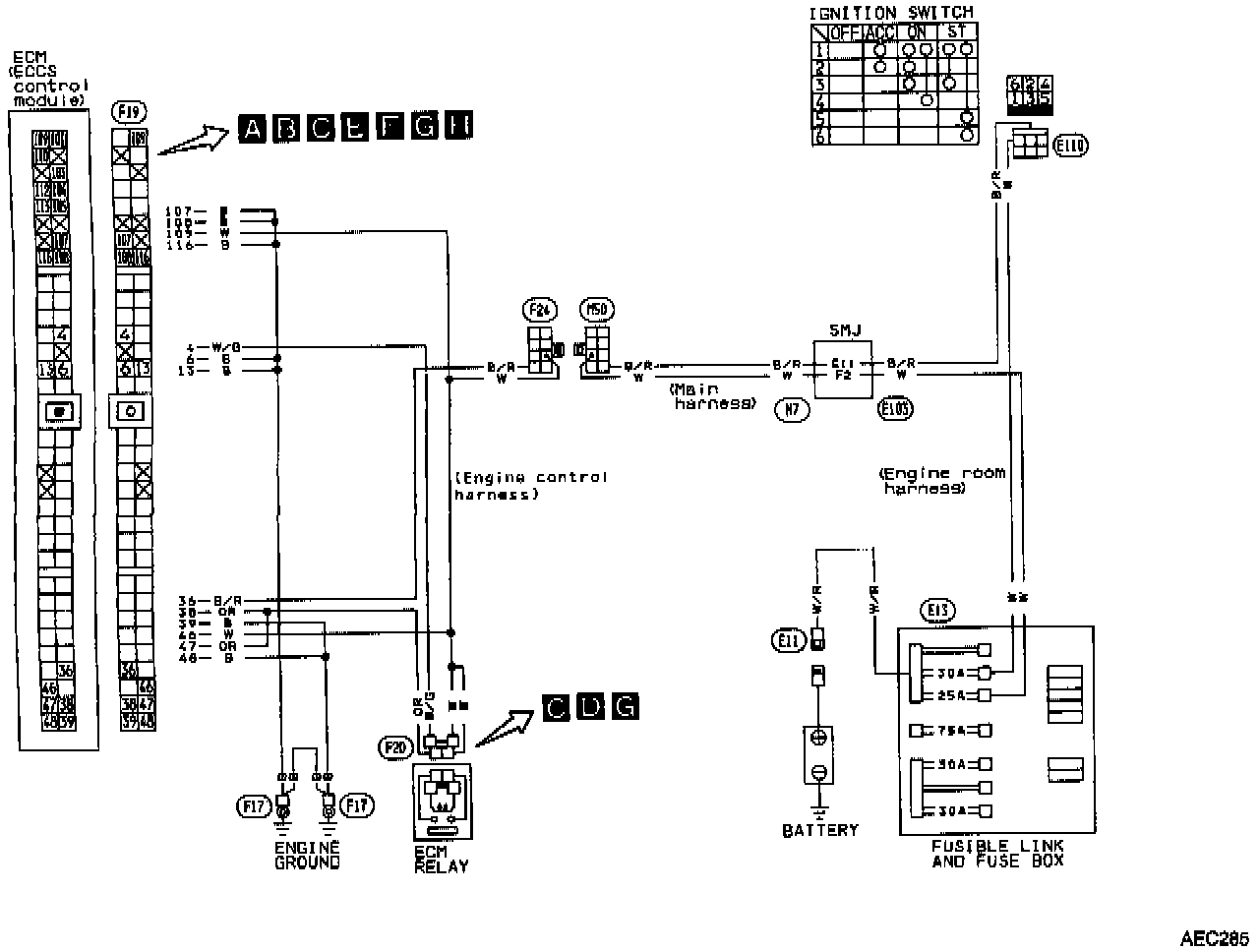

ECM Main Power And Ground Circuit:
