Home
>>
Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

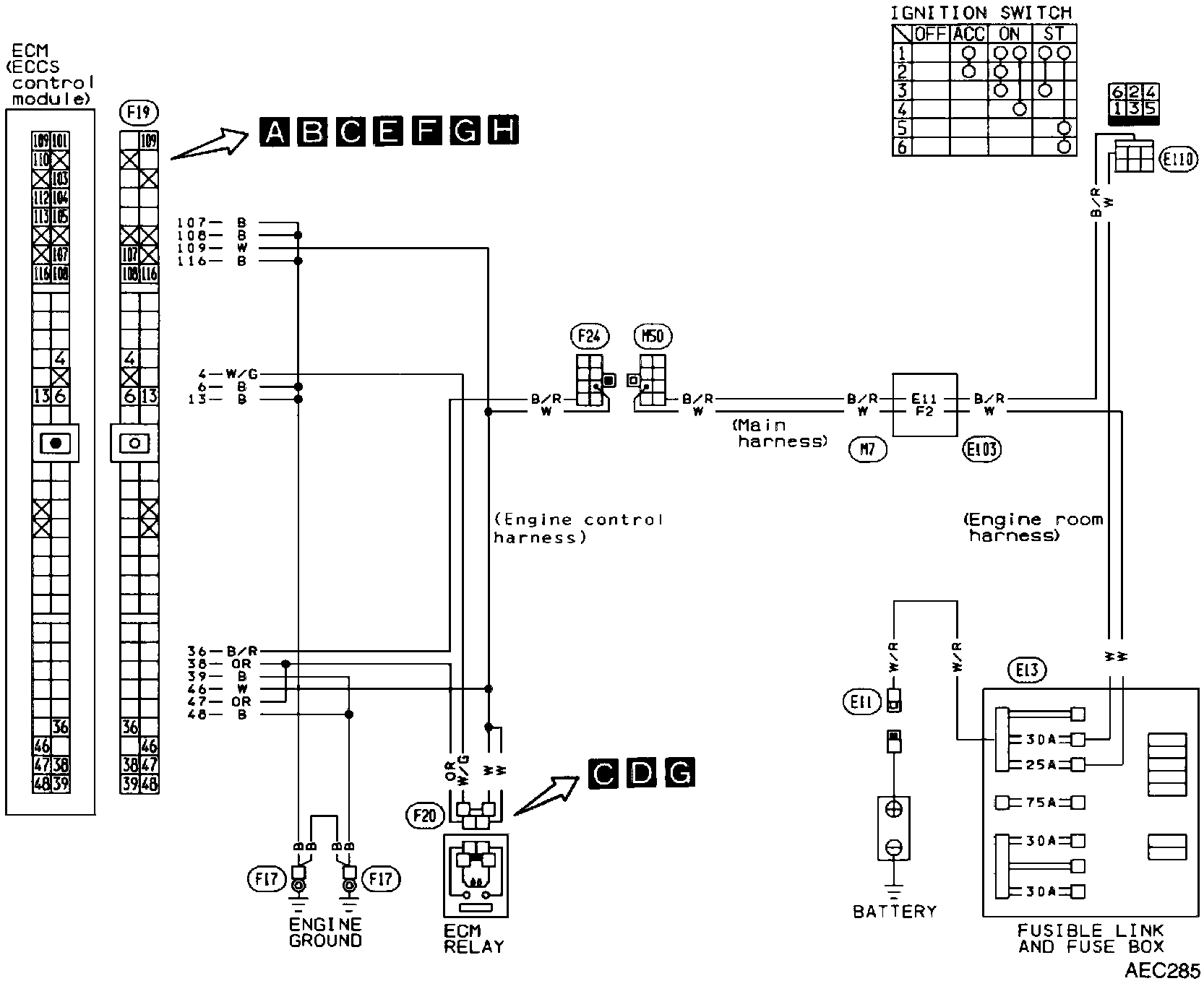

Main Power Supply And Ground Circuit (Not Self-diagnostic Item):
