Home
>>
Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
System Wiring Diagram

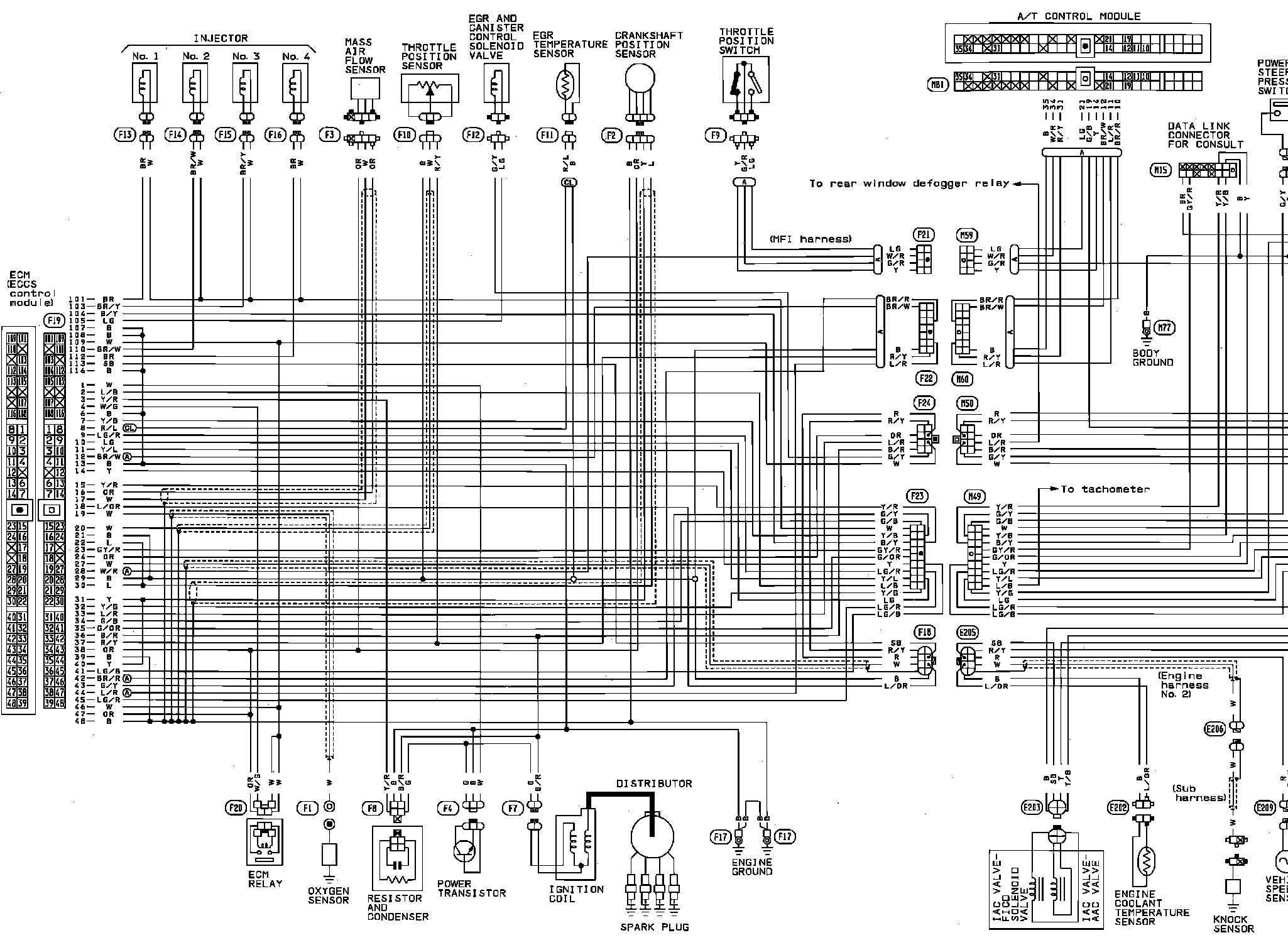

System Wiring Diagram
���5ECCS System:
