Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

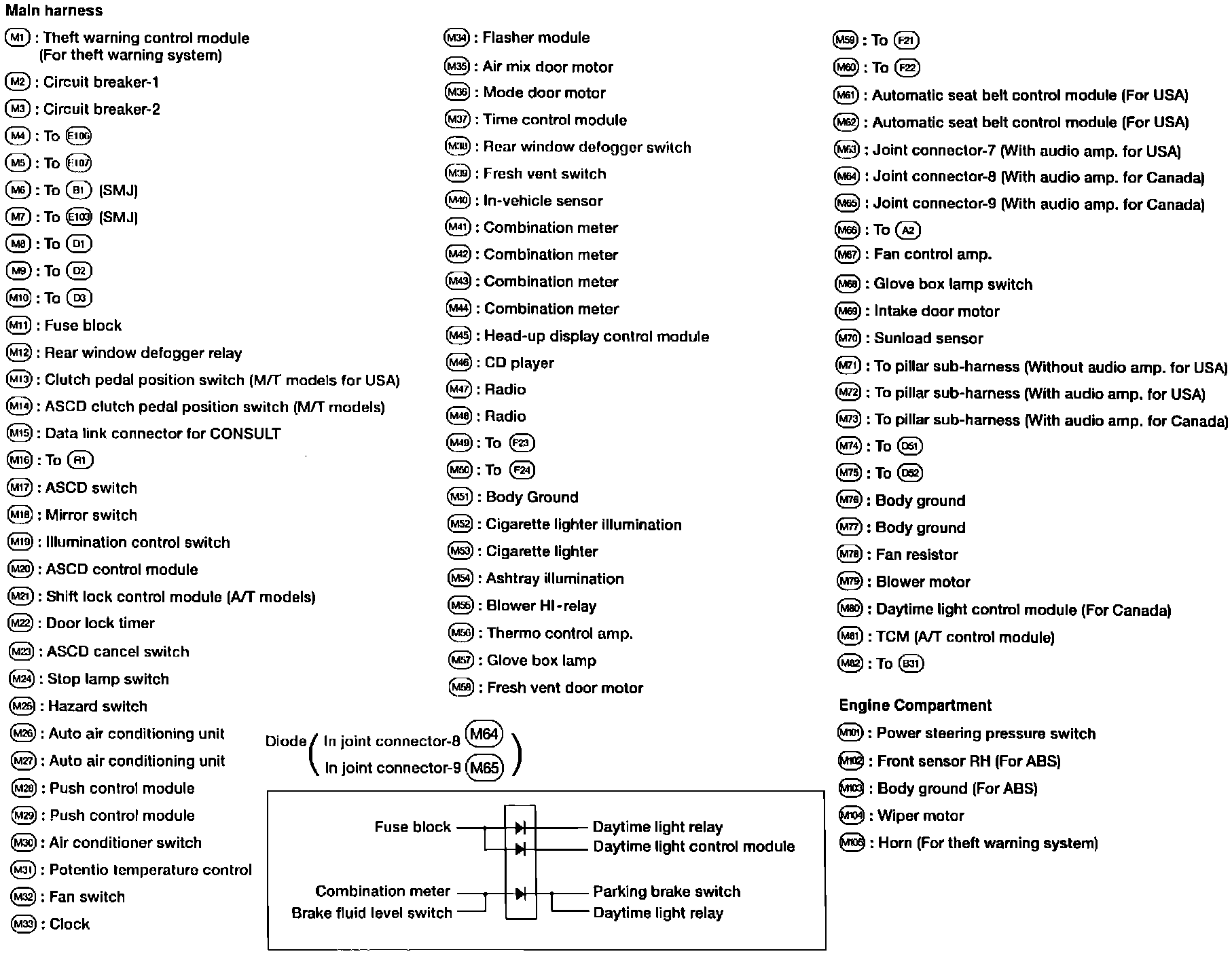

M Connectors, Main
M Connectors, Main

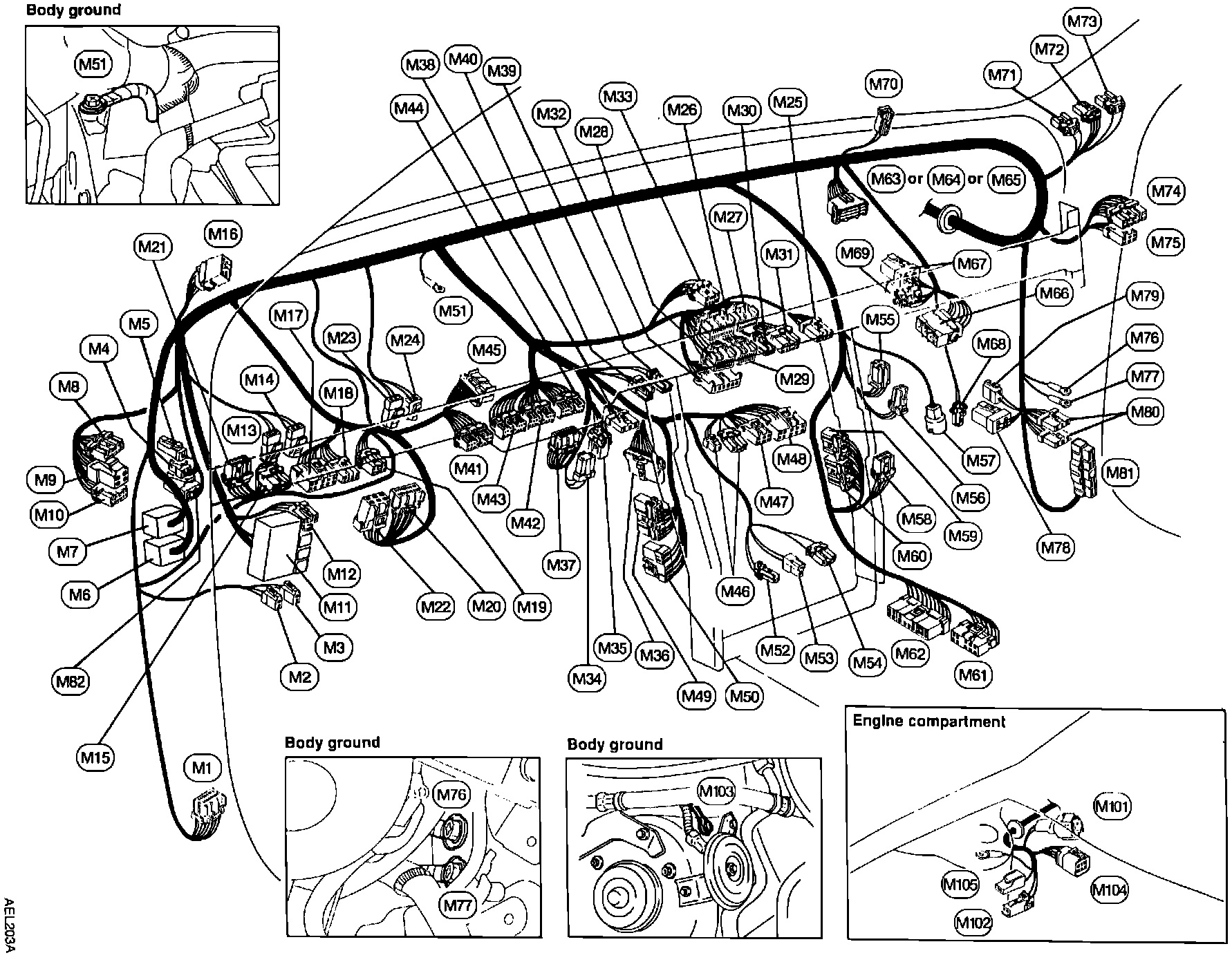

Harness Layout: Main:
Harness Layout: Main:
