Home >> Nissan-Datsun >> 1993 >> Altima L4-2.4L (KA24DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Duct >> Locations

Air Duct: Locations

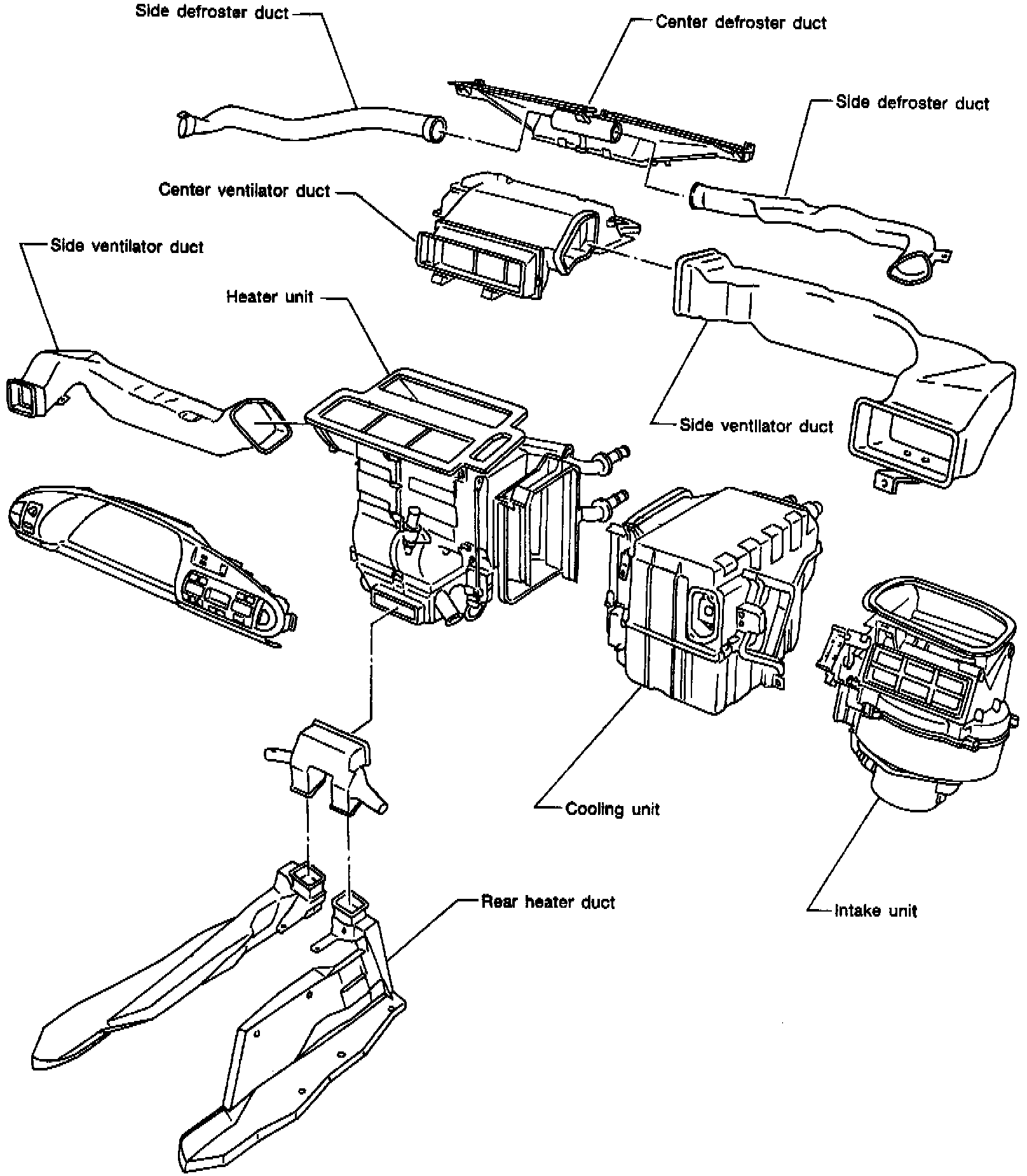

Fig. 7 Exploded View Of Heater System:
