Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
EGR Control Solenoid
EGR Control Solenoid

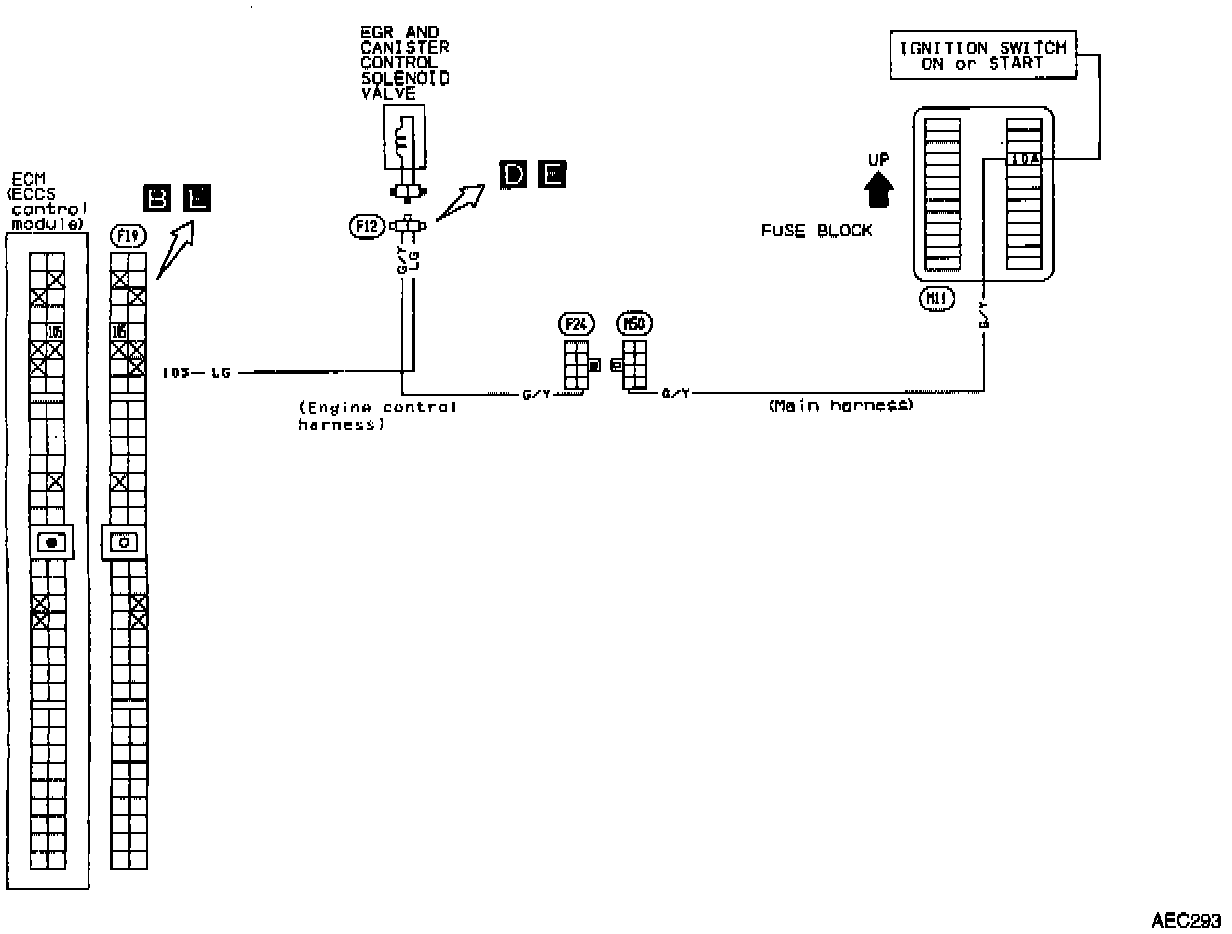

EGR Control/Purge Control Solenoid Circuit:
