Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Actuator Check
Actuator Check

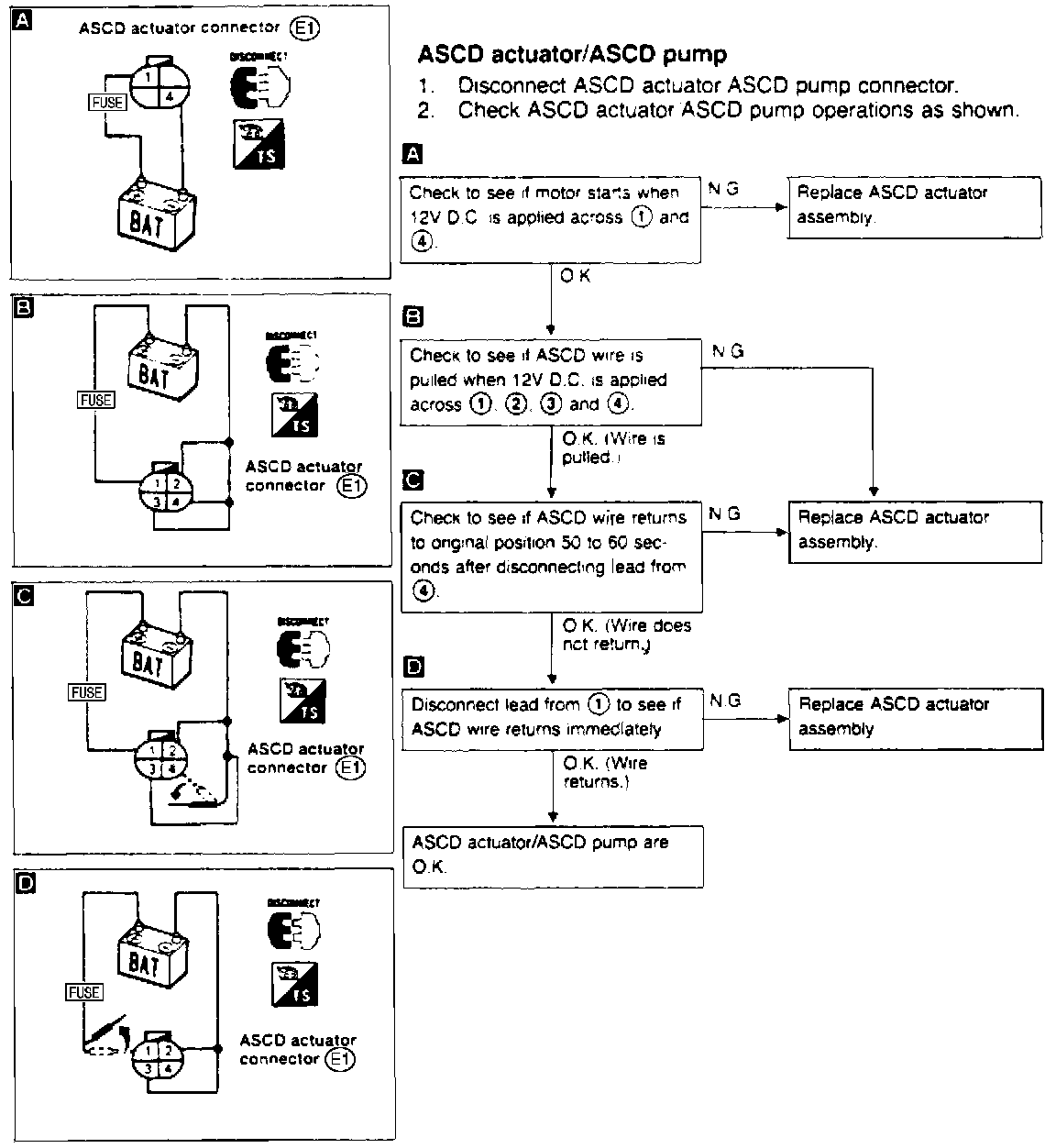

Fig. 76 Actuator Check:
