Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
A.S.C.D. Actuator
A.S.C.D. Actuator

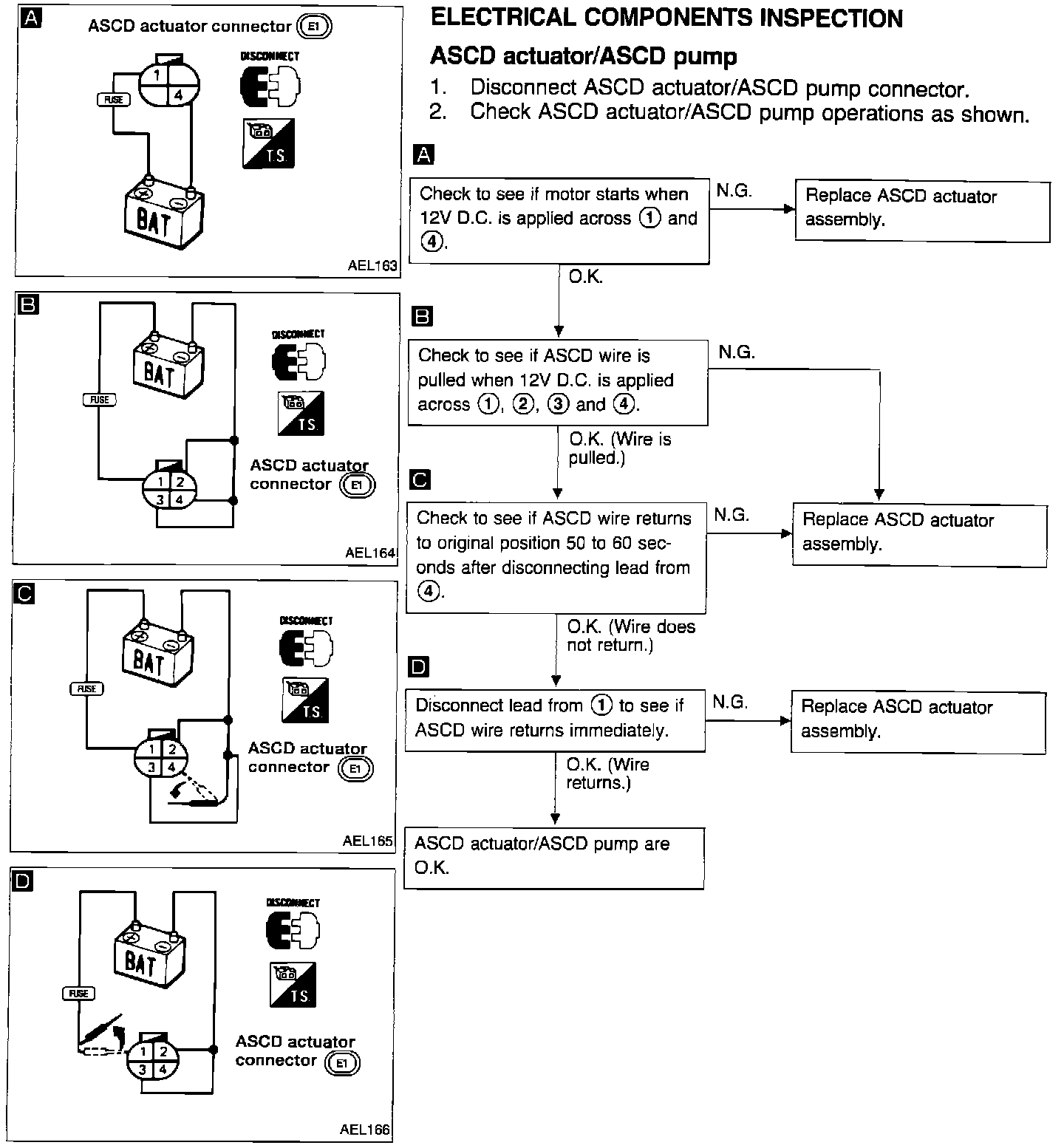

Fig. 9 Cruise Control Electrical Components Inspection:
