DTC 54

The ECU detected an open or shorted circuit in the wiring between the ECCS and the A/T control units.

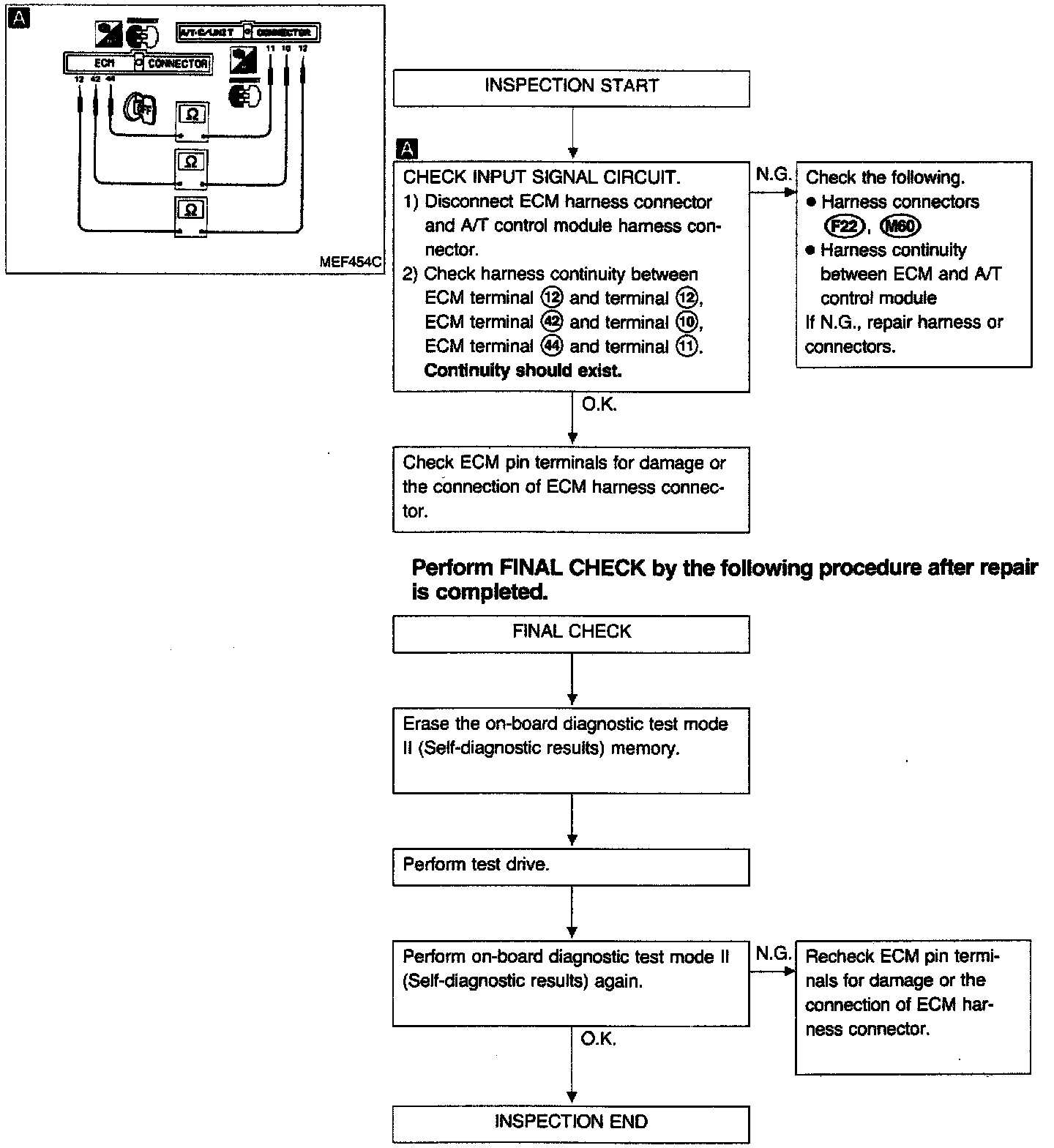

DTC 54 A/T Control Unit Communication Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

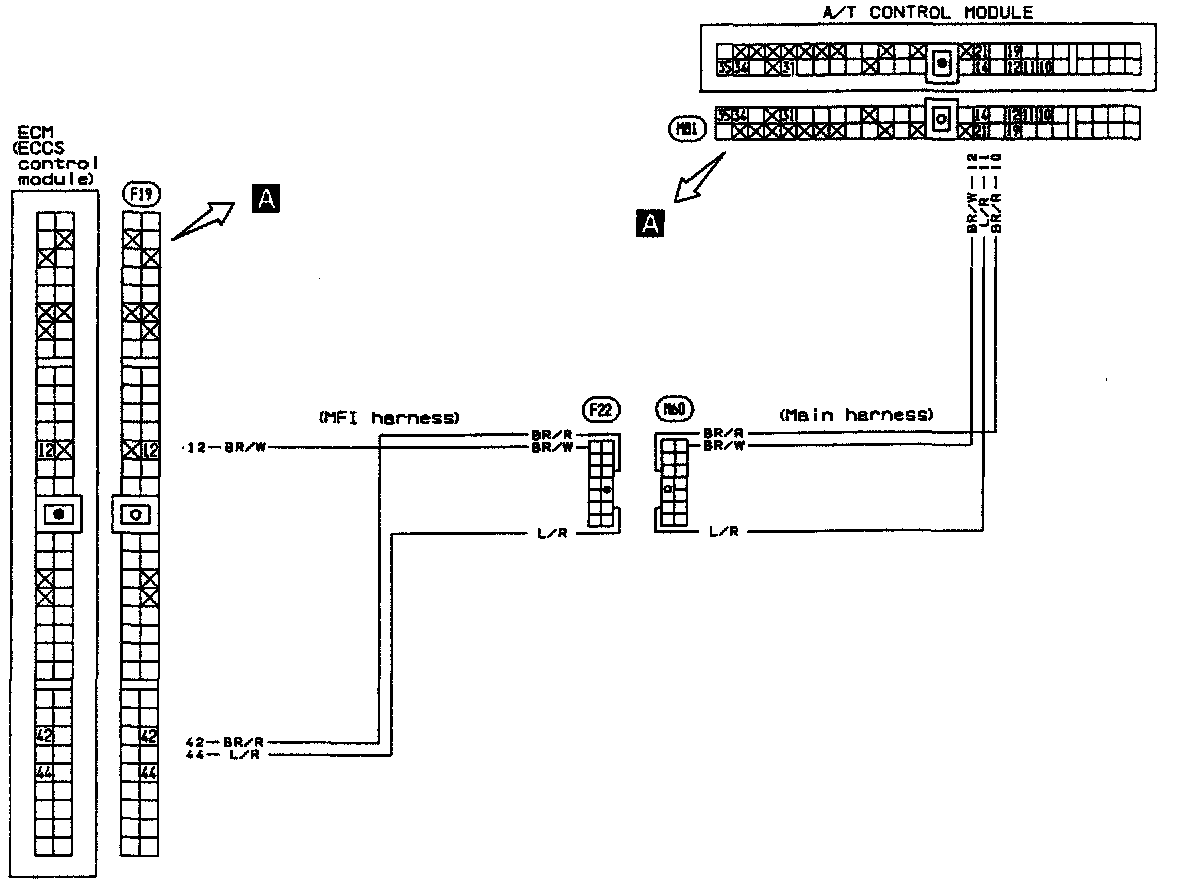

A/T Control Unit Communication Circuit:

CIRCUIT DIAGRAM IMAGE

A/T Control Unit Connector Location:

CONNECTOR LOCATION IMAGE
