DTC 45

The ECU determined that there is an injector leaking fuel into the intake passage. (Based upon O2 sensor voltage showing an excessively rich mixture).

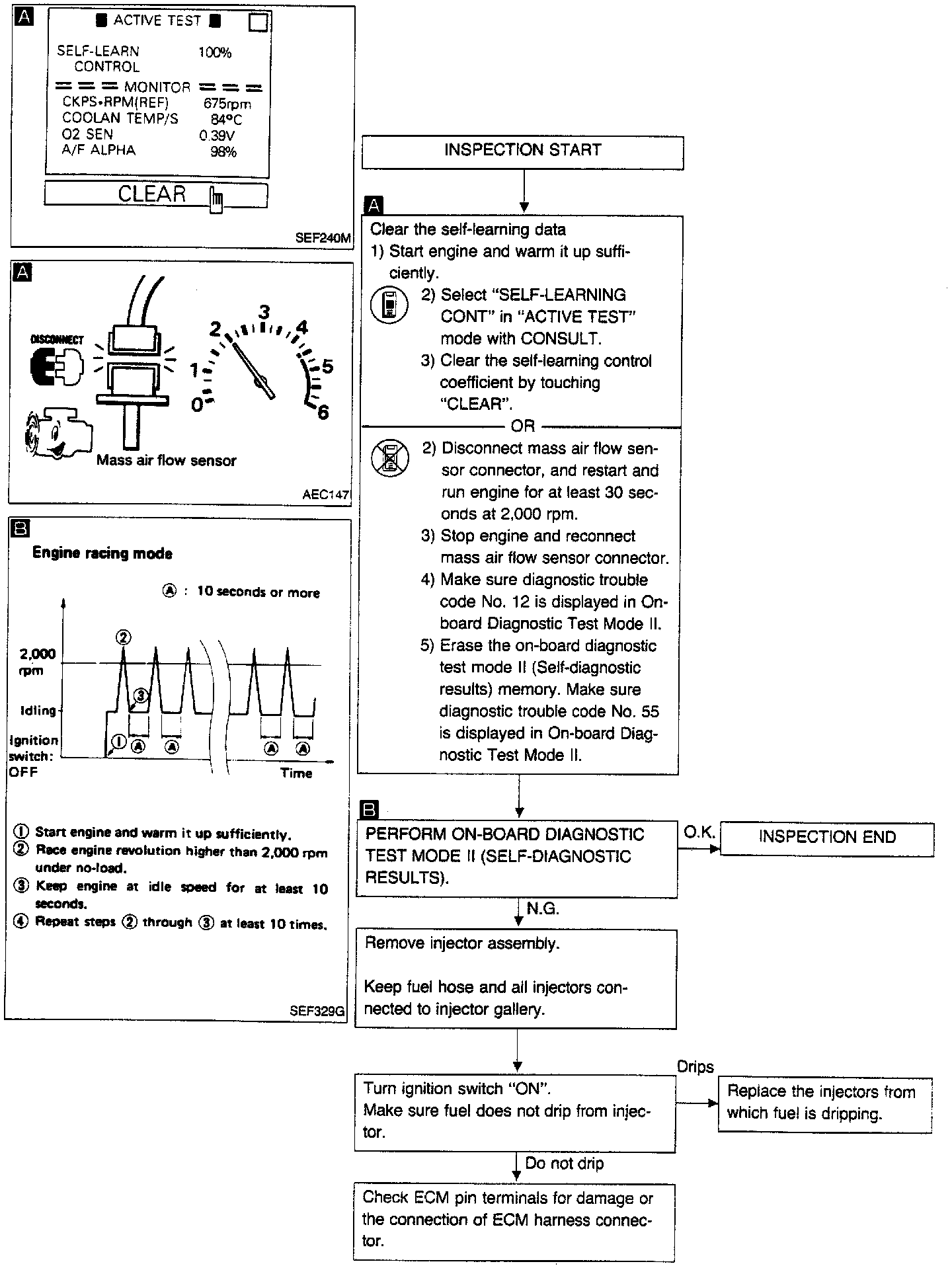

DTC 45 Fuel Injector Leak Diagnostic Chart:





DIAGNOSTIC CHART IMAGE
