DTC 43

The ECU detected an open or short in the circuit.

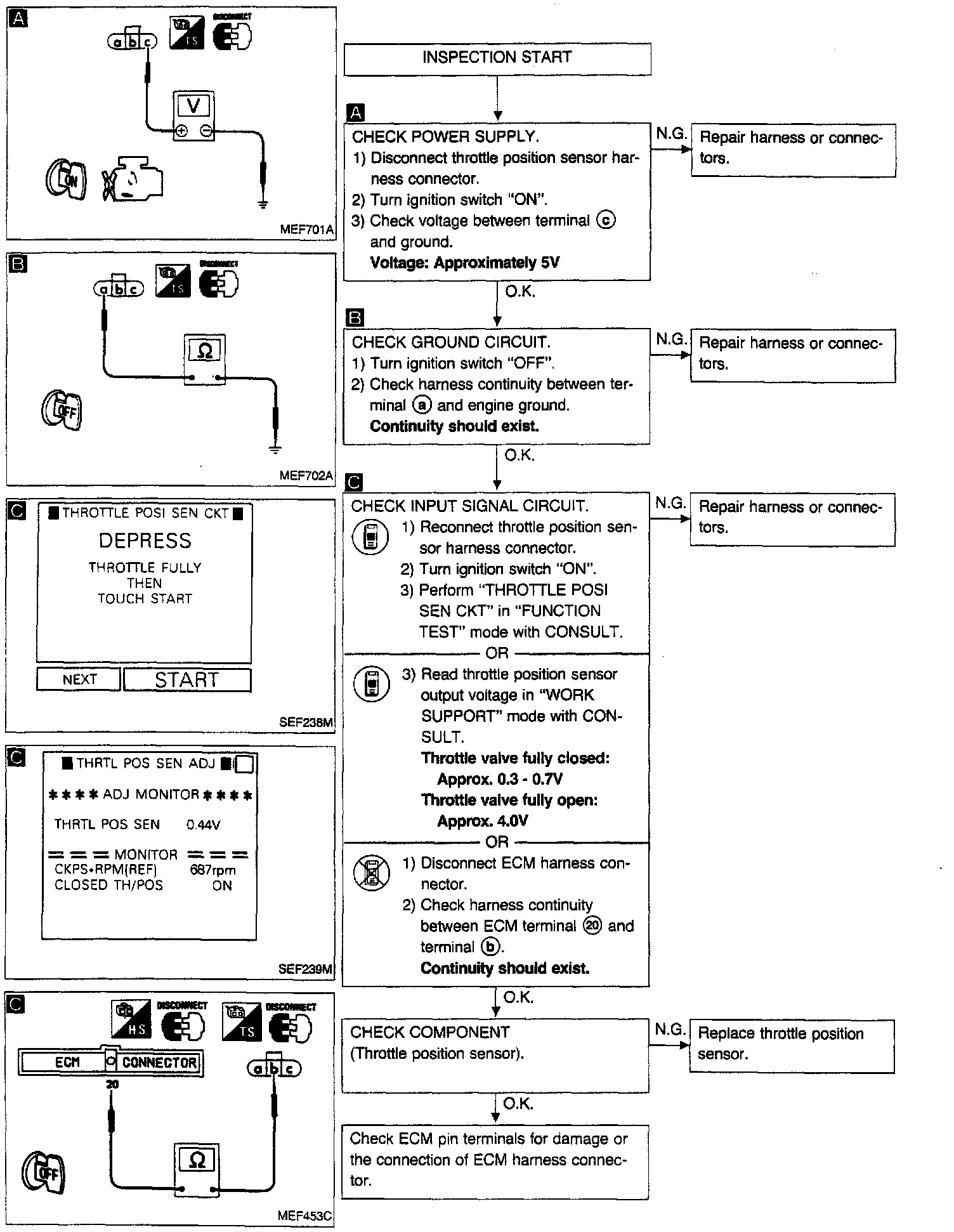

DTC 43 Throttle Position Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

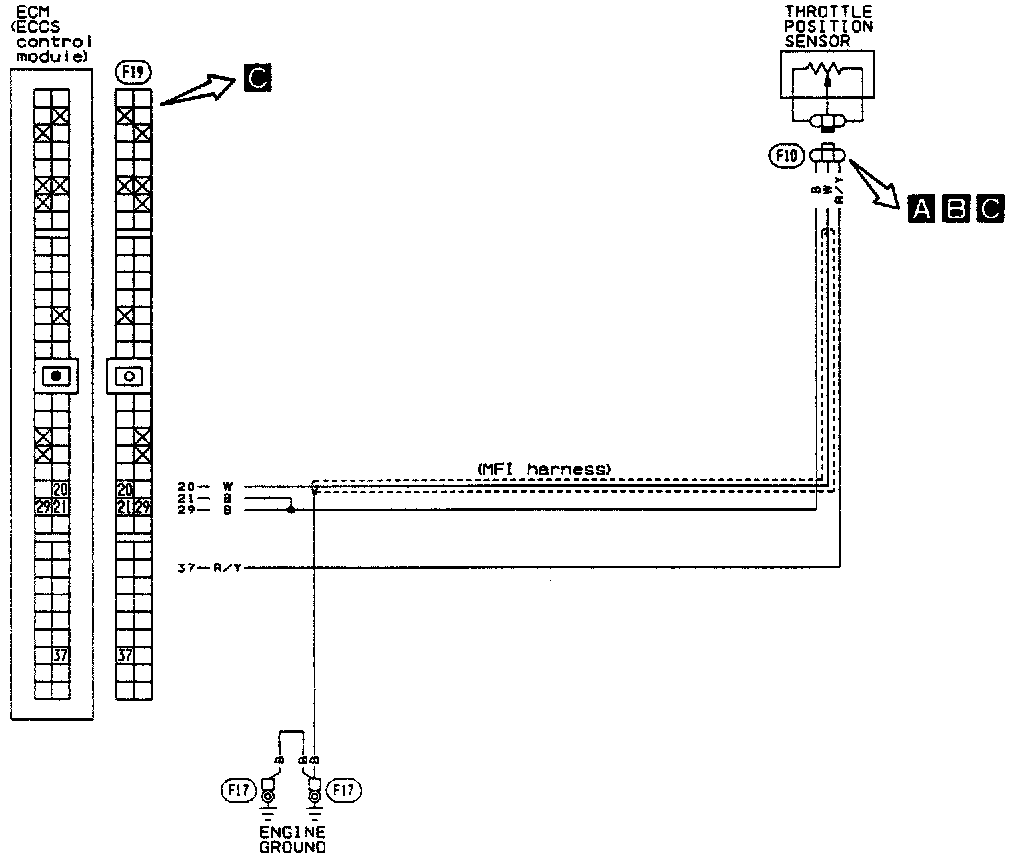

Throttle Position Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Throttle Position Sensor Connector Location:

SENSOR CONNECTOR IMAGE

Final Check:

FINAL CHECK IMAGE
