DTC 34

The ECU detected an open or short in the circuit.

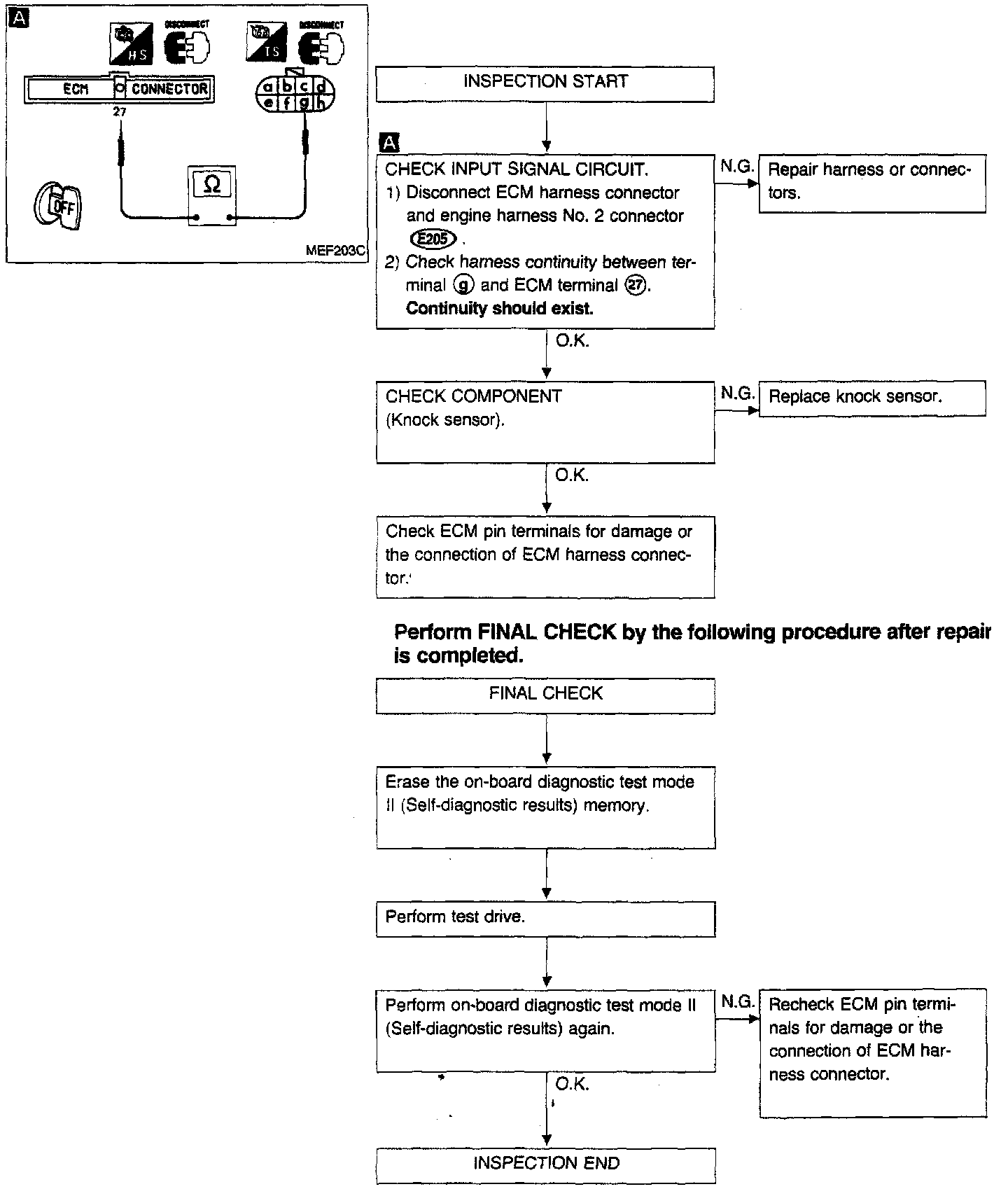

DTC 34 Knock Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

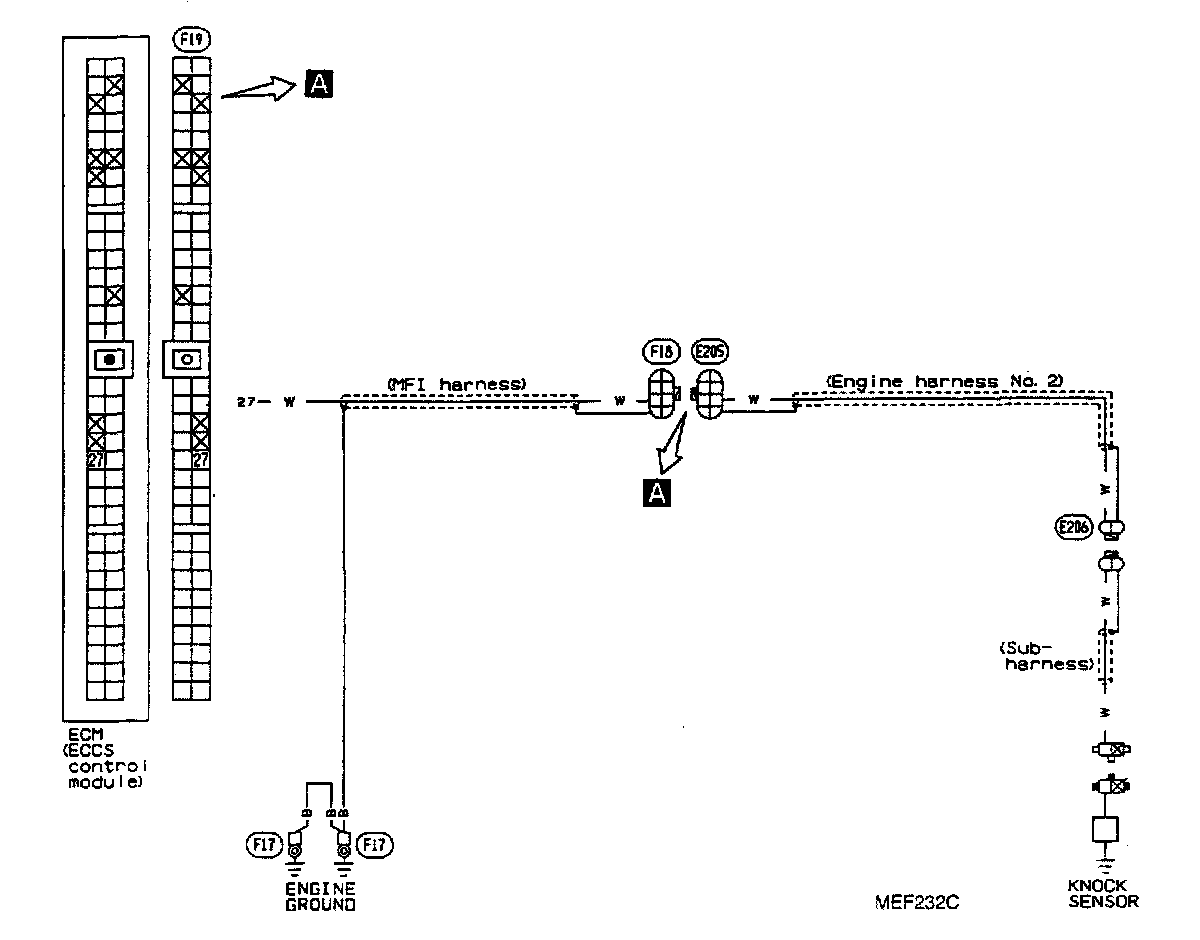

Knock Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

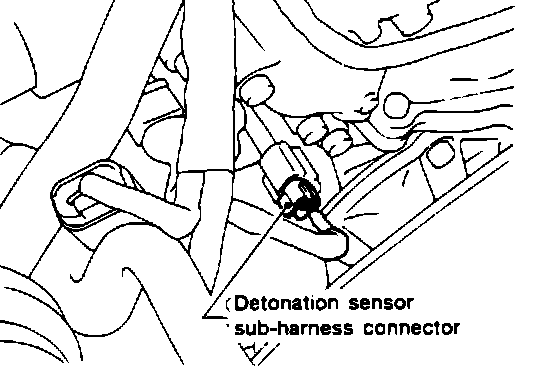

Connector Location:

ELECTRICAL CONNECTORS IMAGE
