DTC 32

The EGR temperature sensor (Ca. models only) signaled the ECU that the EGR system was inoperative.

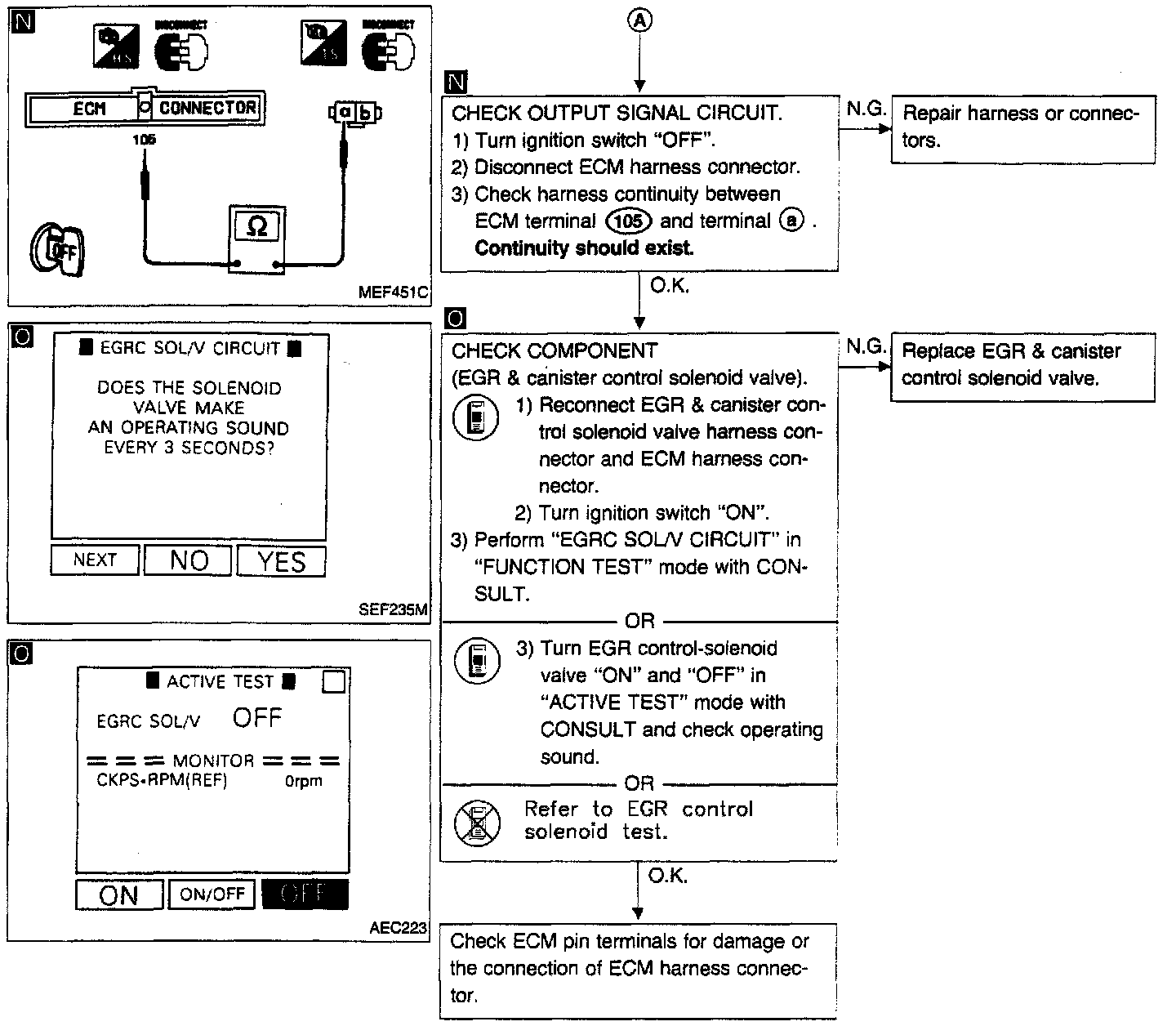

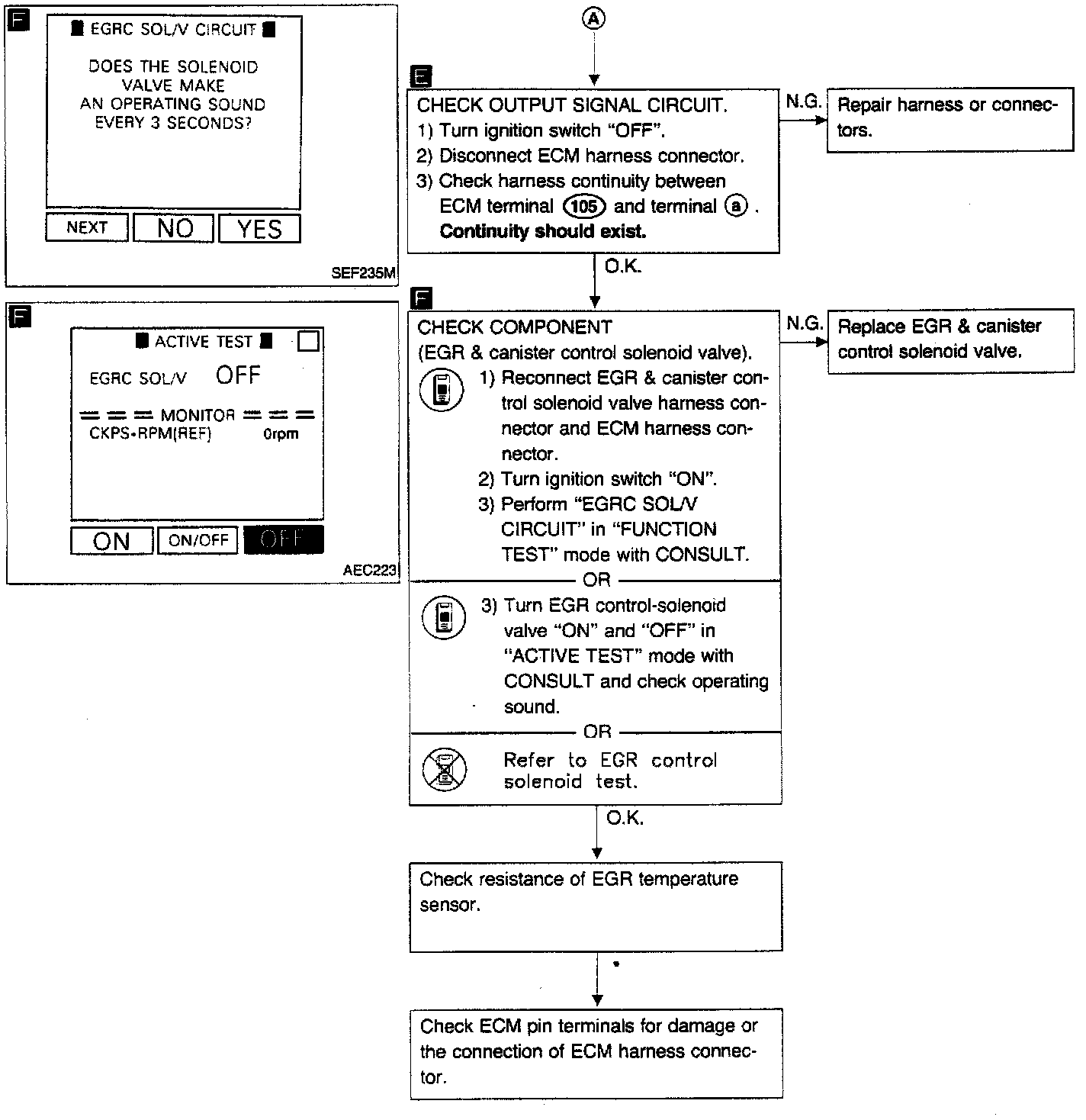

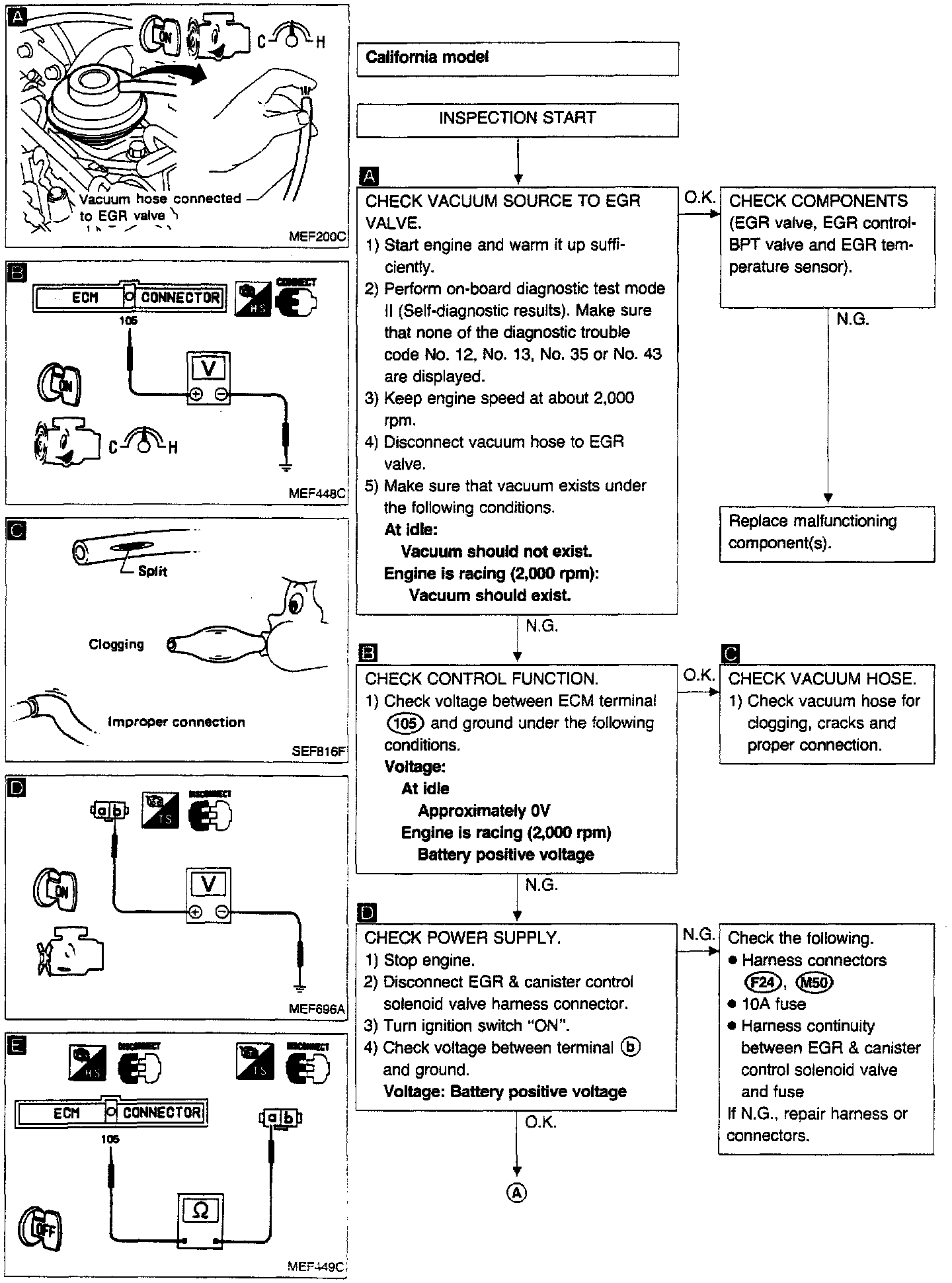

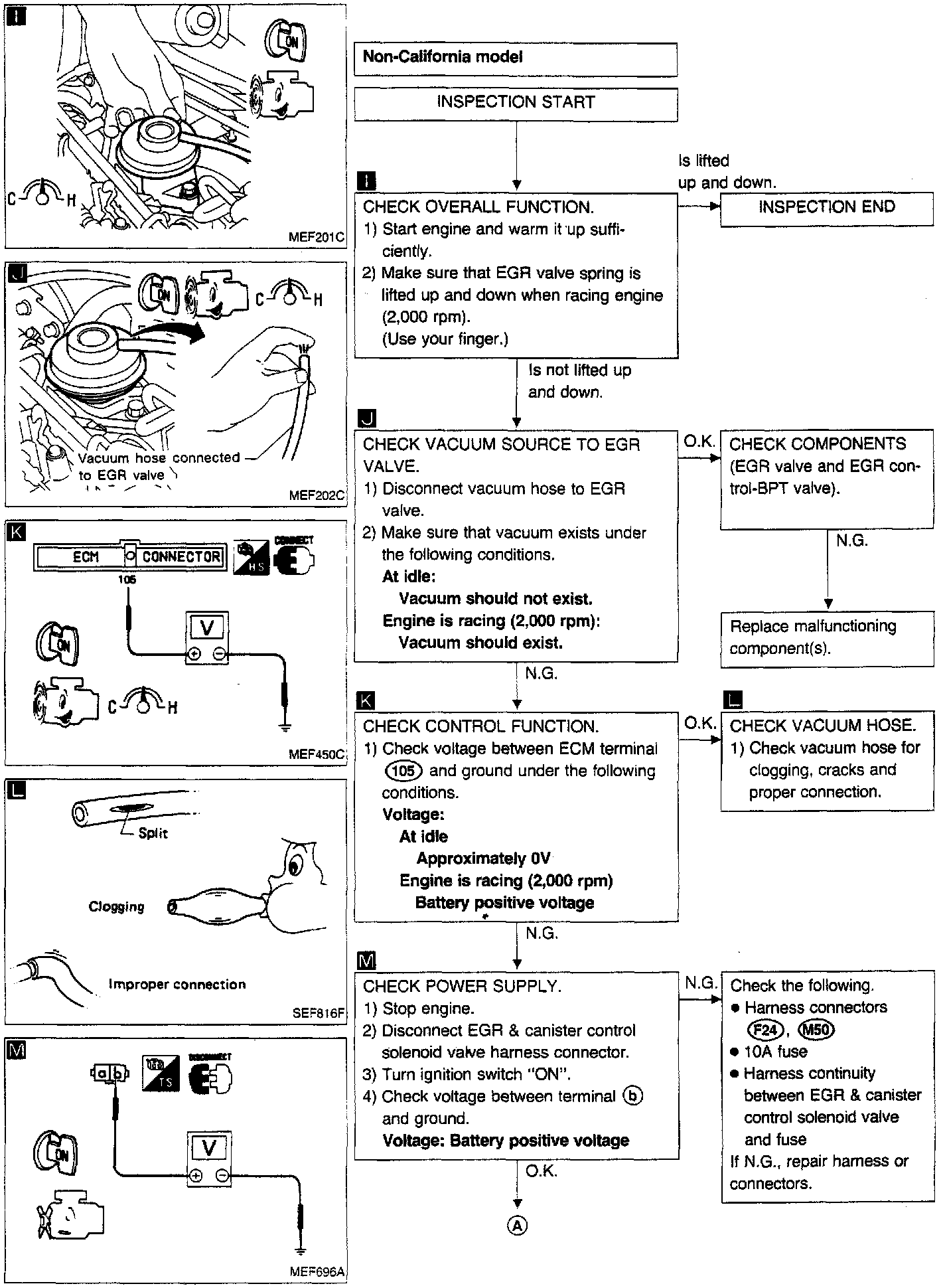

DTC 32 EGR Control Solenoid Diagnostic Chart:

DTC 32 EGR Control Solenoid Diagnostic Chart:

DTC 32 EGR Control Solenoid Diagnostic Chart:

DTC 32 EGR Control Solenoid Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

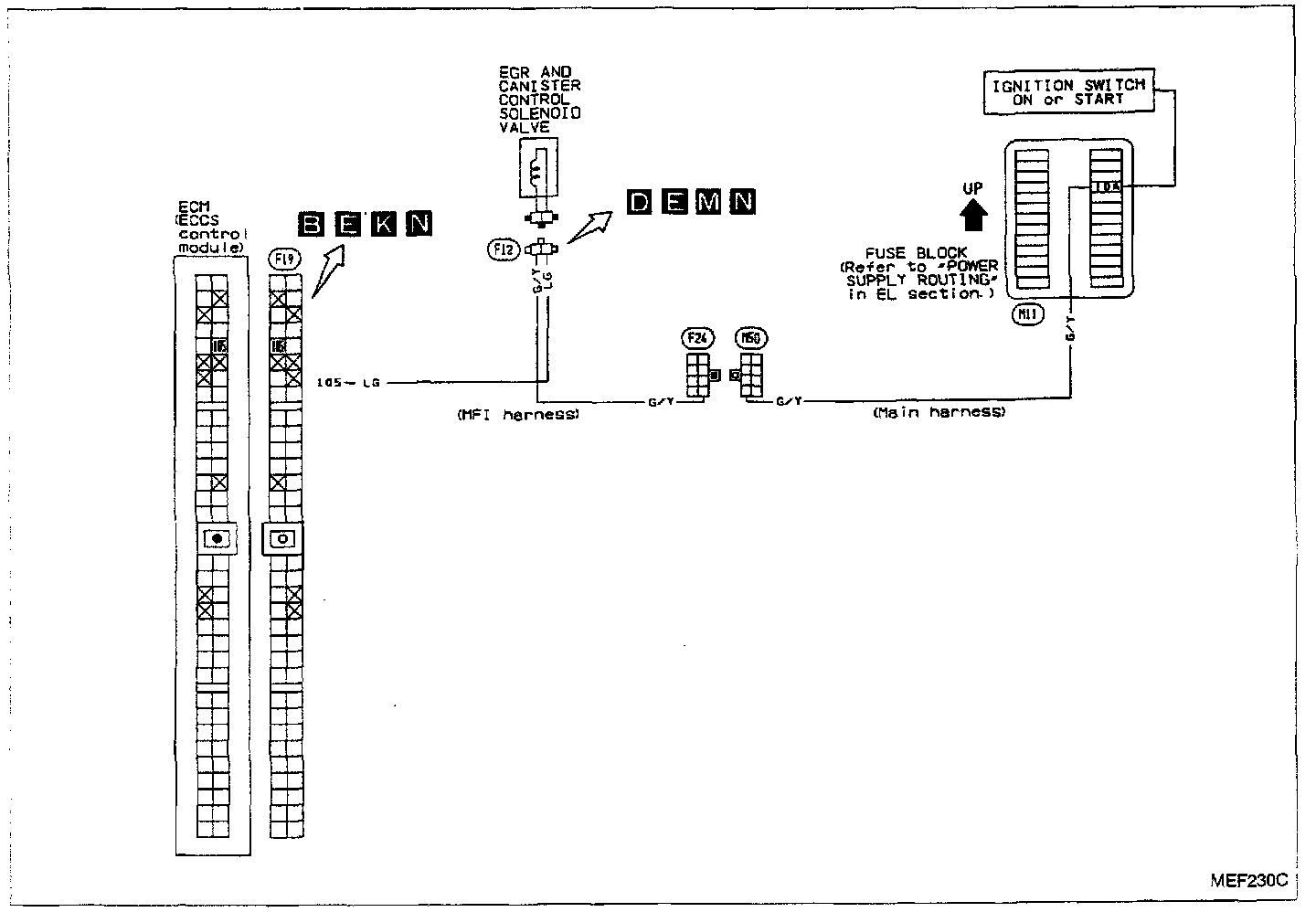

EGR Control Solenoid Circuit:

CIRCUIT DIAGRAM IMAGE

EGR Control Solenoid Connector Location:

ELECTRICAL CONNECTORS IMAGE

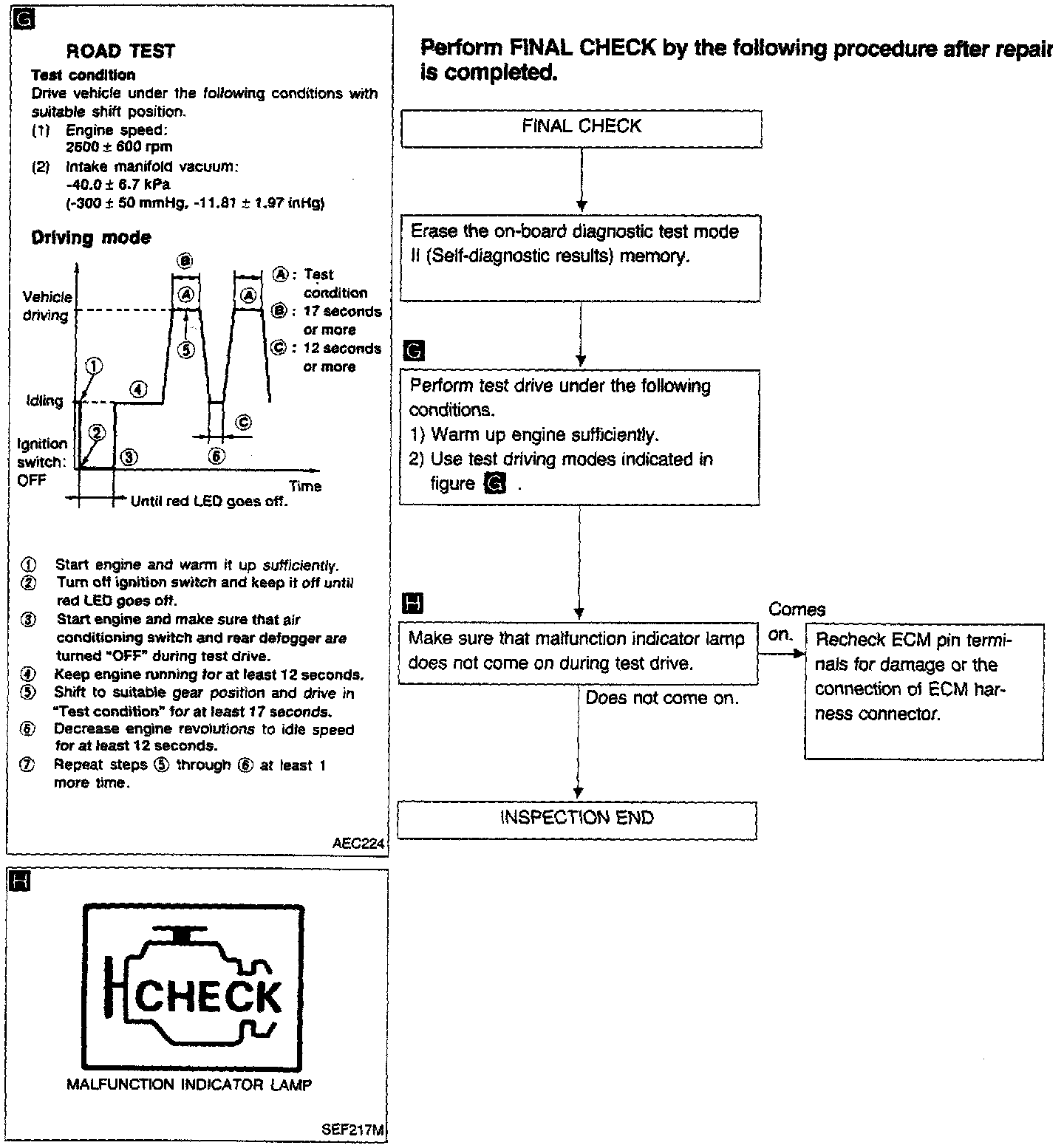

DTC 32 EGR Control Solenoid Diagnostic Chart:

FINAL CHECK IMAGE
