DTC 14

The ECU detected an open circuit.

DTC 14 Vehicle Speed Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

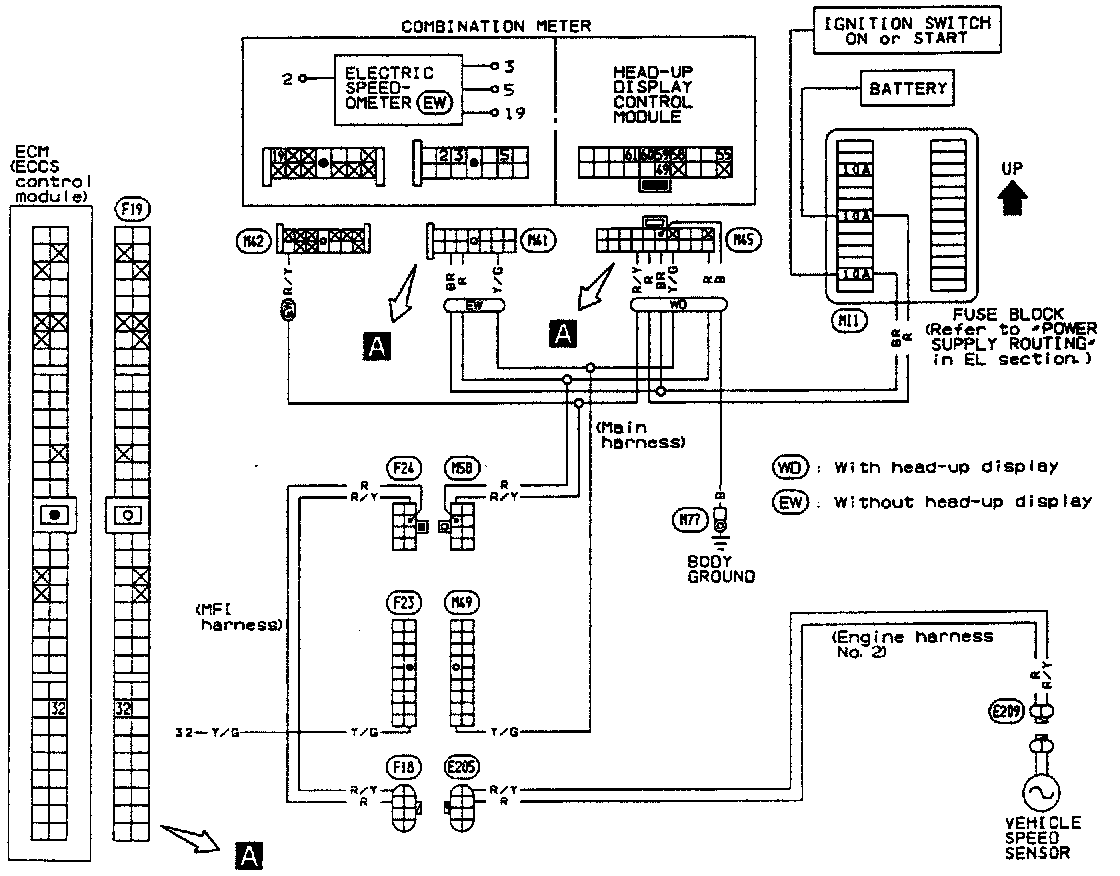

Vehicle Speed Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

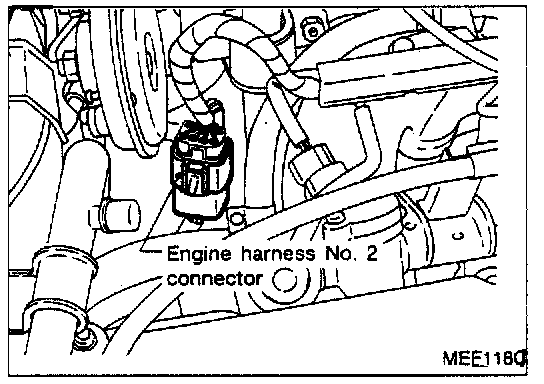

Vehicle Speed Sensor Connector Location:

ELECTRICAL CONNECTORS IMAGE

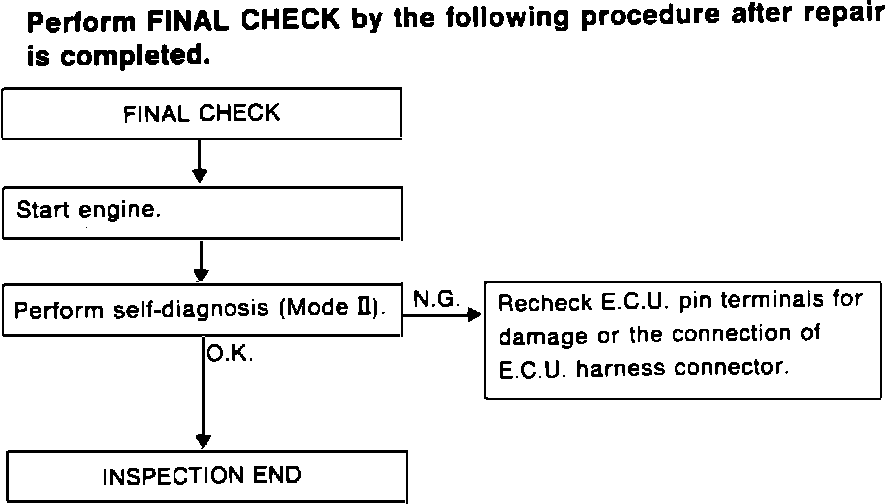

Final Check:

FINAL CHECK IMAGE
