DTC 13

The ECU detected an open or shorted circuit. (An abnormally high or low output voltage is entered.)

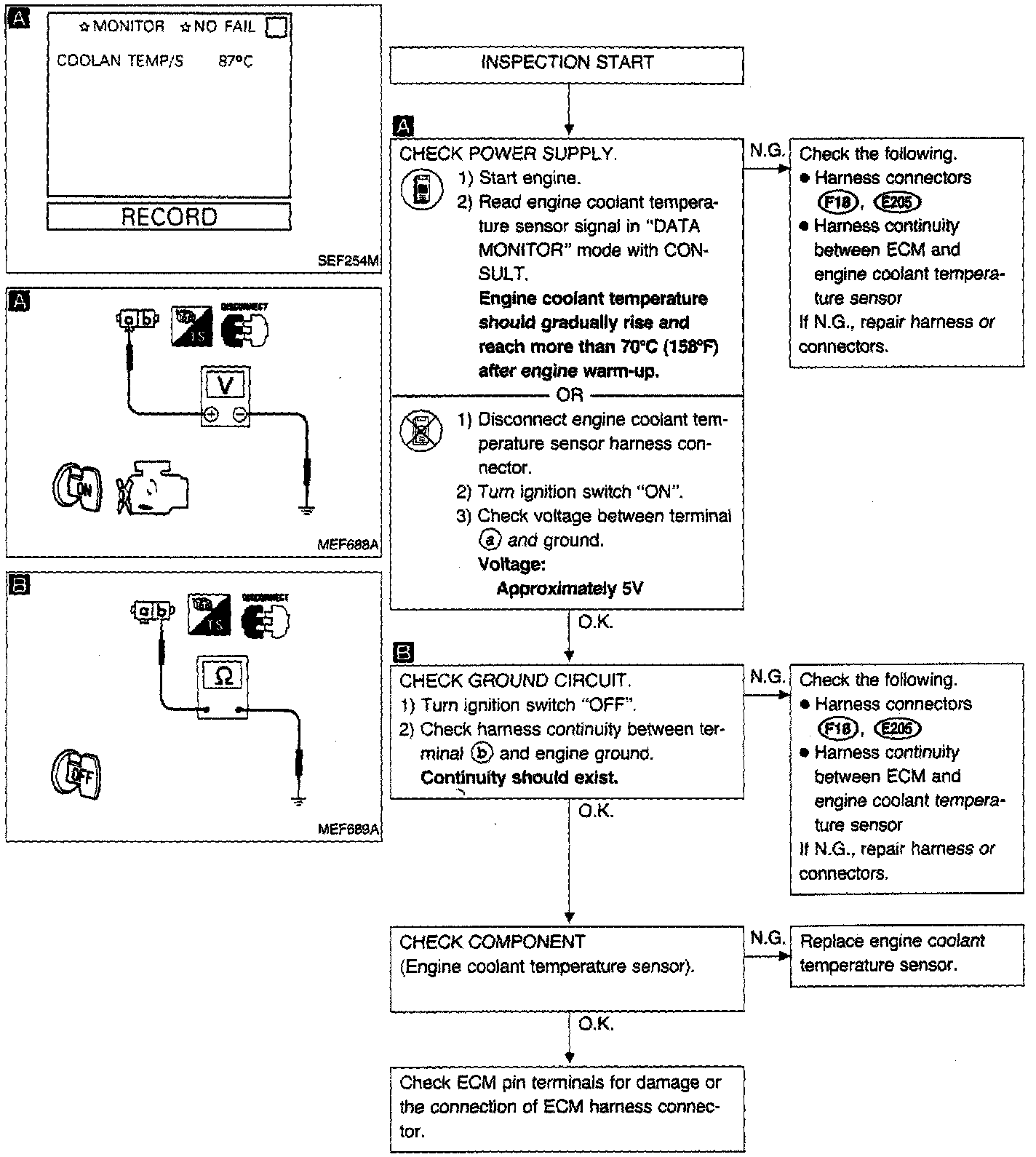

DTC 13 Engine Coolant Temperature Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

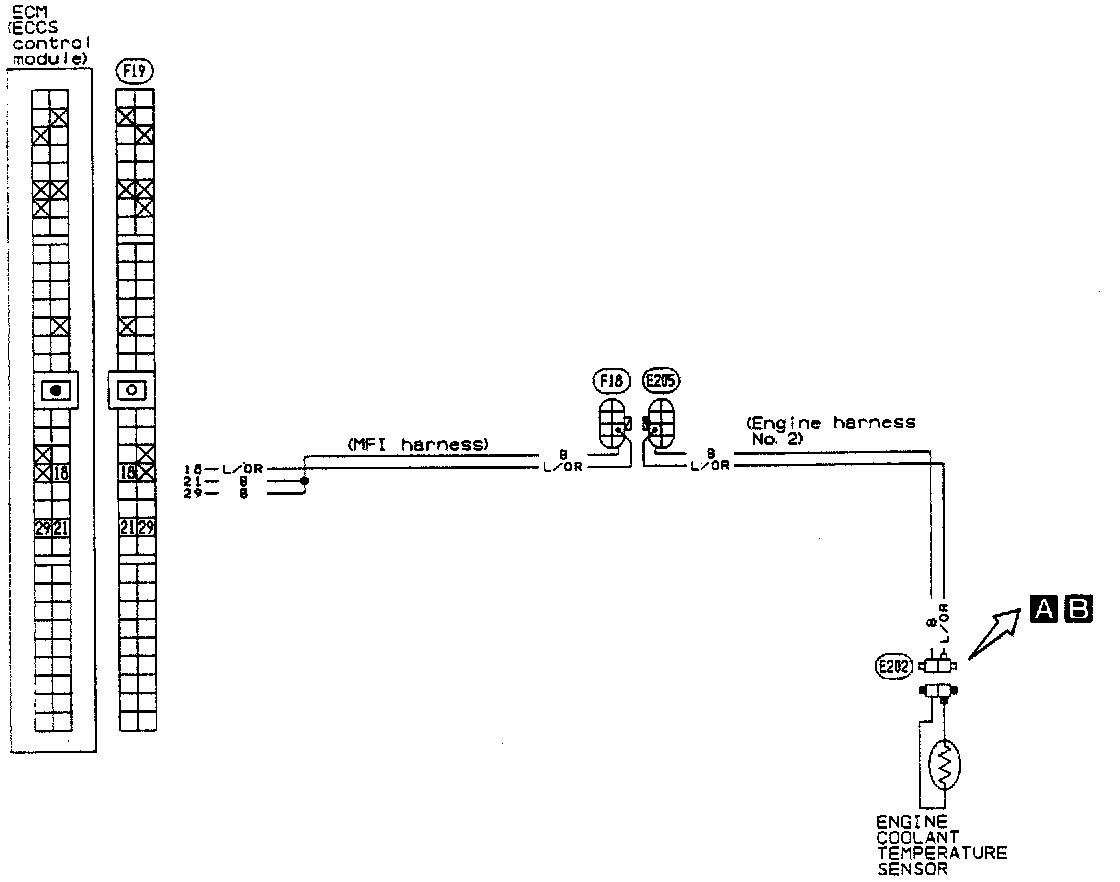

Engine Coolant Temperature Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Engine Coolant Temperature Sensor Connector Location:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
