DTC 12

The ECU detected an open or shorted circuit. (An abnormally high or low voltage is entered.)

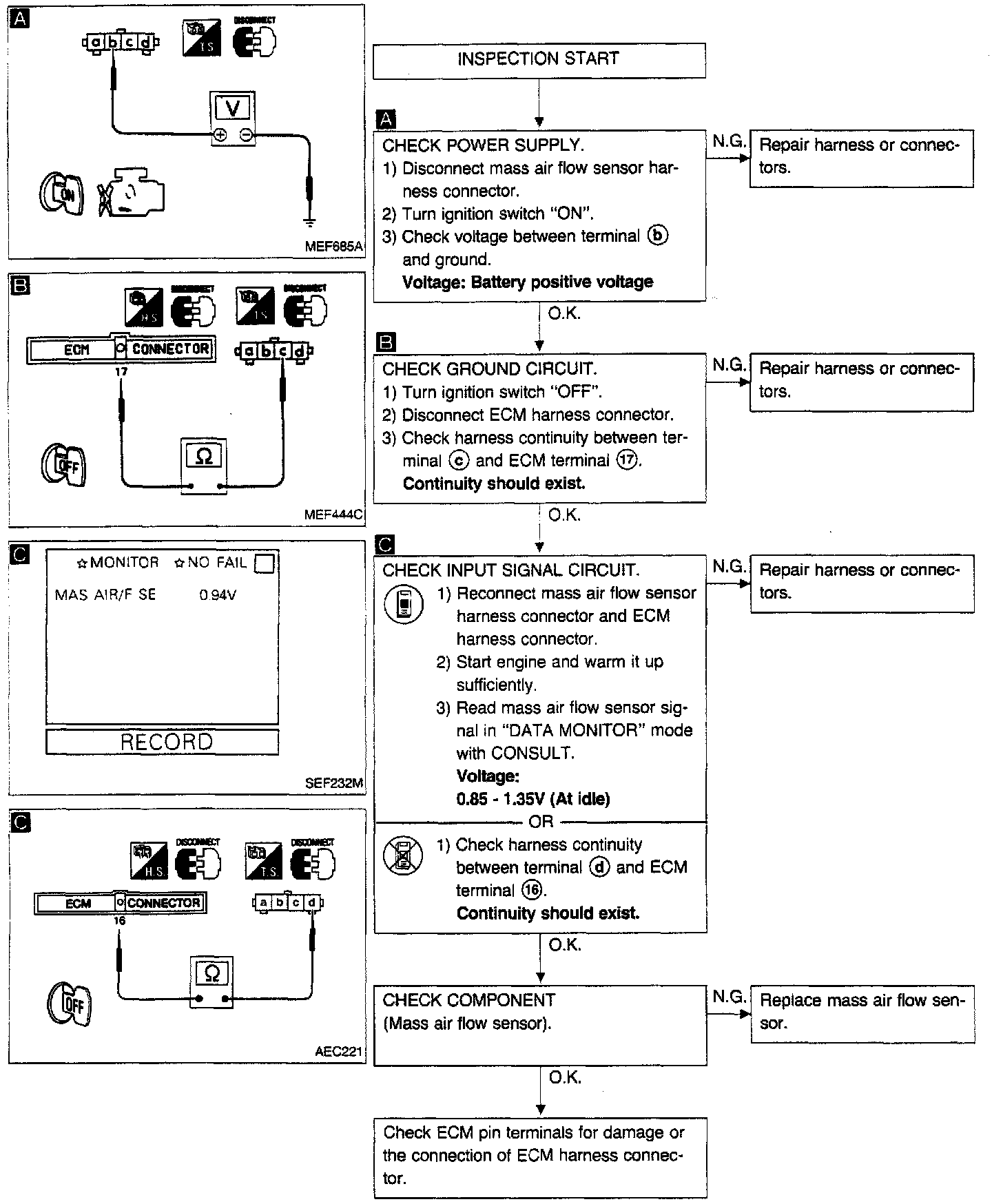

DTC 12 Mass Air Flow Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

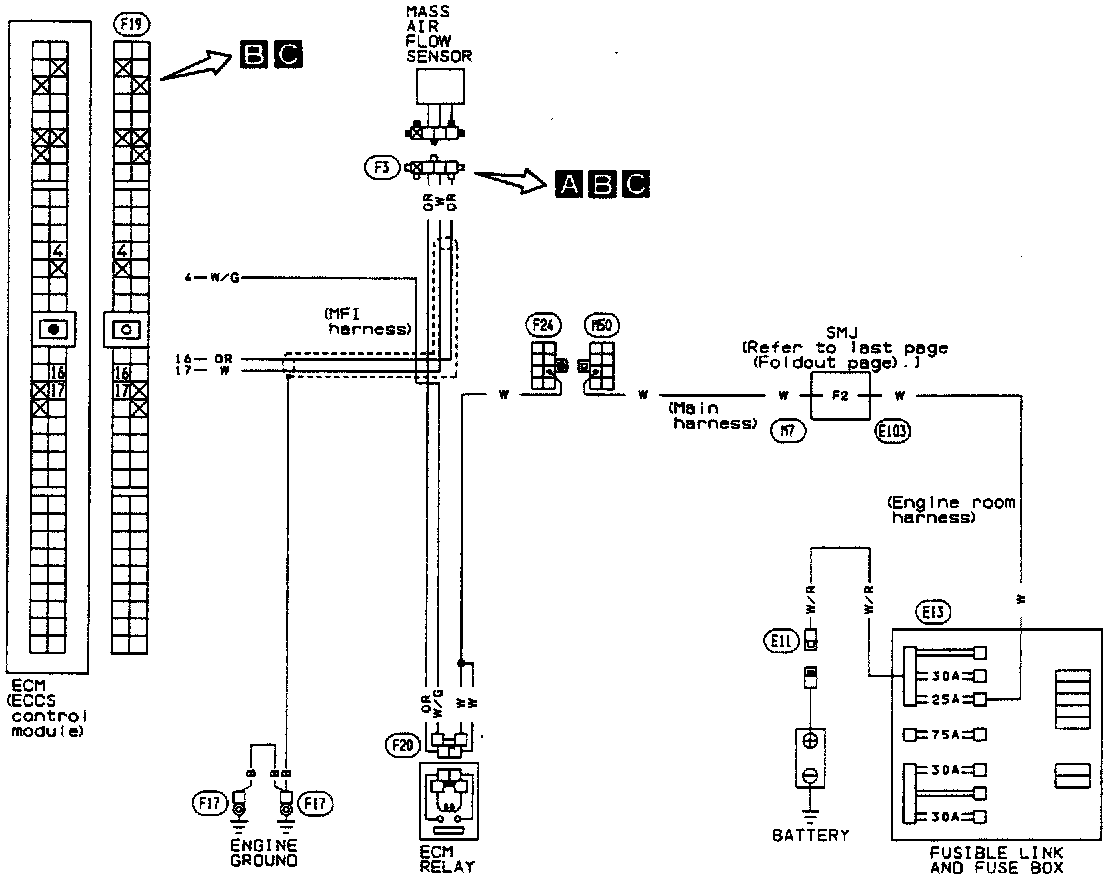

Mass Air Flow Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

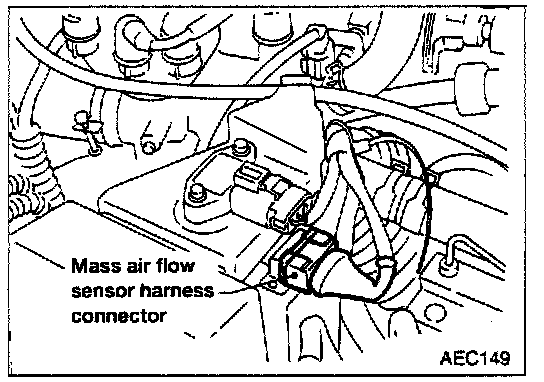

Mass Air Flow Sensor Connector Location:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
