Case Components - Disassembly

MAJOR OVERHAUL:




Gear Components

DISASSEMBLY:

CASE COMPONENTS

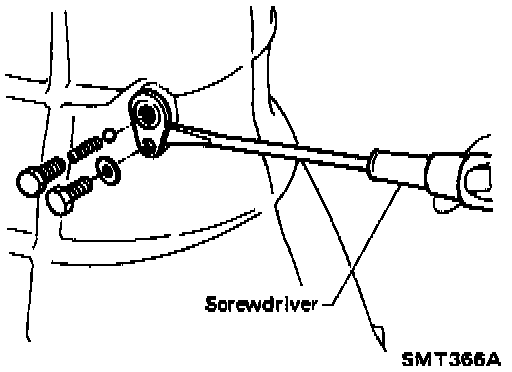

1. Remove check ball plug, check spring and check ball. Then remove interlock stopper.

If Interlock assembly is removed as a unit, the check ball can fall into transmission case.

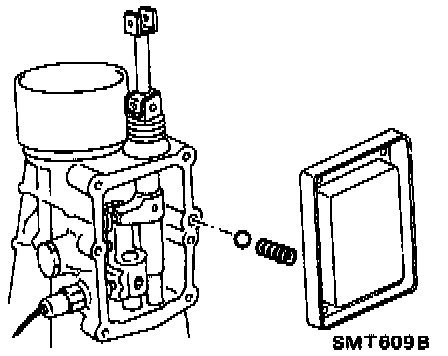

2. Remove upper cover, return spring and check ball.

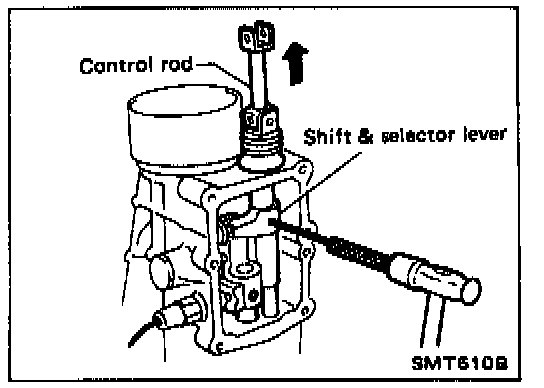

3. Drive out retaining pin from shift & selector lever.

4. Remove control rod from M/T assembly.

Be careful not to damage control rod oil seal and dust cover.

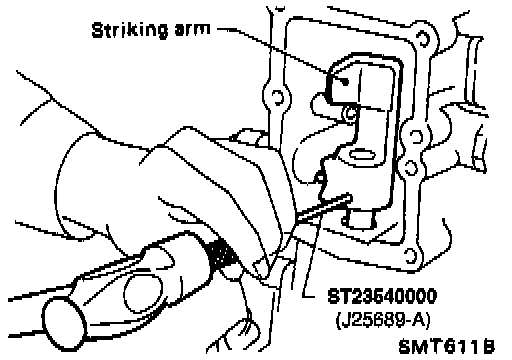

5. Drive out retaining pin from striking arm.

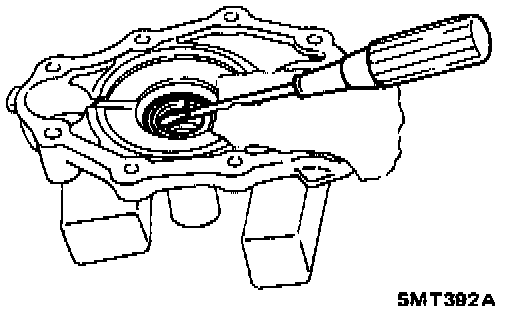

6. Remove front cover oil seal.
