Torque Converter Clutch Solenoid Valve Component Check

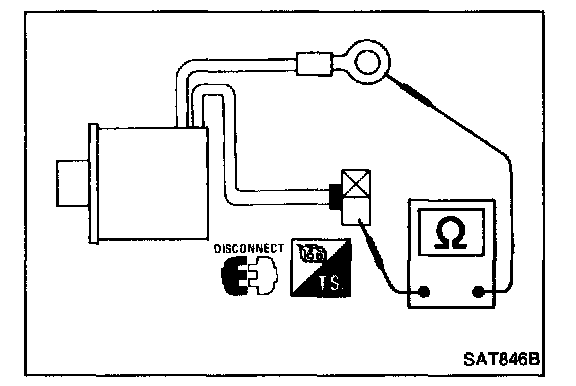

TORQUE CONVERTER CLUTCH SOLENOID VALVE

- Check resistance between two terminals.

Resistance: 10 - 20 Ohms
