EGR Control Solenoid: Testing and Inspection

EGRC - Solenoid Valve Test:

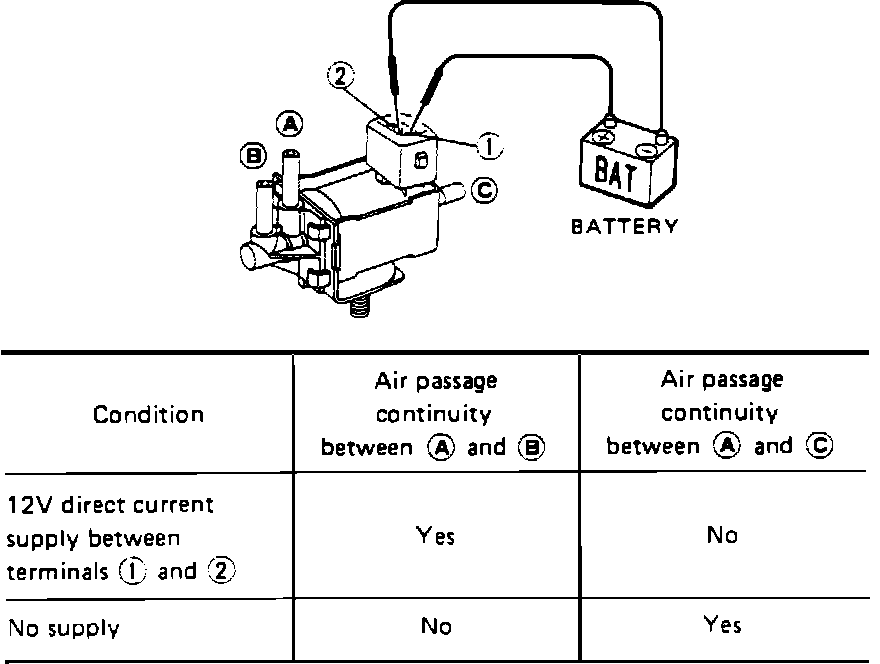

EGR SOLENOID FUNCTION TEST
Apply voltage to the solenoid terminals and check air passages for continuity as shown above.

CAUTION: Reversing polarity will damage the solenoid.

^ Replace solenoid if it fails above test.
