Control Assembly: Testing and Inspection

HVAC Control Switch Testing:

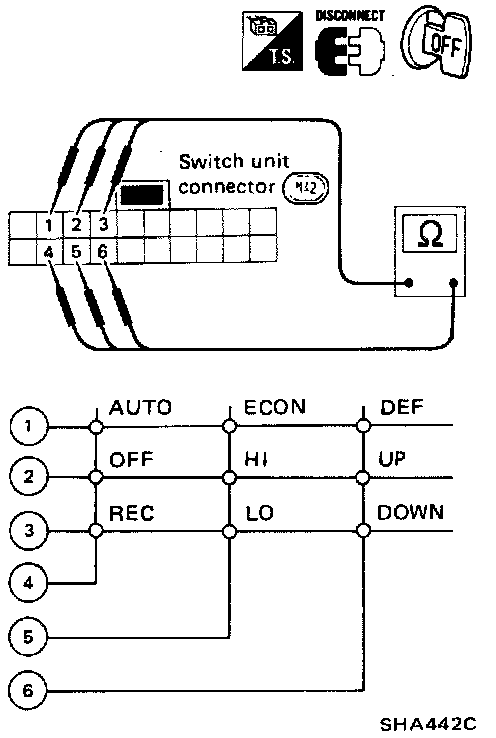

Check the resistance between the control panel switch connector terminals as shown in illustration. When pressed, the switches should be less than 500 Ohms and when open, should be infinite Ohms.

For example, when the AUTO switch is pressed, the resistance between terminals 1 and 4 should be less than 500 Ohms.
