Cruise Control Servo: Testing and Inspection

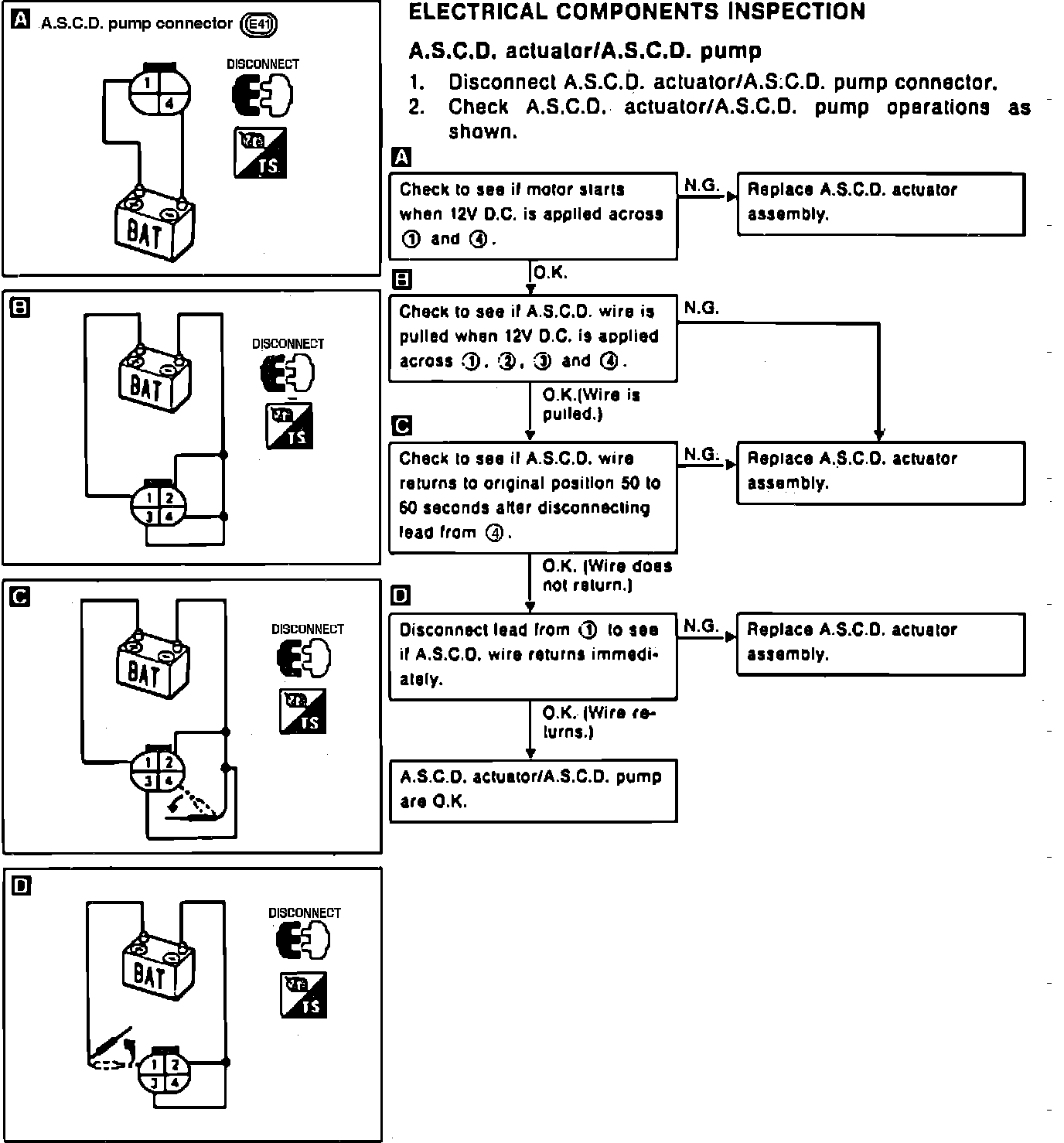

Fig. 94 Actuator Check.:





Refer to Fig. 94 for ASCD actuator test procedures.
