Diagnostic Test Procedure 10
Diagnostic Test Procedure 10

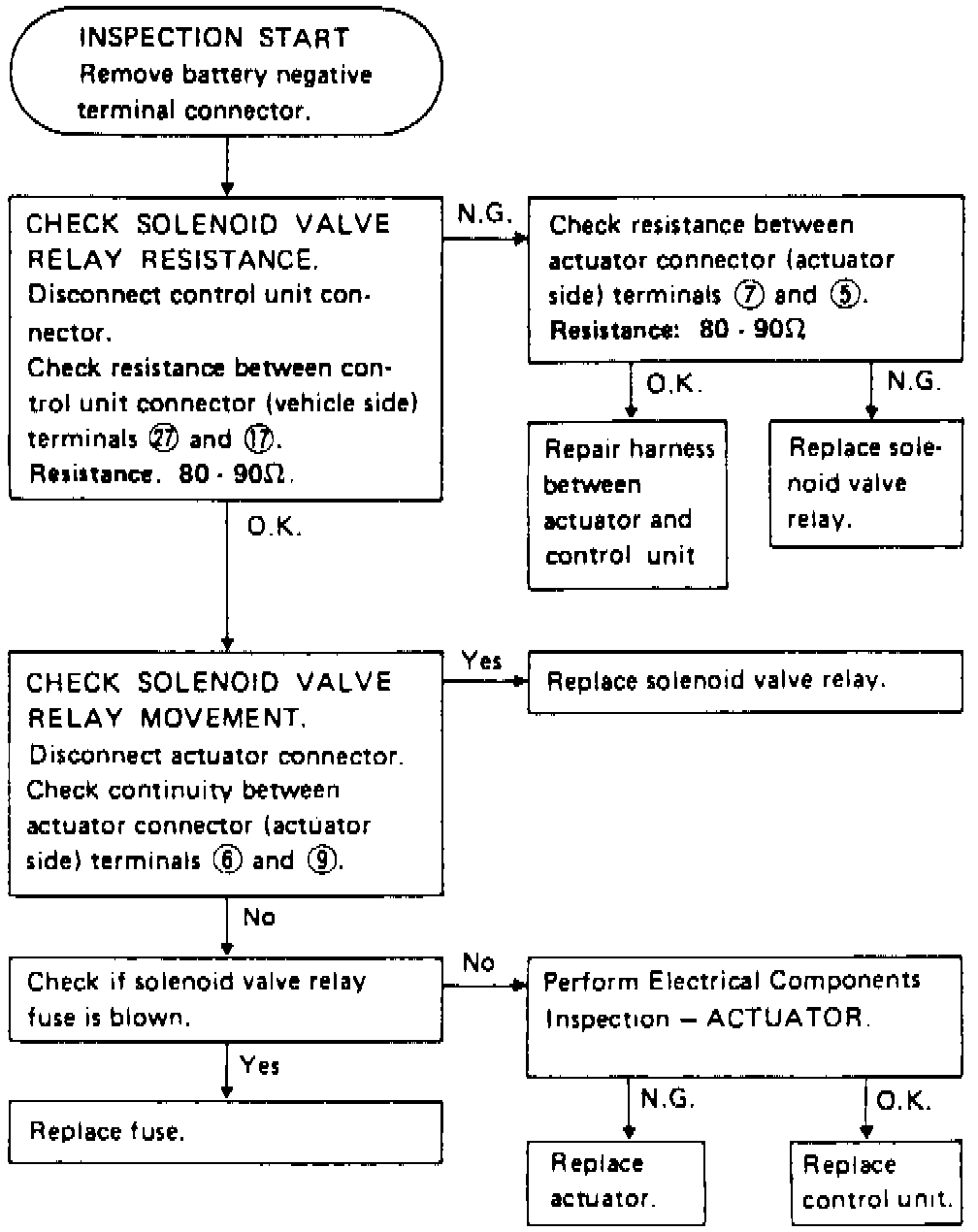

Fig. 89 Test 10: Actuator Solenoid Valve Relay:
