Curiosii for ever!: Car repair manuals for everyone.
Home >> Nissan-Datsun >> 1989 >> Stanza L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Auxiliary Air Control (AAC) Valve Circuit

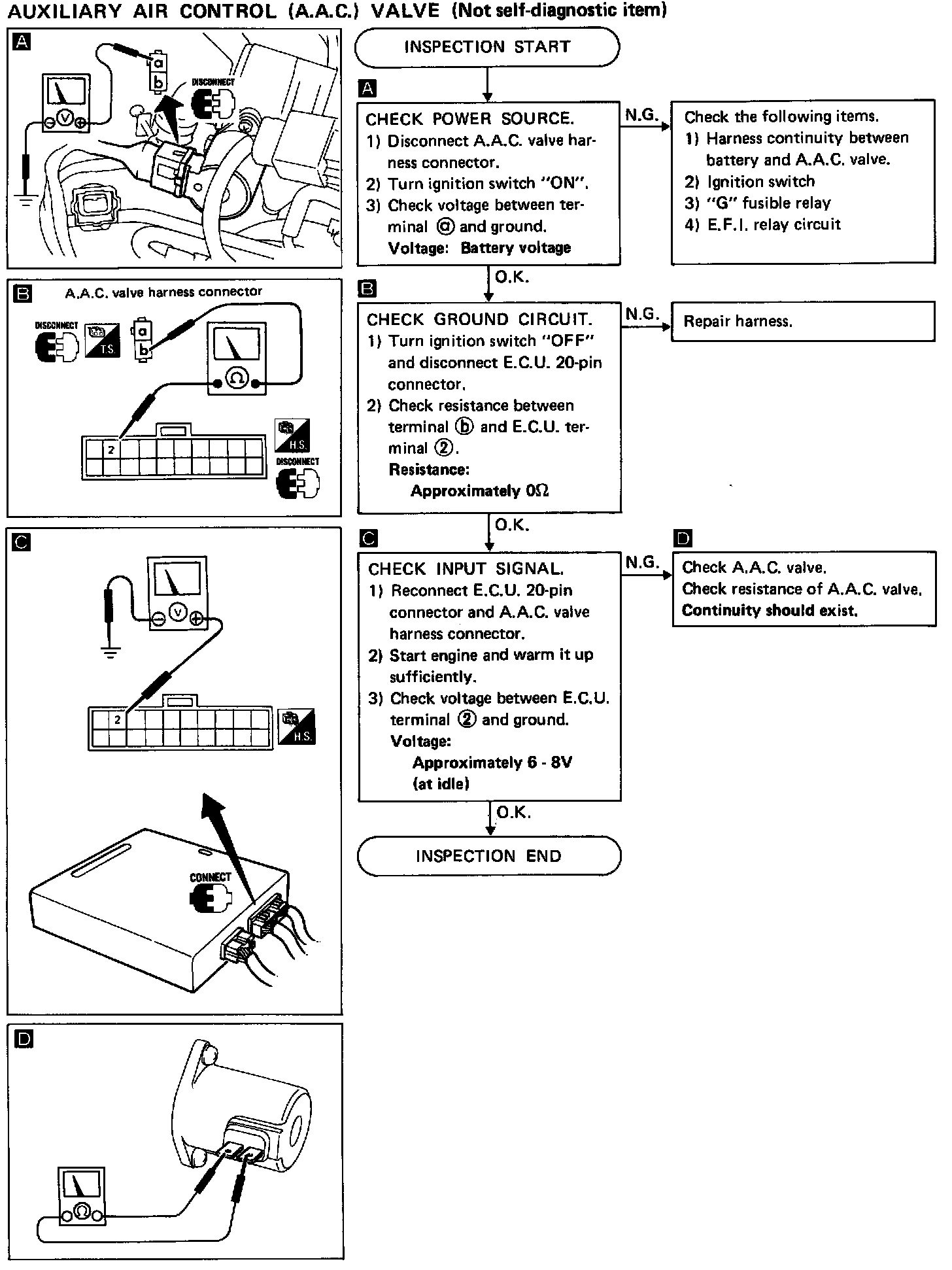

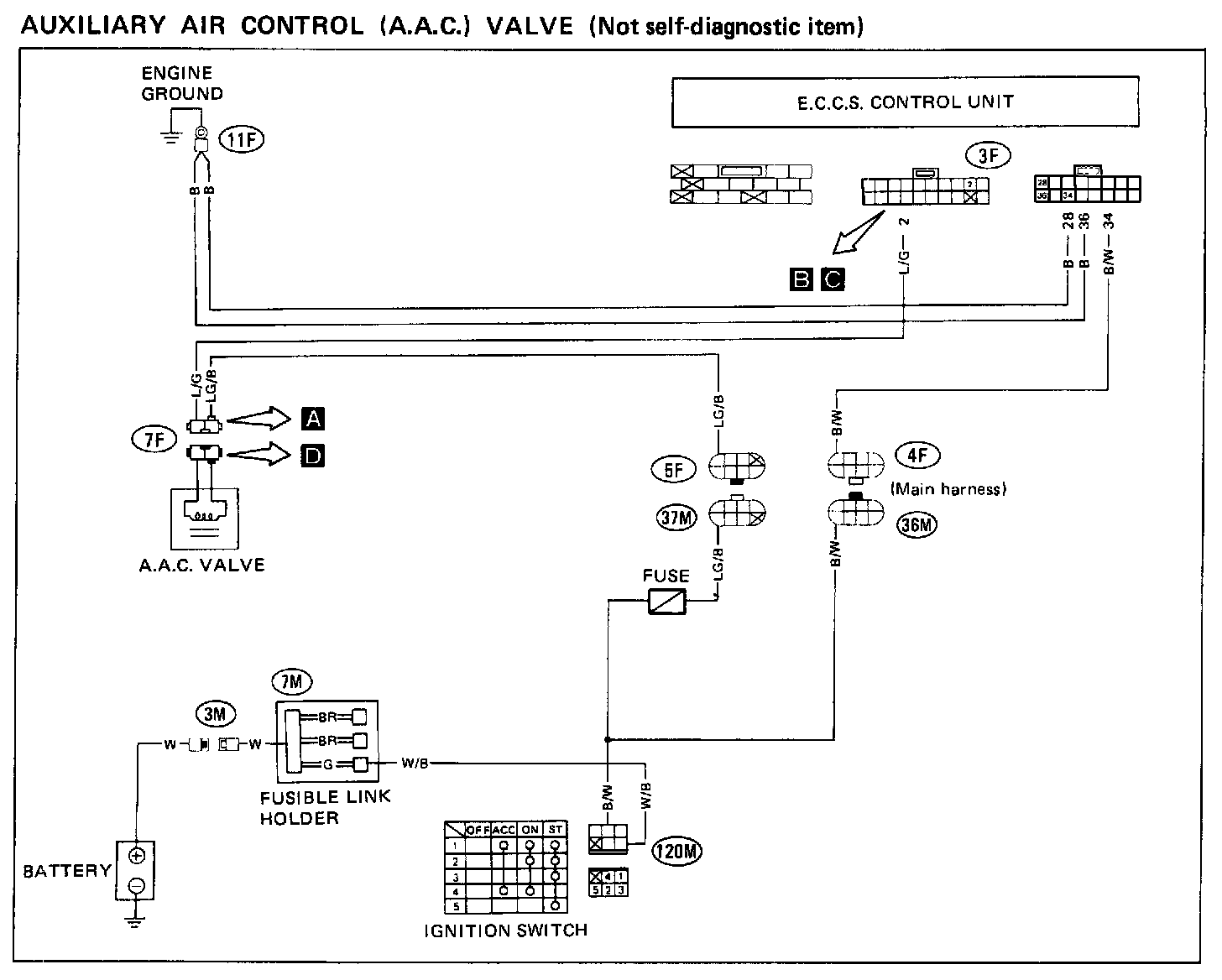

Auxiliary Air Control (AAC) Valve Circuit





1 of 2





1 of 2
