Nissan-Datsun
>>
1989
>>
Stanza L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
Exploded Views

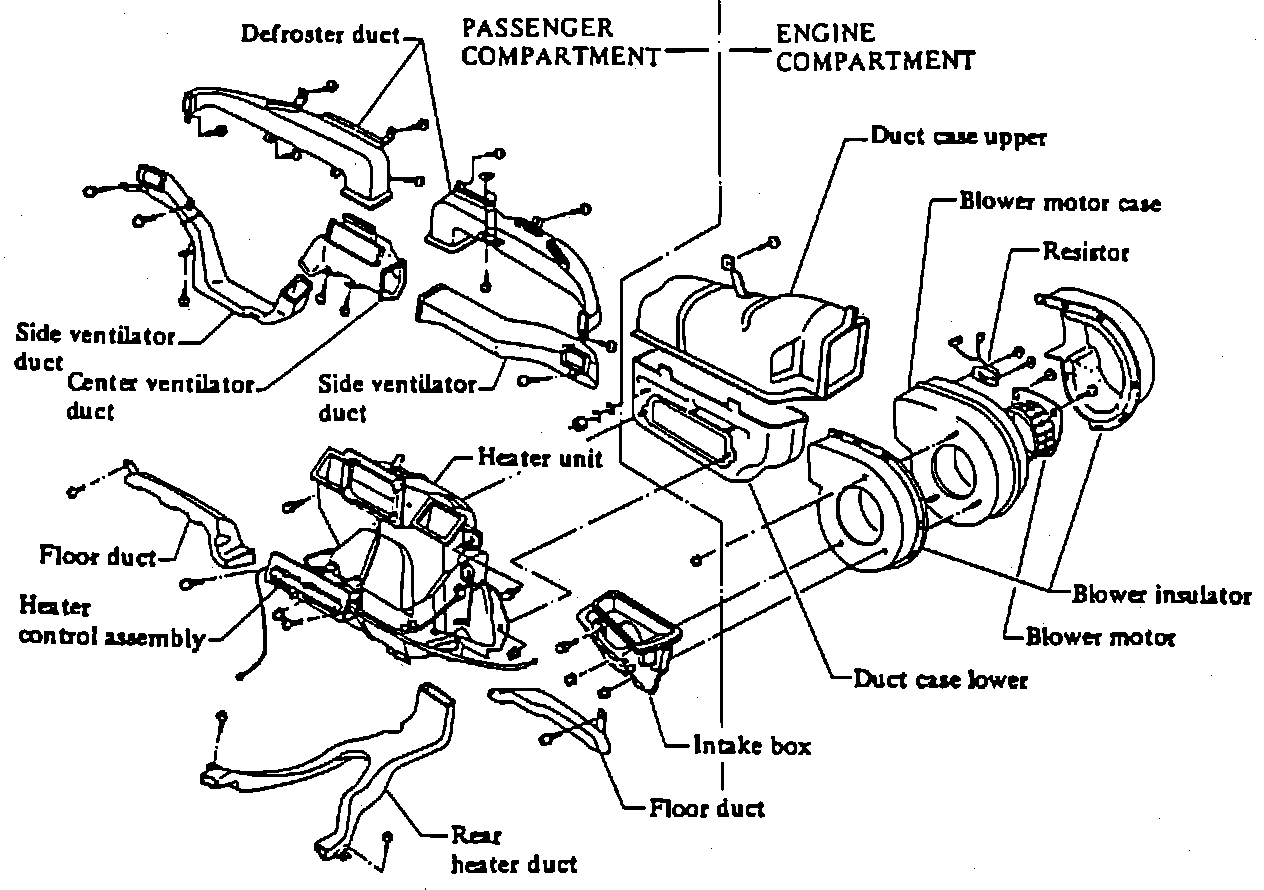

Fig. 6 Exploded View Of Heater System:
