Start Signal
Start Signal

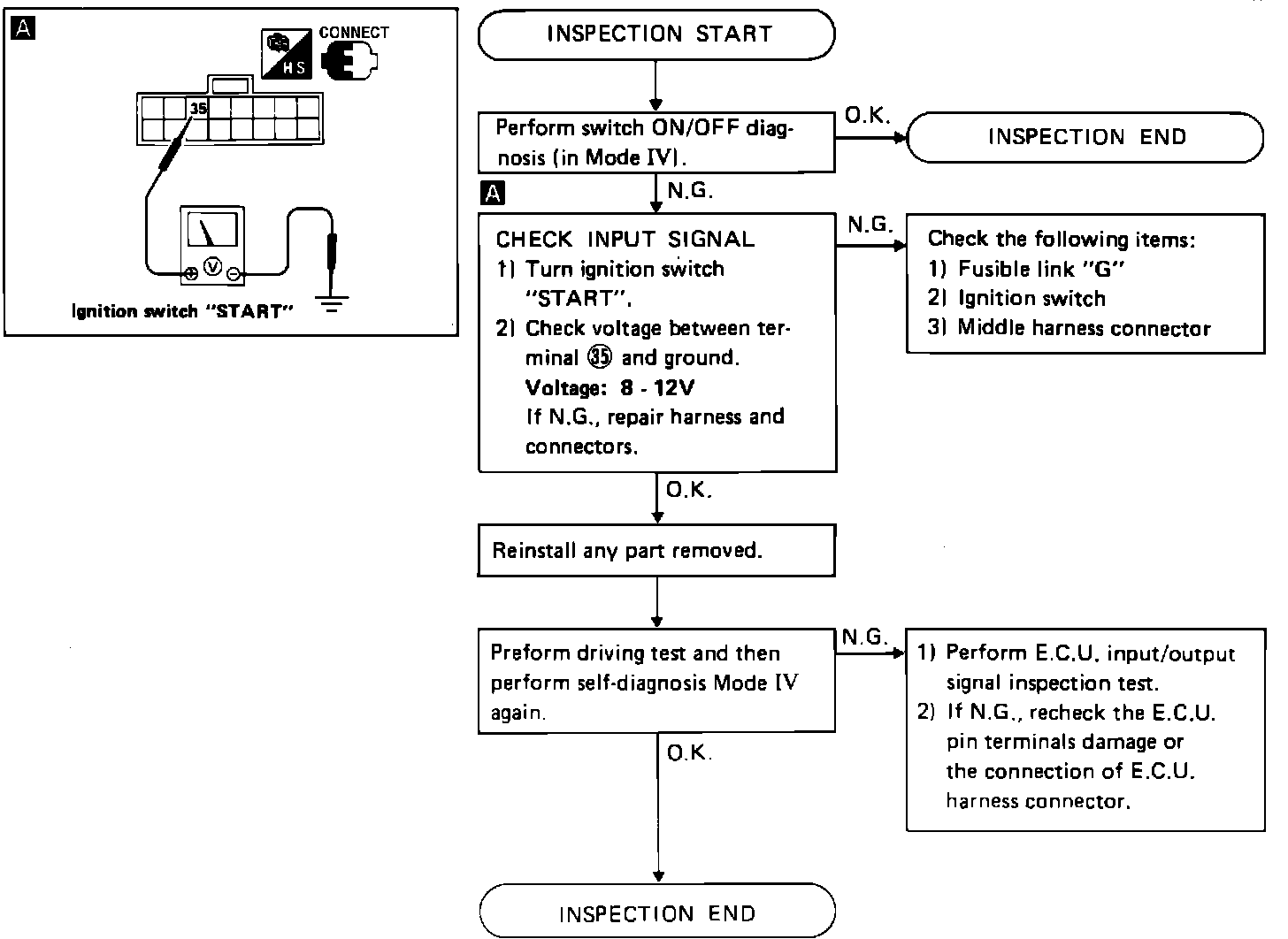

Start Signal Circuit Diagnostic Chart:
CIRCUIT TEST IMAGE

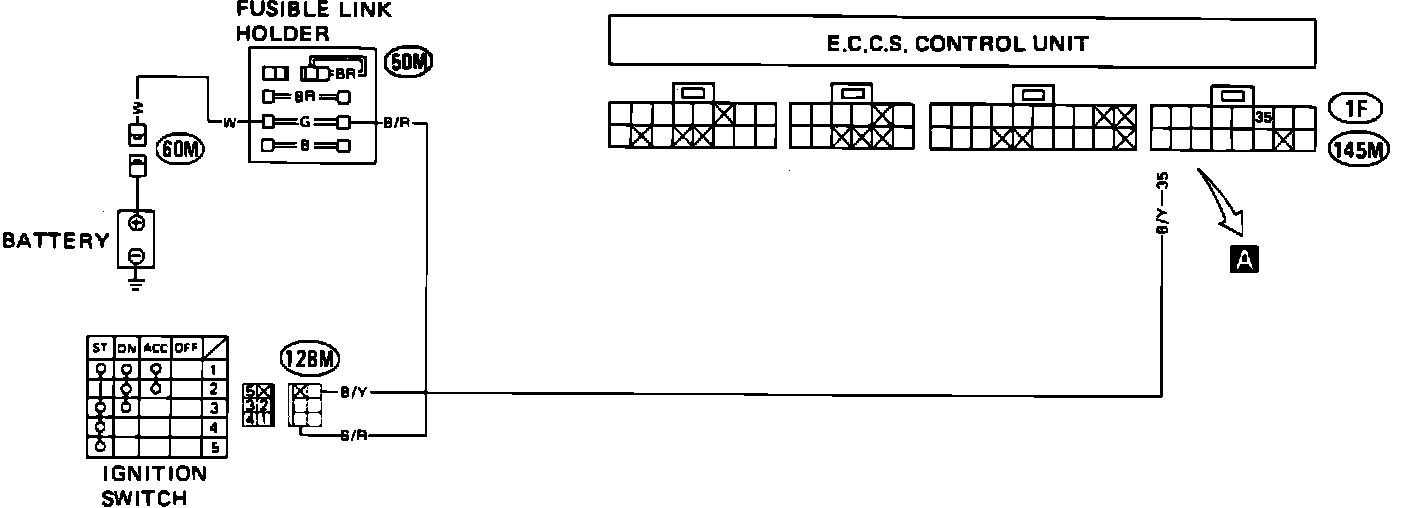

CIrcuit Diagram:
CIRCUIT TEST IMAGE
