Control Valve

Control Valve

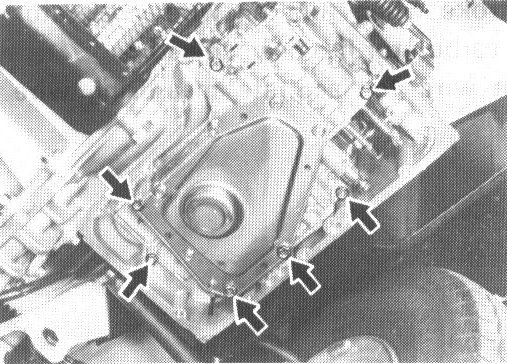

1. Remove control valve assembly.
Be careful not to drop manual valve out of valve body.

2. Disassemble, inspect and assemble control valve assembly. Refer to Control Valve Body. Control Valve Body

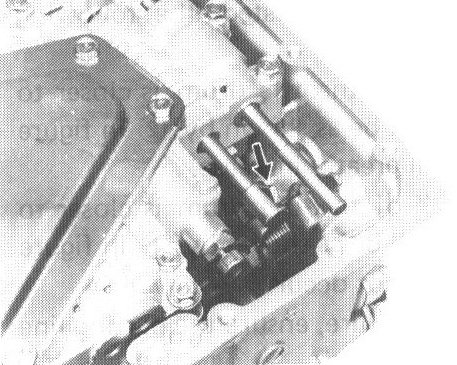

- Set manual shaft at Neutral, then align manual plate with groove in manual valve of control valve assembly.
- Install detent valve with its groove facing forward.
- After installing control valve to transmission case, make sure that selector lever can be moved to all positions.
