Deceleration Valve: Description and Operation

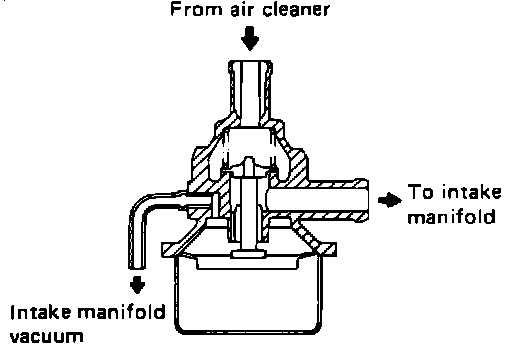

Fig. 126 A/B Valve:

The Anti-BackFire (A/B) Valve is designed to sense high manifold vacuum (during deceleration) and open an air passage into the intake manifold. This prevents backfiring (due to unburned fuel combining with air supplied by the AIV system) and reduces excessive HC emissions.
