Compressor Clutch Relay: Testing and Inspection

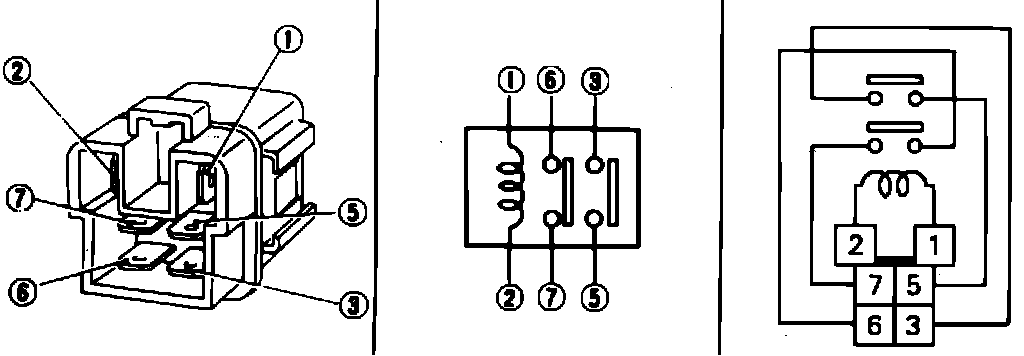

Relay Test (2 Make):

1. Apply voltage to the terminals 1 and 2 and check for continuity between terminals 6 and 7.
2. Apply voltage to the terminals 1 and 2 and check for continuity between terminals 3 and 5.
Replace the relay if it fails the above test.
