Sentra Hatchback Coupe L4-1597cc 1.6L SOHC (GA16i)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Testing Procedures
>>
System Diagnosis
>>
OD Cancel Circuit Circuit
OD Cancel Circuit Circuit

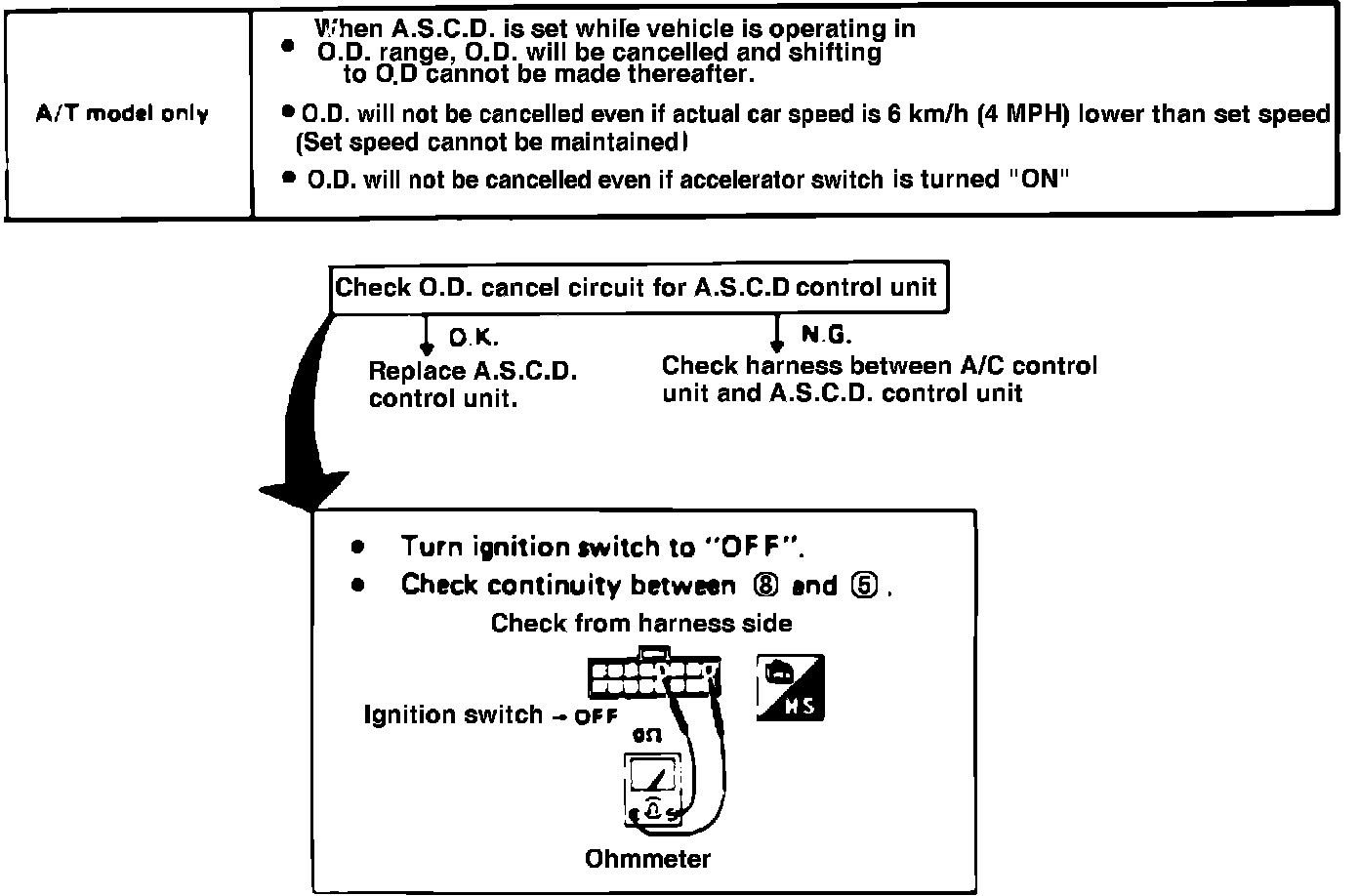

Fig. 19 Diagnostic Procedure 7 (OD Cancel Circuit Check).:
