Service Data and Adjustments

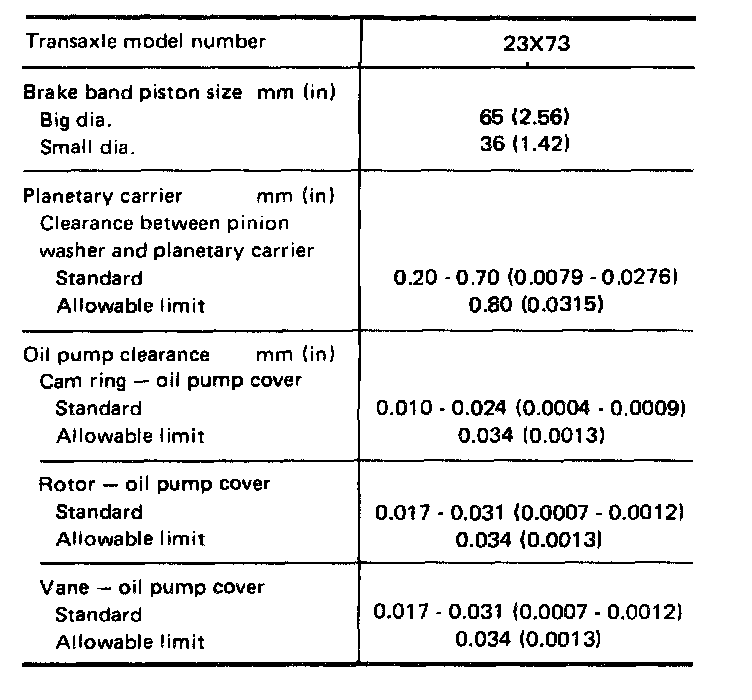

Specification And Adjustment (RL4F02A) Part 1:

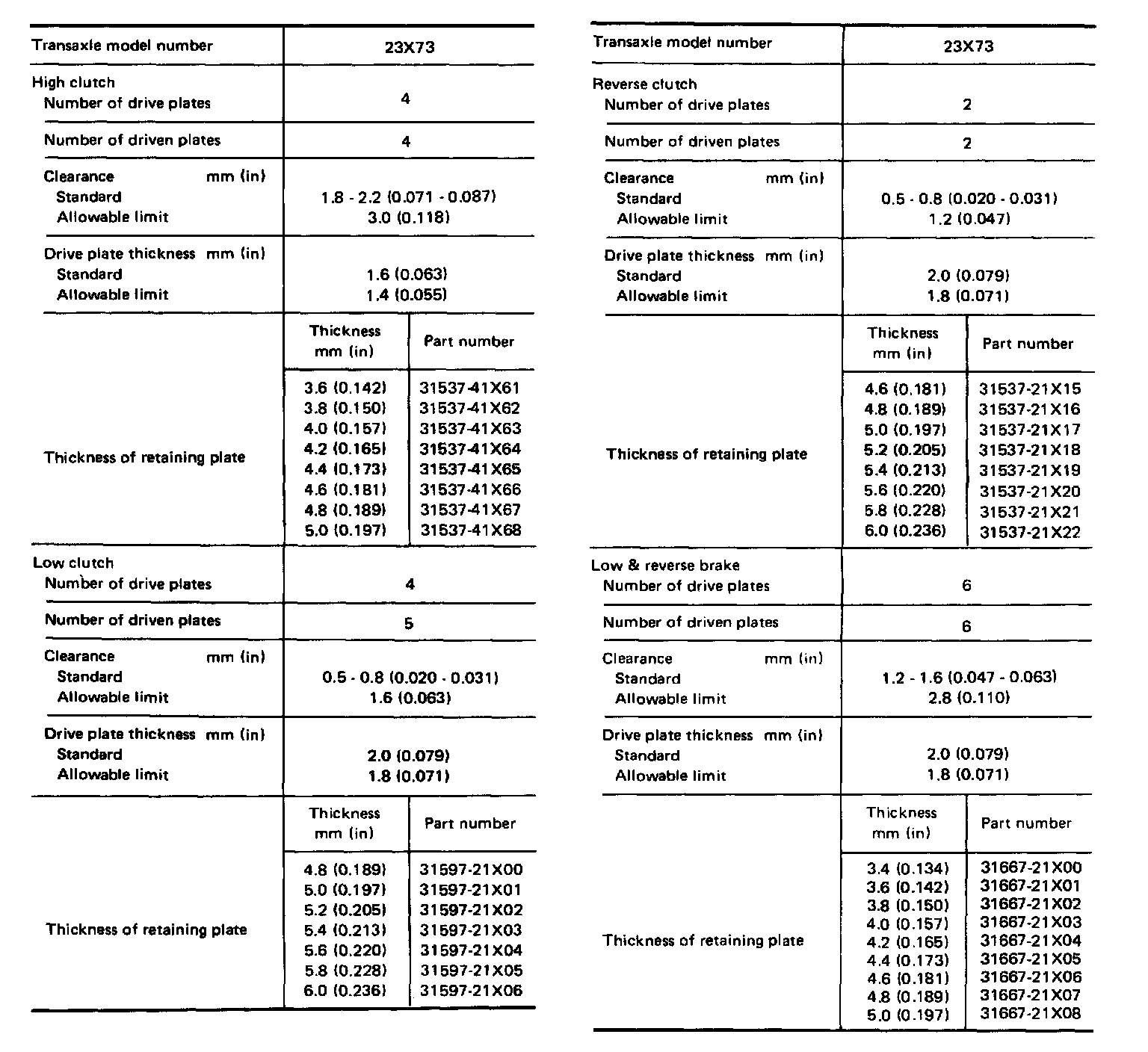

Specification And Adjustment (RL4F02A) Part 2:
Clutch pack end play: 0.4 - 0.8 mm (0.016 - 0.031 in)

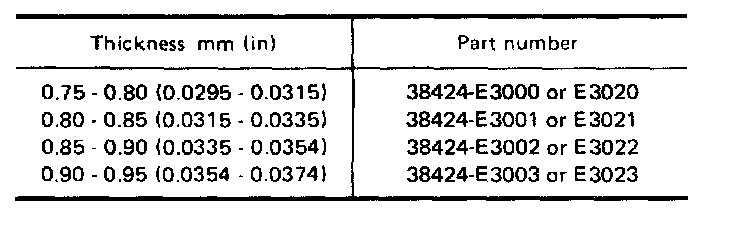

Clutch Pack Thrust Washer:
Total end play: 0.25 - 0.55 mm (0.0098 - 0.0217 in)

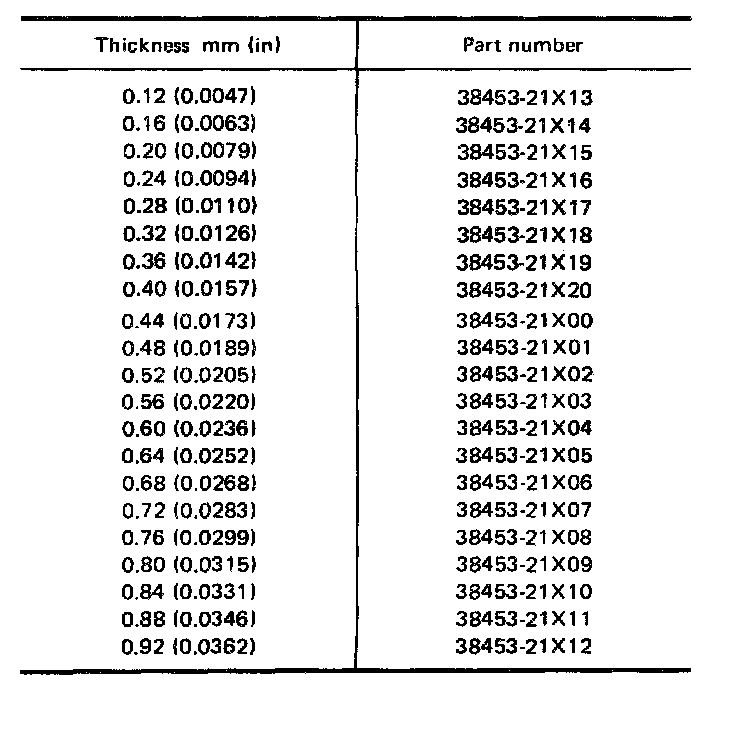

Total End Play - Oil Pump Housing Bearing Race:

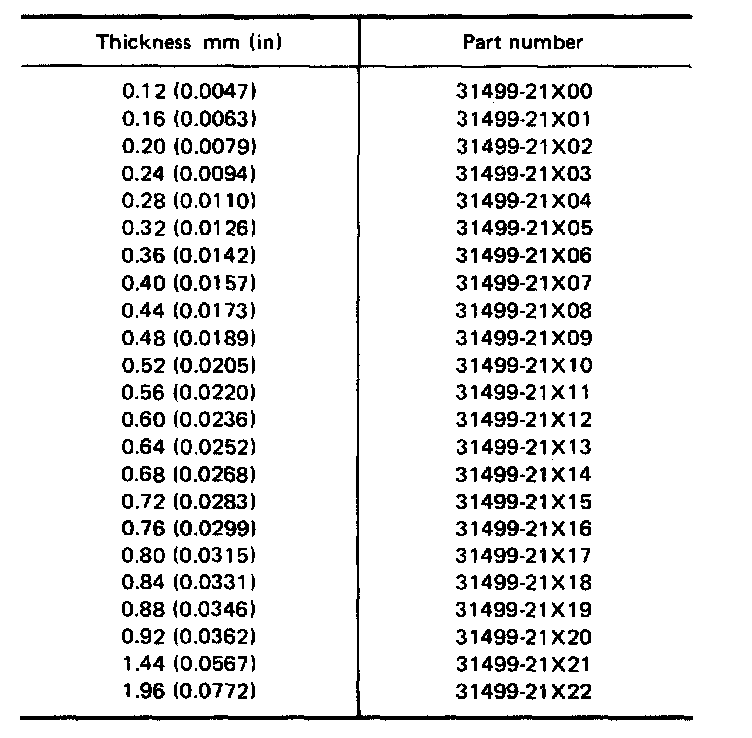

Total End Play - Differential Side Bearing Adjusting Shim:
Output Shaft Bearing Adjusting Shim:
Idler Gear Bearing Adjusting Shim:
Clearance between side gear and differential case with washer: 0.1 - 0.2 mm (0.004 - 0.008 in)

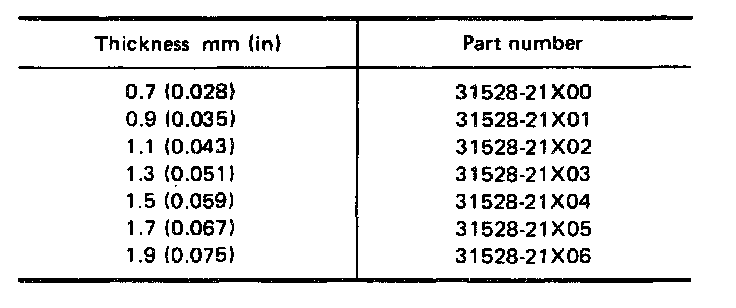

Side Gear Thrust Washer:

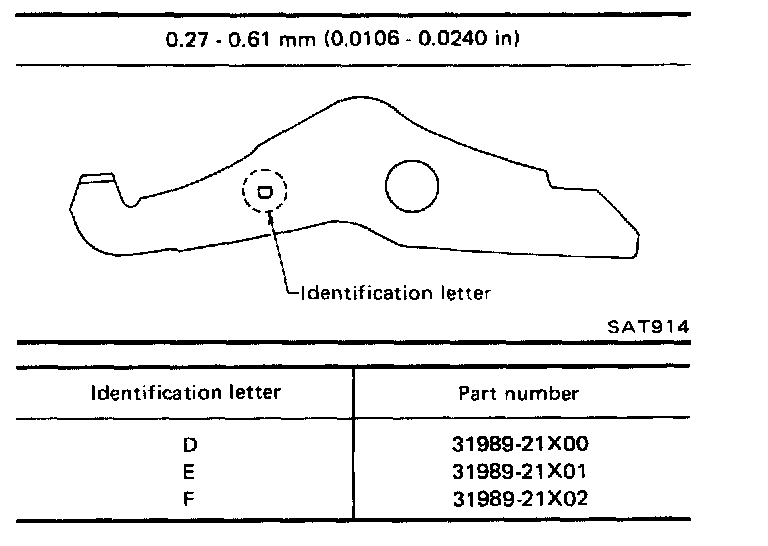

Parking Pawl - Clearance "A":

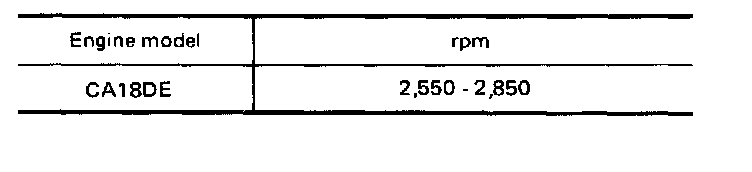

Stall Revolution:
