Tach Filter: Testing and Inspection

Ignition Resistor Test:

1. Disconnect ignition resistor terminal.

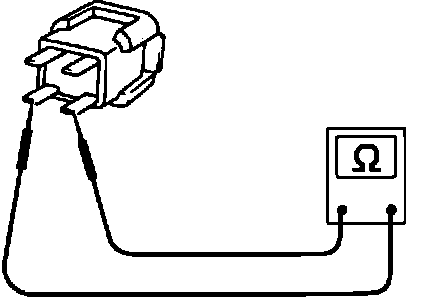

2. Using an ohm meter measure resistance across the terminals as shown.
If not approximately 2.2k ohm, replace ignition resistor.
