Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1989
>>
Pulsar L4-1809cc 1.8L DOHC (CA18DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Power Supply Testing
Power Supply Testing

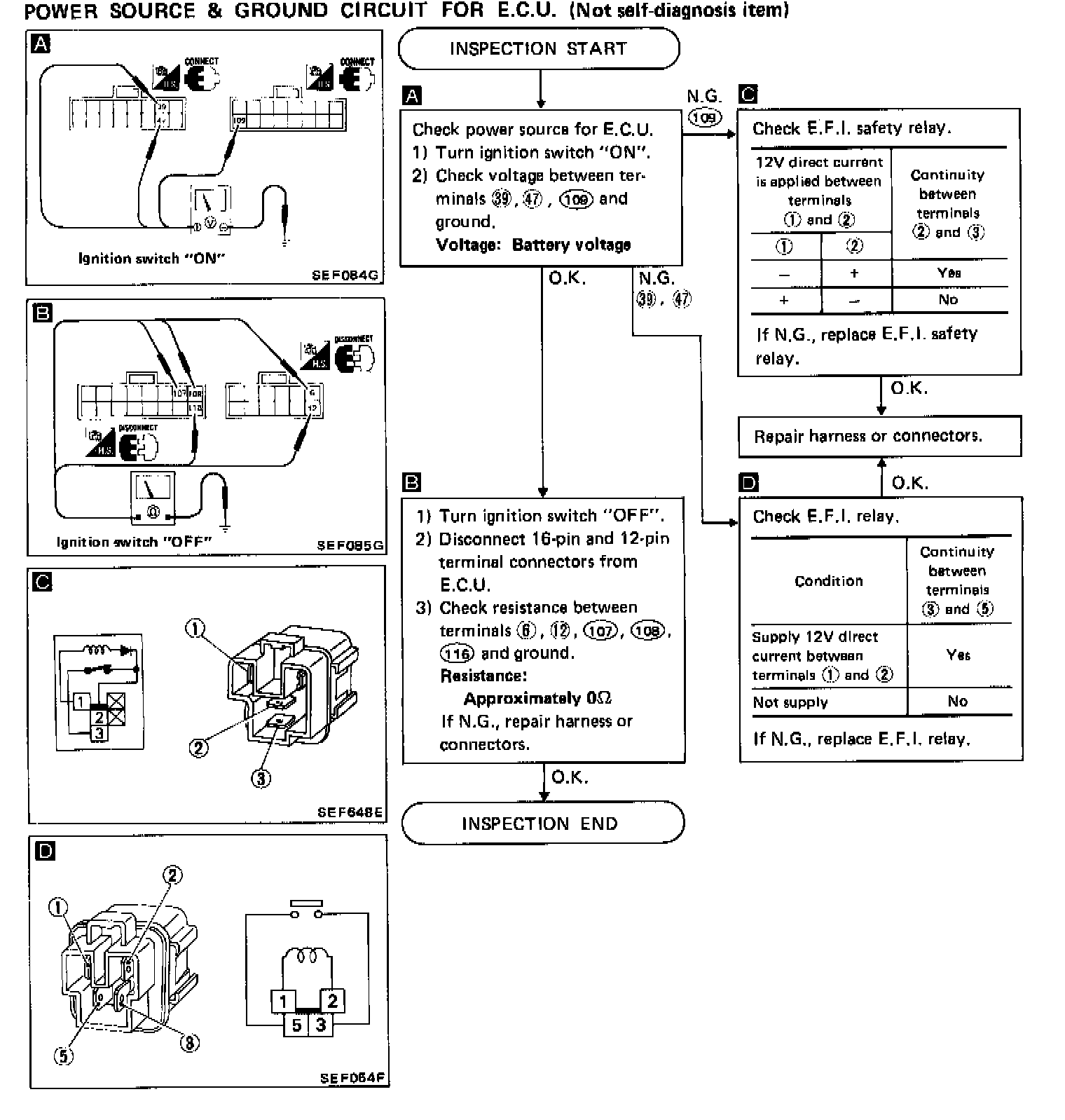

DIAGNOSTIC CHART
WIRING DIAGRAM
