Auxiliary Air Control (AAC) Valve Circuit
Auxiliary Air Control (AAC) Valve Circuit

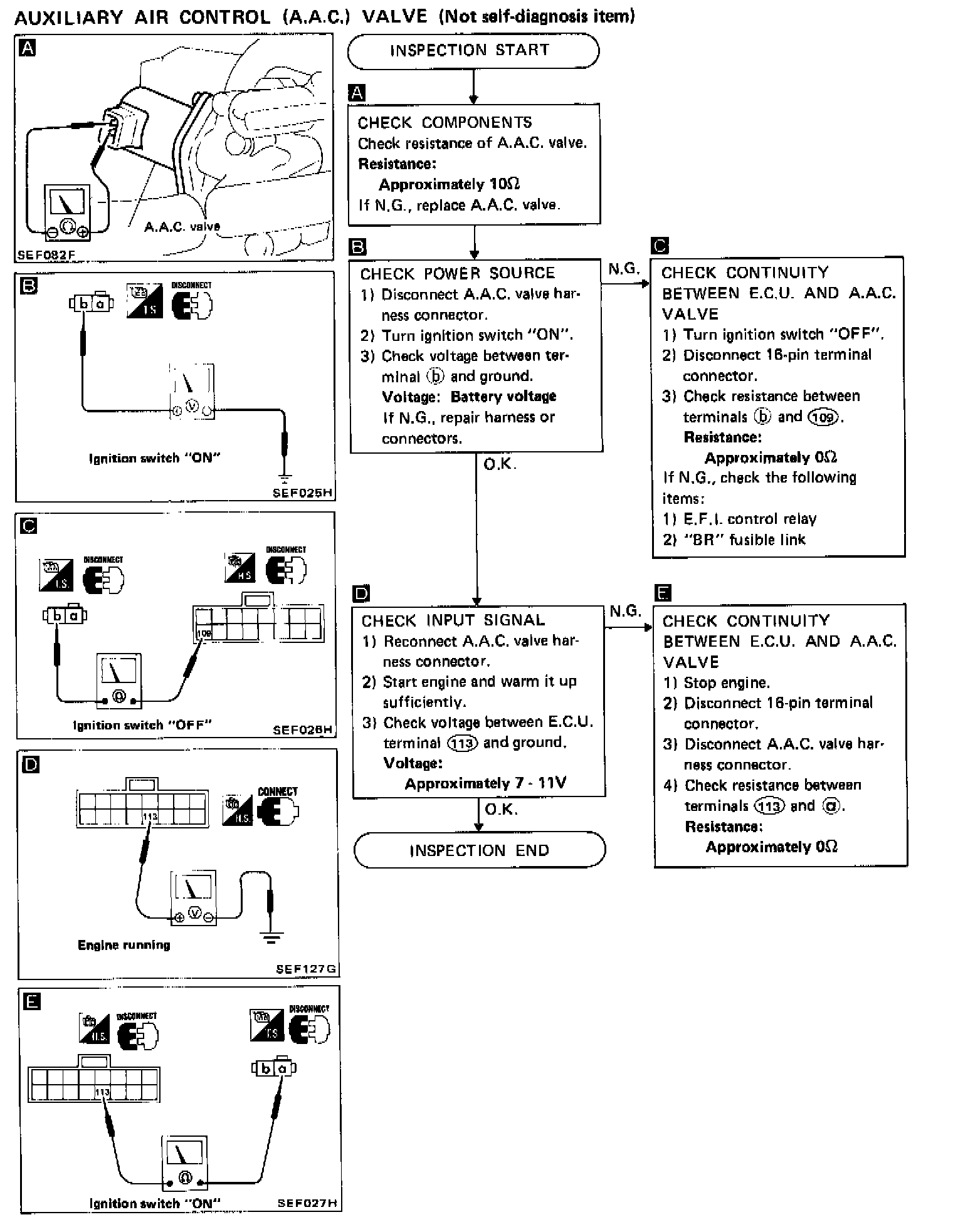

DIAGNOSTIC CHART

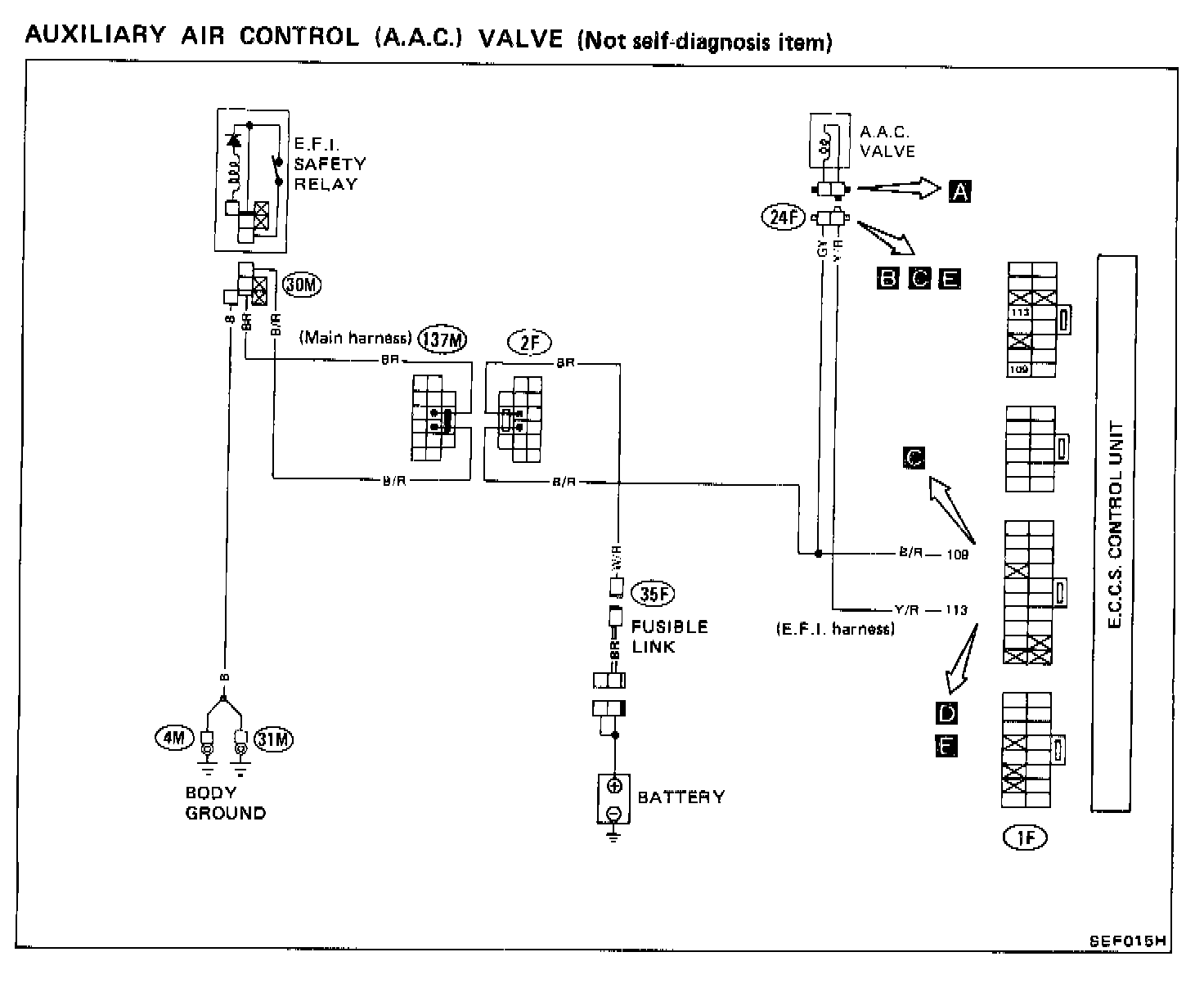

WIRING DIAGRAM
