Nissan-Datsun
>>
1989
>>
Pulsar L4-1809cc 1.8L DOHC (CA18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
A/T Assembly
A/T Assembly

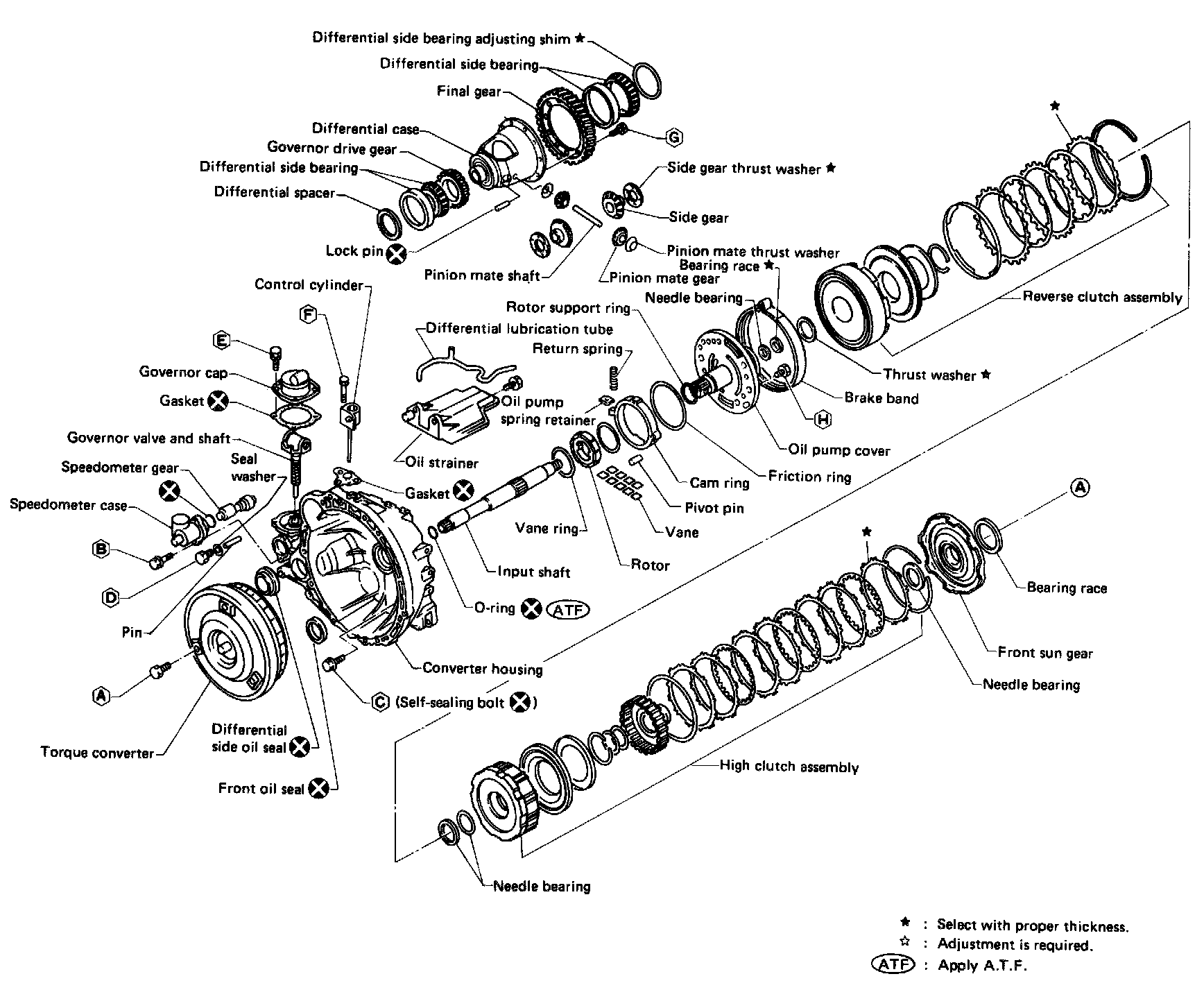

RL4F02A Exploded View:

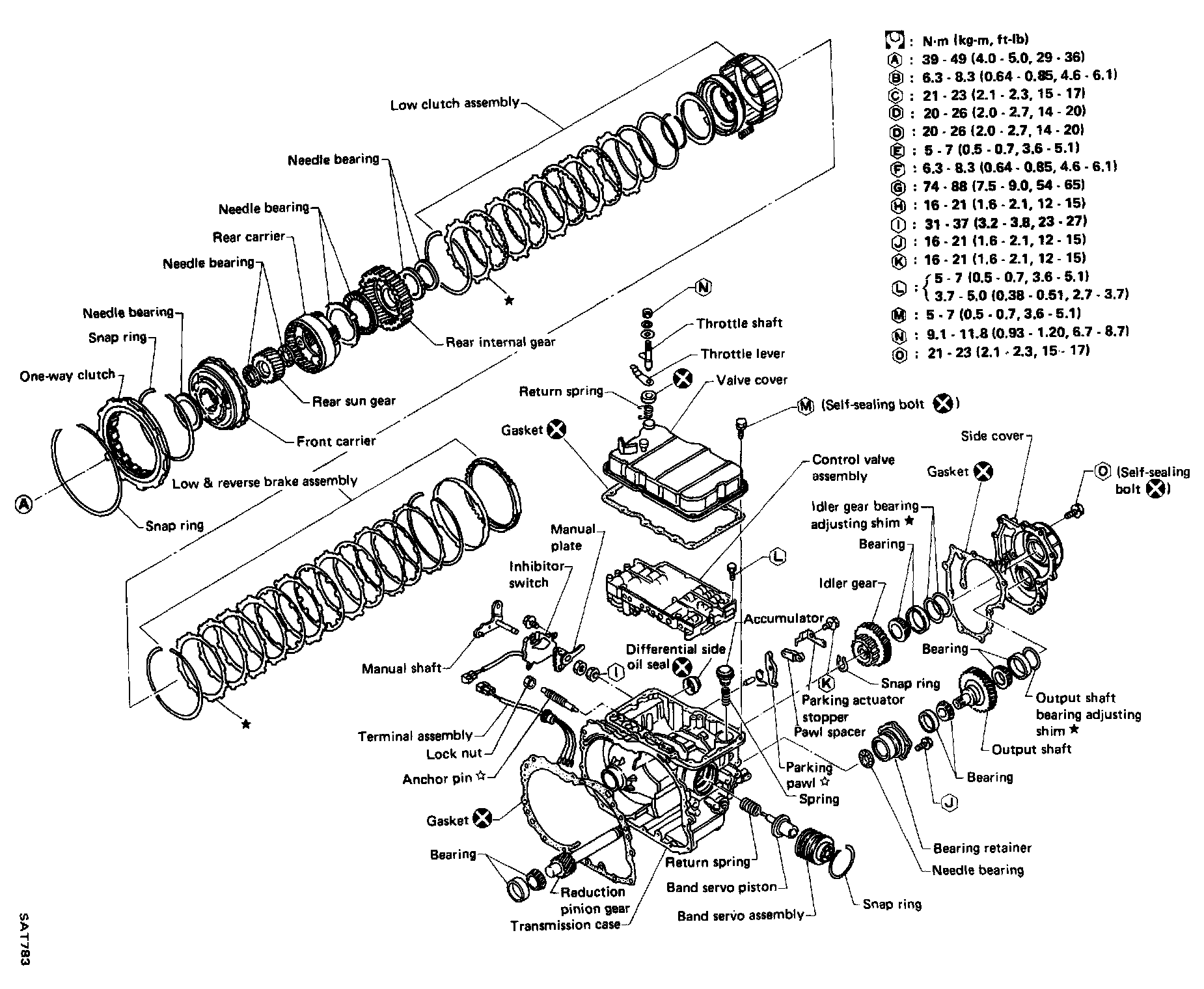

RL4F02A Exploded View:
