Service Data and Adjustments

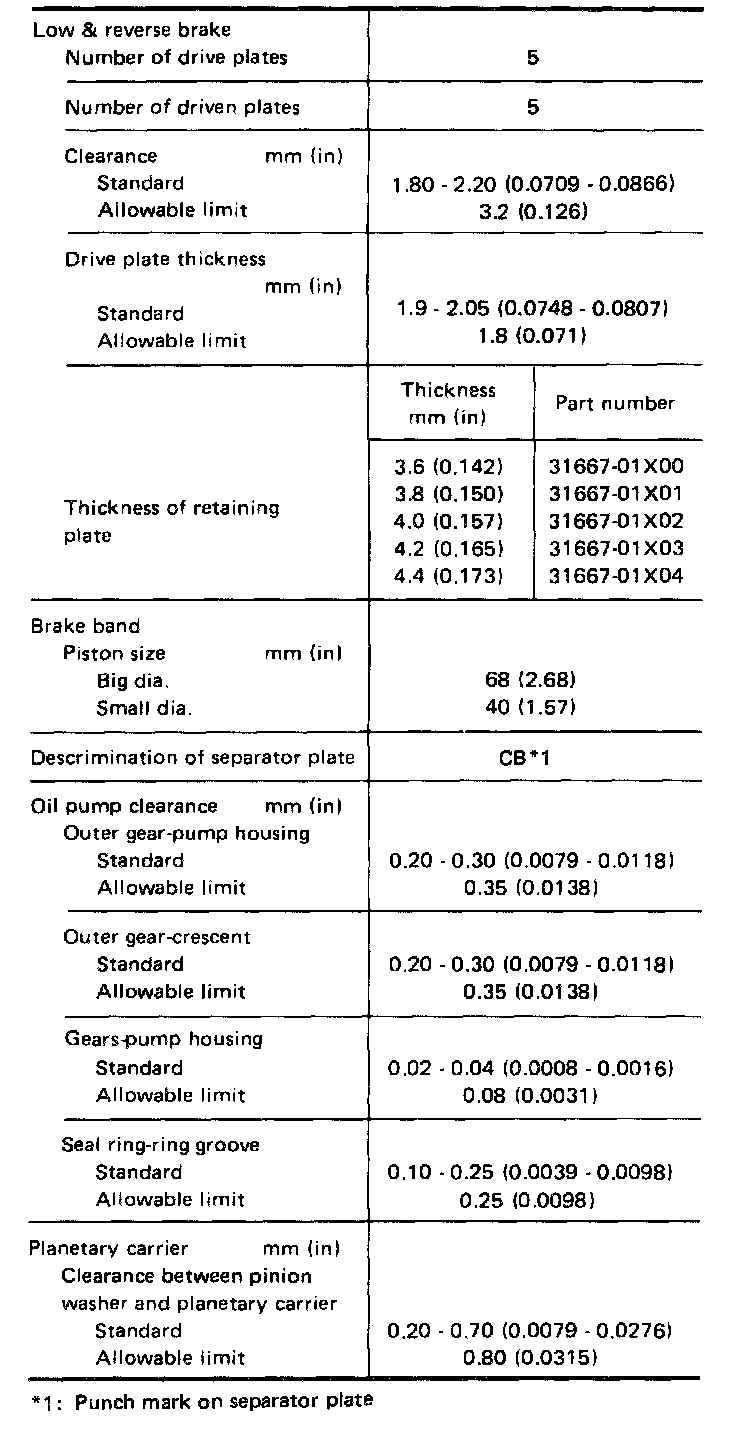

Specifications And Adjustment (RL3F01A) Part 1:

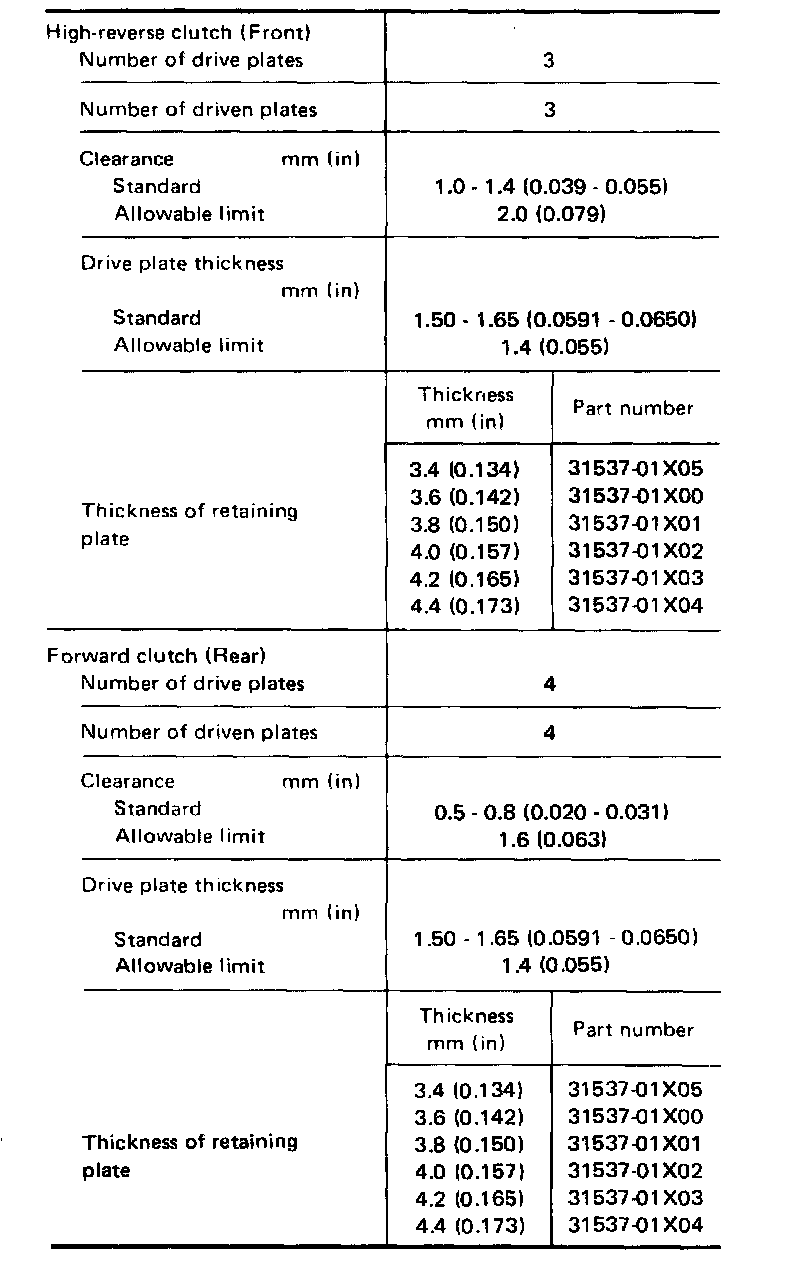

Specifications And Adjustment (RL3F01) Part 2:
OUTPUT SHAFT BEARING PRELOAD
0.35 - 0.47 N.m (3.6 - 4.8 kg-cm, 3.1 - 4.2 in-lb)

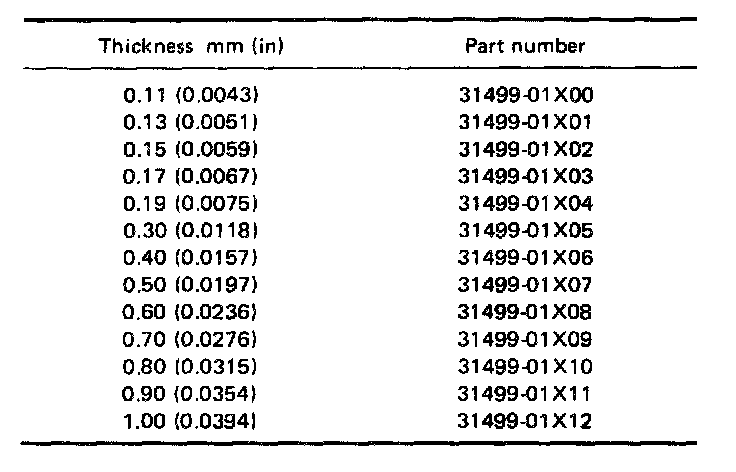

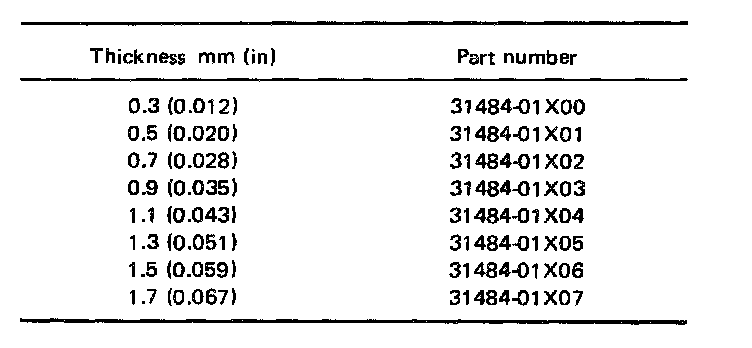

Output Shaft Bearing Preload - Adjusting Shim:
OUTPUT SHAFT END PLAY
0.25 - 0.55 mm (0.0098 - 0.0217 in)

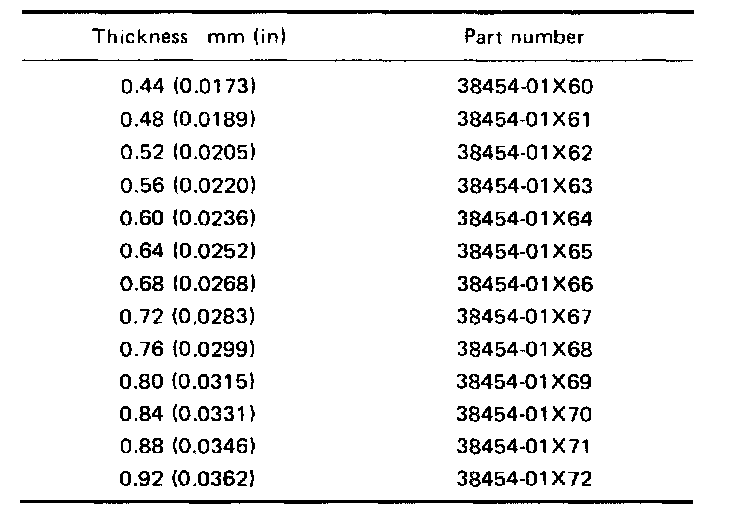

Output Shaft End Play Adjusting Shim:
Differential side bearing preload: 5.9 - 7.4 N.m (60 - 75 kg-m. 52 - 65 in-lb
Differential Side Bearing Preload Adjusting Shim:

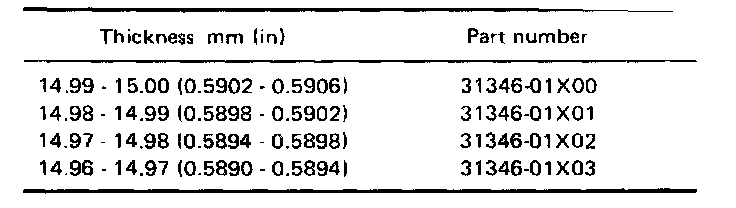

Oil Pump Outer Gear:

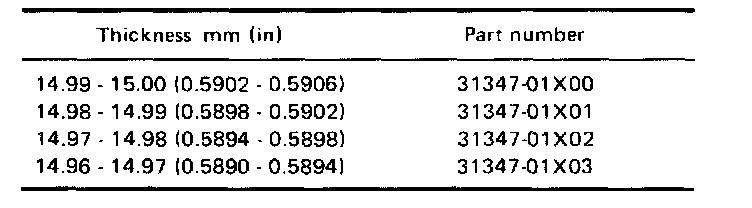

Oil Pump Inner Gear:
Clearance between side gear and differential case with washer: 0.3 mm (0.012 in) or less

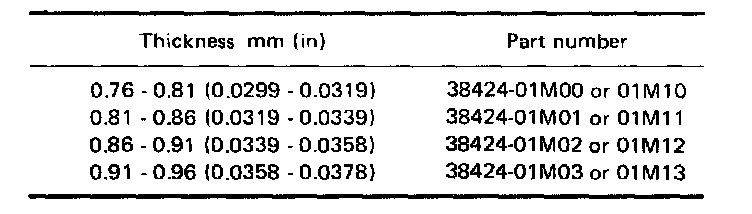

Side Gear Thrust Washer:

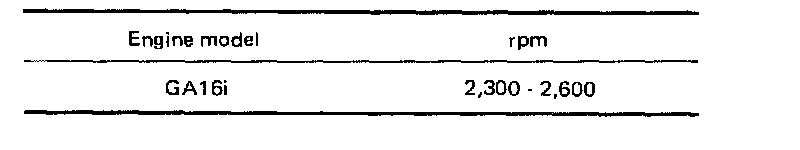

Stall Revolution:
