EGR Control Solenoid: Testing and Inspection

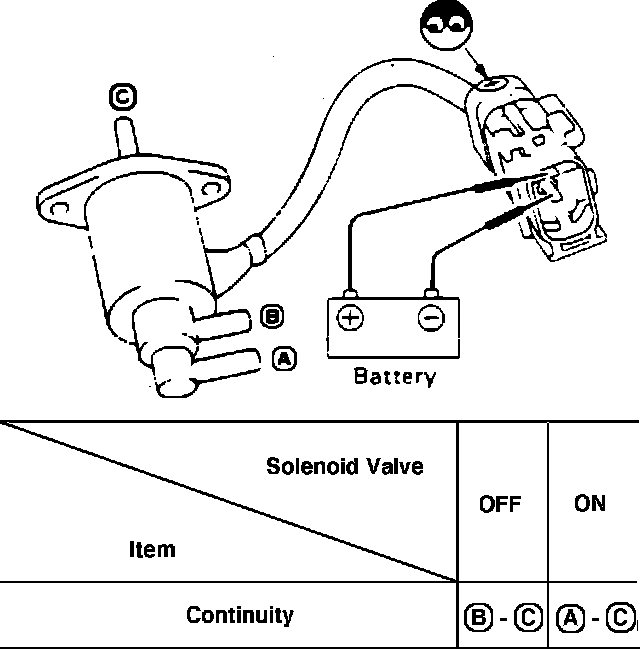

Fig. 175 Solenoid Function Test:

EGR SOLENOID FUNCTION TEST
Apply voltage to the solenoid terminals as shown above and check air passages for continuity.
CAUTION: Reversing polarity will damage the solenoid.
^Replace solenoid if it fails above test.

Fig. 174 Solenoid OHM Test:

EGR SOLENOID RESISTANCE TEST
Check the solenoid resistance value with a suitable ohm meter as shown above.
Should be approximately 40 OHMS.
^Replace solenoid if it fails above test.
