Pulsar L4-1597cc 1.6L SOHC (GA16i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Power Supply Testing
Power Supply Testing

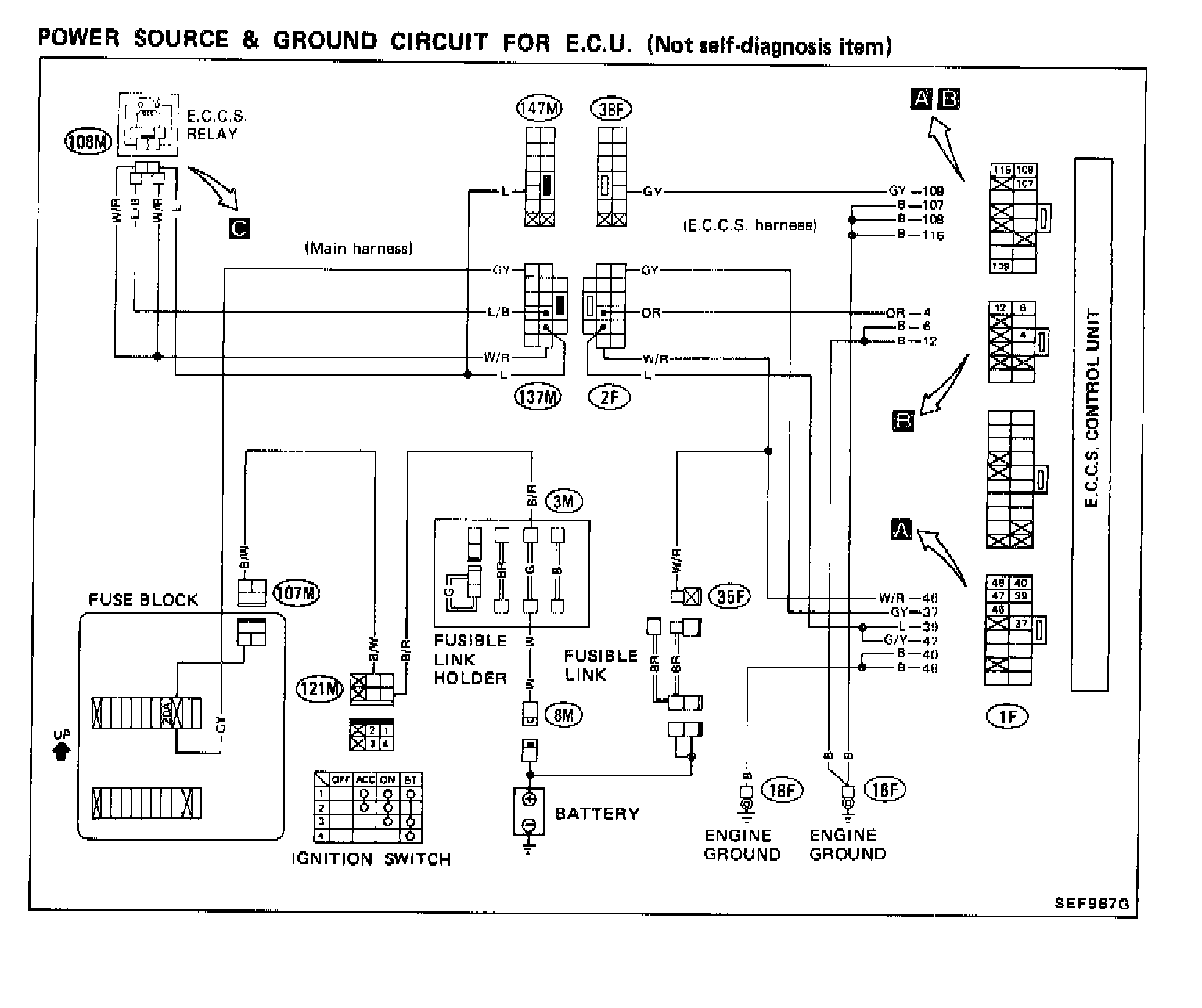

WIRING DIAGRAM

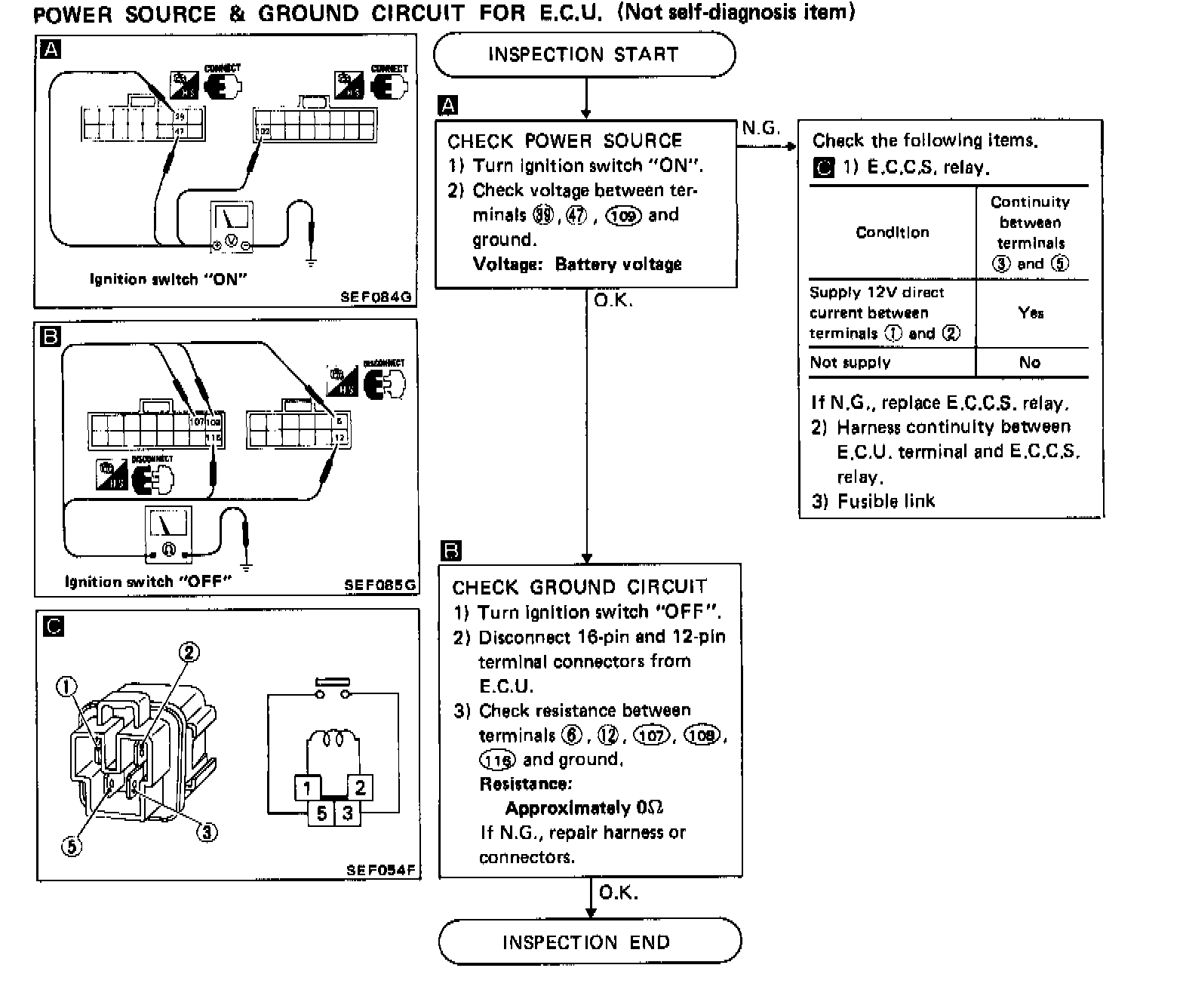

DIAGNOSTIC PROCEDURE
