Mixture Heater Relay Control Circuit
Mixture Heater Relay Control Circuit

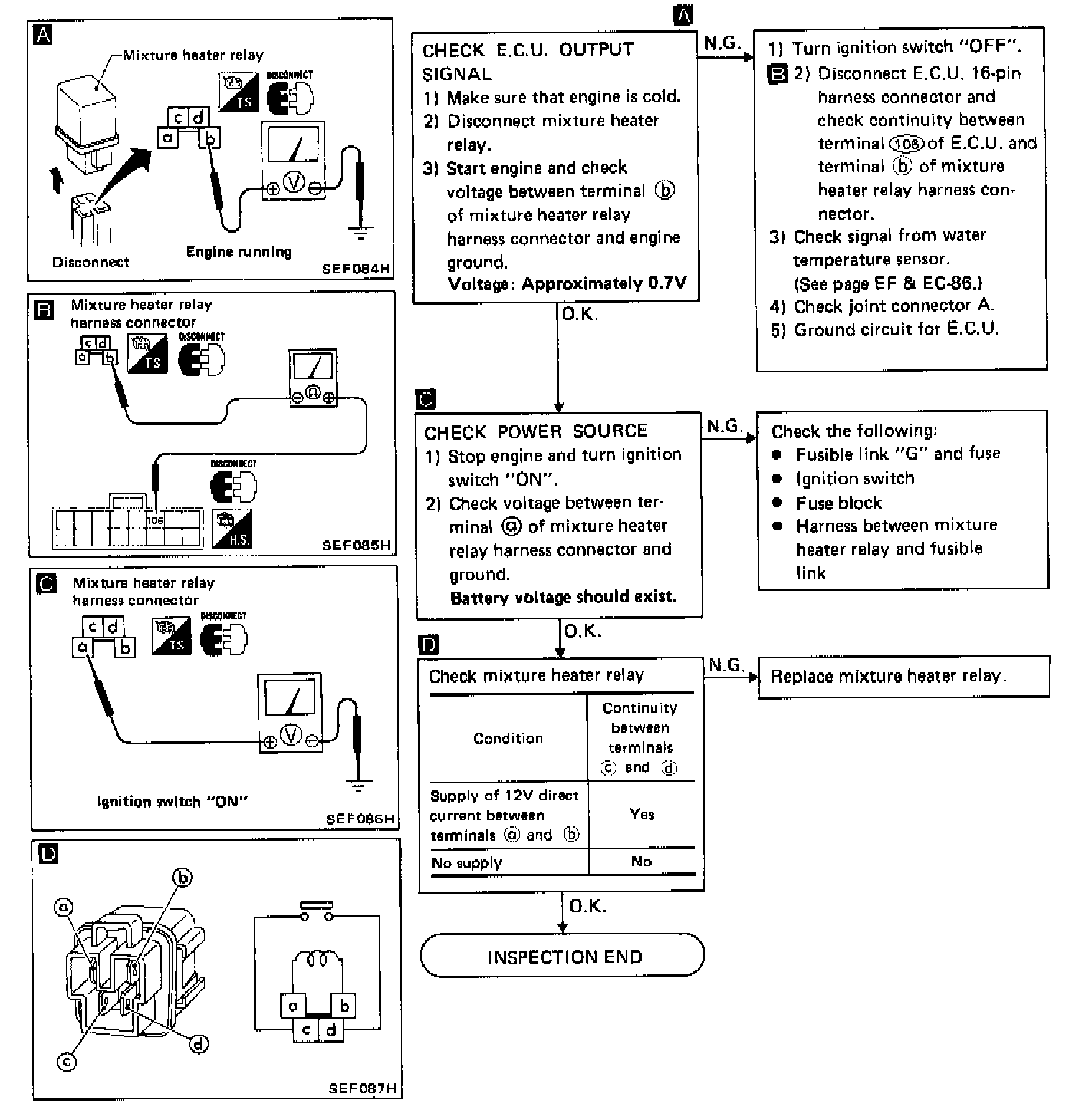

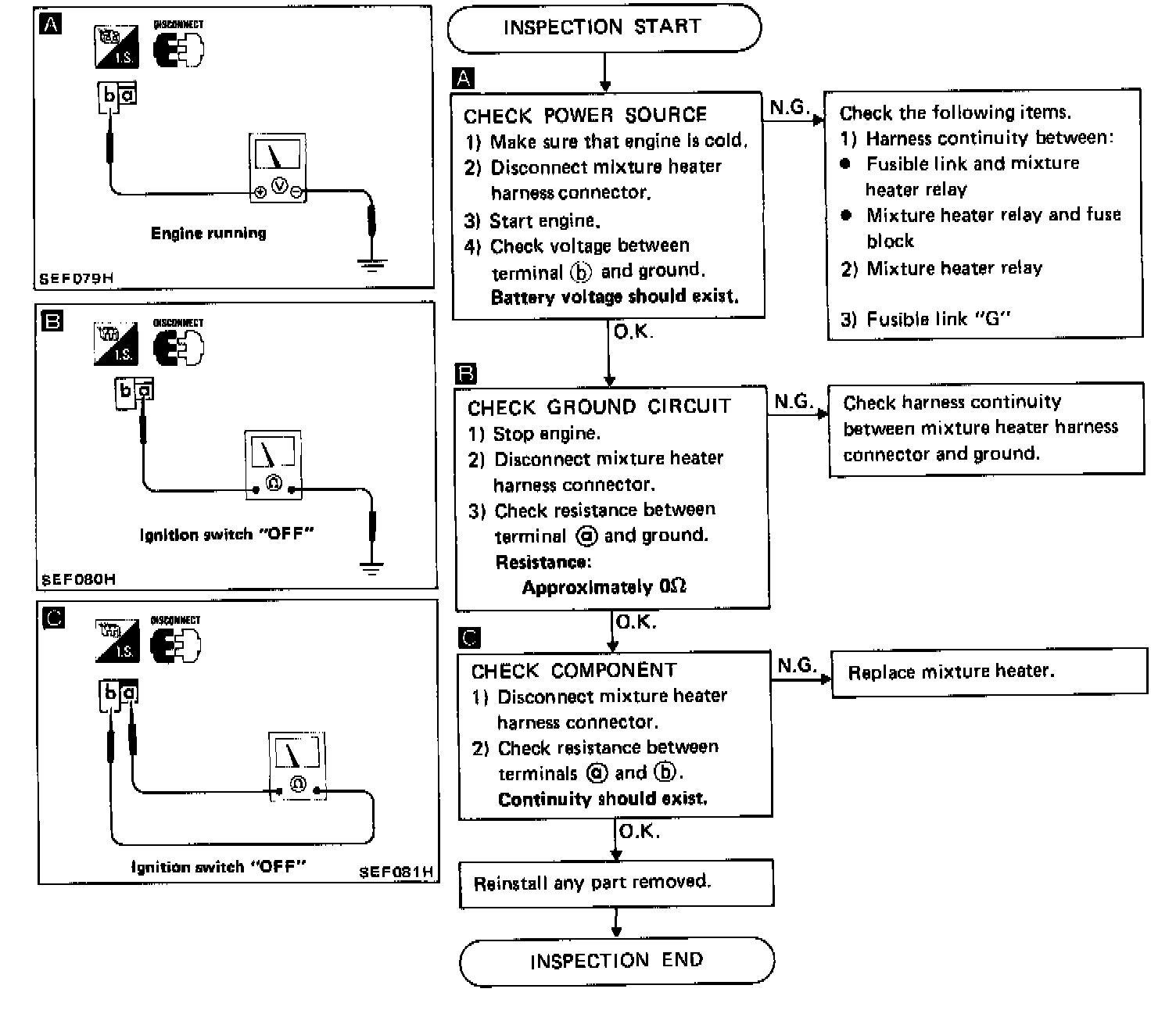

DIAGNOSTIC CHART
WIRING DIAGRAM

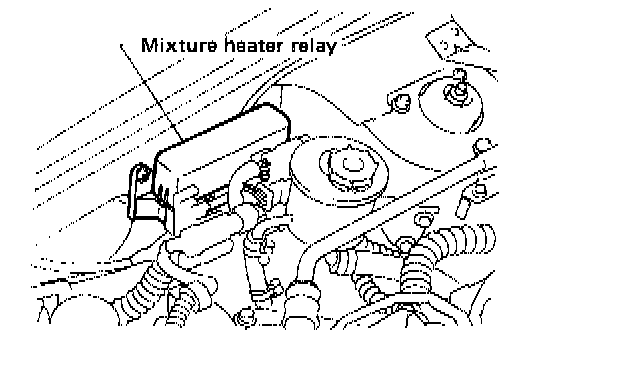

LOCATION
