Mixture Heater Control Circuit
Mixture Heater Control Circuit
DIAGNOSTIC CHART

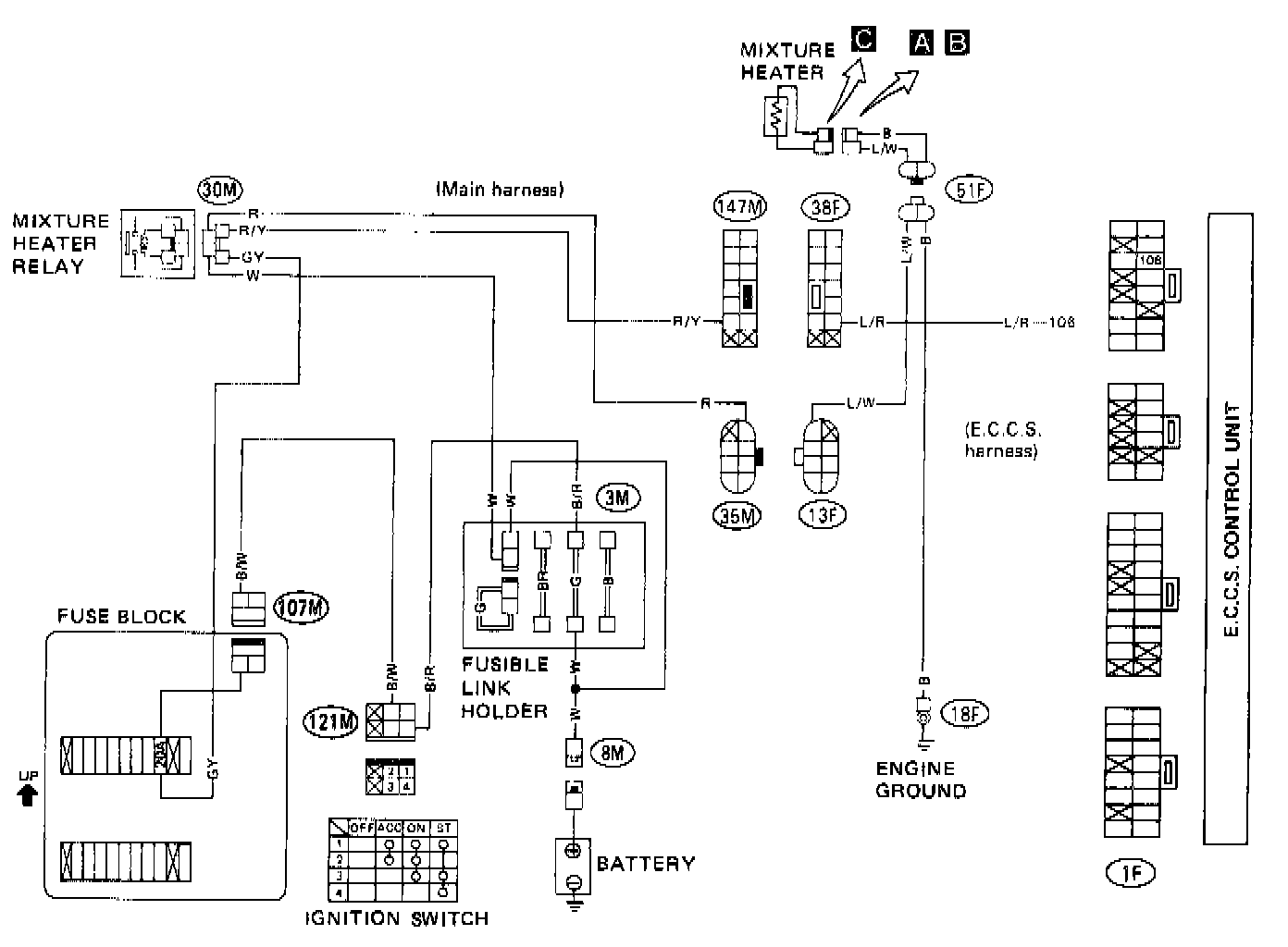

WIRING DIAGRAM

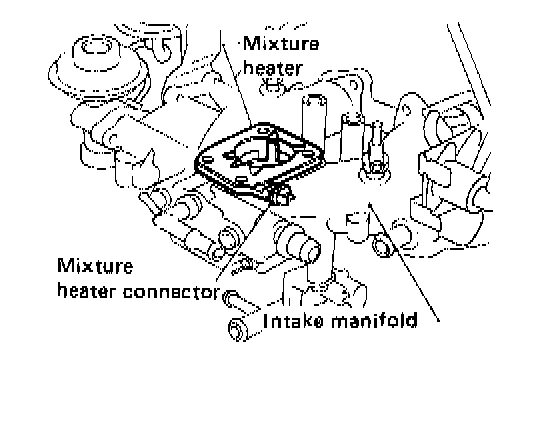

LOCATION
