Nissan-Datsun
>>
1989
>>
Pulsar L4-1597cc 1.6L SOHC (GA16i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

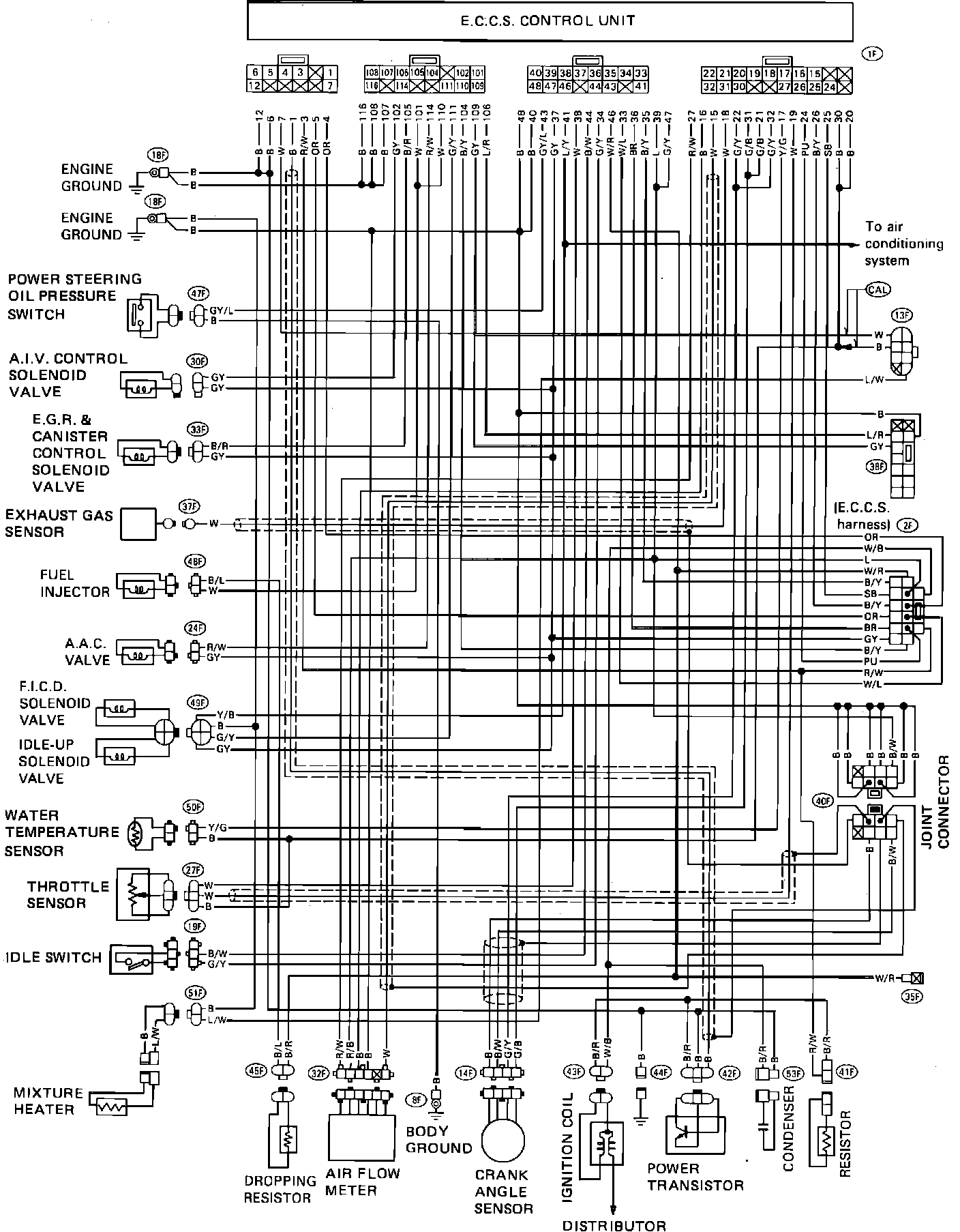

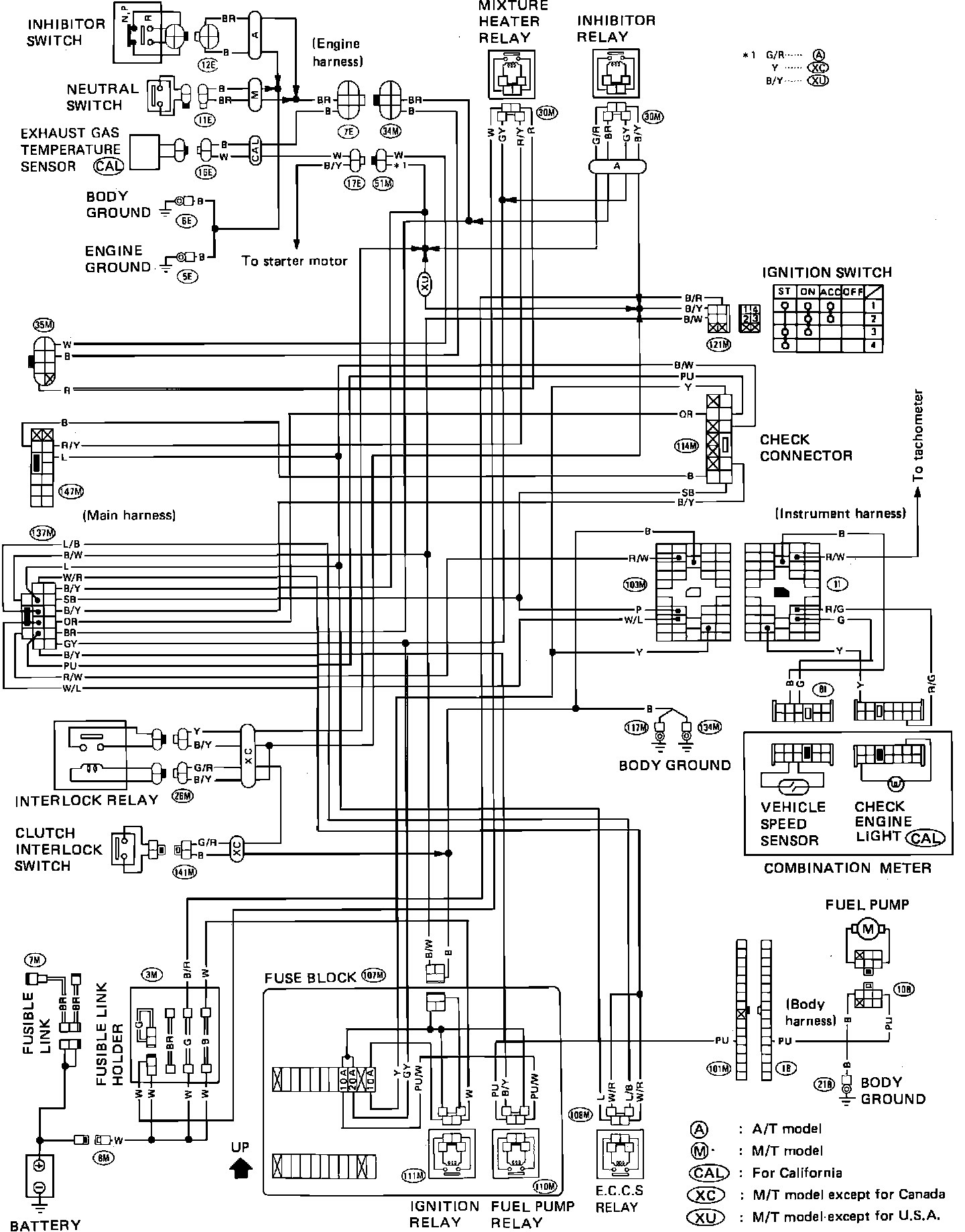

System Wiring Diagram
System Wiring Diagram
ECCS:
ECCS:
