GA16I Engine
GA16I Engine

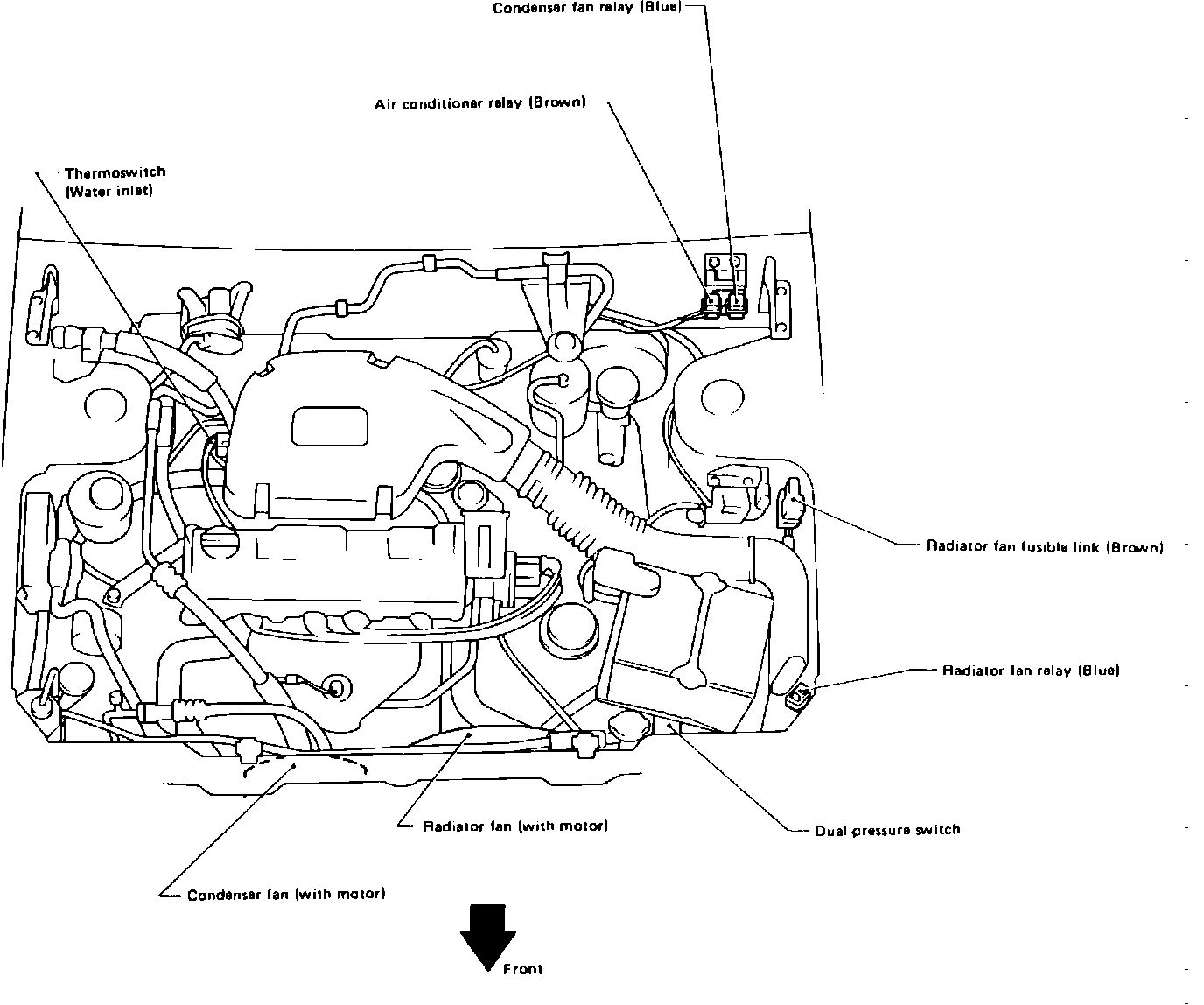

Radiator & Condenser Fan Component Locations.:
LH Front Of Engine Compartment
Applicable to: GA16i Engine
